Verus Engineering Forged Clutch Fork - BRZ/FRS/GT86/GR86
Regular price
$178.83
Share this part with a friend in need!
--------------------------------------------------------------
--------------------------------------------------------------
OVERVIEW
Out of necessity, we had to develop and improve upon the OEM clutch fork. The OE stamped steel units are prone to cracking, bending, and failing in all conditions, from OEM clutches to heavy-duty dual disks. We highly recommend installing our clutch fork anytime the transmission and engine are disconnected as it is inexpensive insurance to solve a prevalent issue within the Subaru community.
Our forged fork was designed utilizing advanced FEA (Finite Element Analysis) to dramatically increase strength, rigidity, and overall longevity. The unit is forged from 4130, heat-treated, and then cryo treated for superior physical properties.
The clutch fork fits a variety of Subaru makes and models; please refer to our fitment chart at the bottom of this page.
Our forged fork was designed utilizing advanced FEA (Finite Element Analysis) to dramatically increase strength, rigidity, and overall longevity. The unit is forged from 4130, heat-treated, and then cryo treated for superior physical properties.
The clutch fork fits a variety of Subaru makes and models; please refer to our fitment chart at the bottom of this page.
--------------------------------------------------------------
FEATURES
- Increase Strength
- Increase Rigidity
- Improve Pedal Feel
- Increase Longevity of Clutch Fork
- OEM Fit and Finish
- Rated for Use in Applications Exceeding 1000 LBS of Pressure Plate Use
--------------------------------------------------------------
SPECIFICATIONS
- FEA Optimized Design
- Forged 4130 Chromoly Steel
- Heat Treated to Hardness of 26-32 HRC
- Cryo-treated for Improved Physical Properties
- Black Oxide Coated for Rust Resistance
--------------------------------------------------------------
SCIENCE

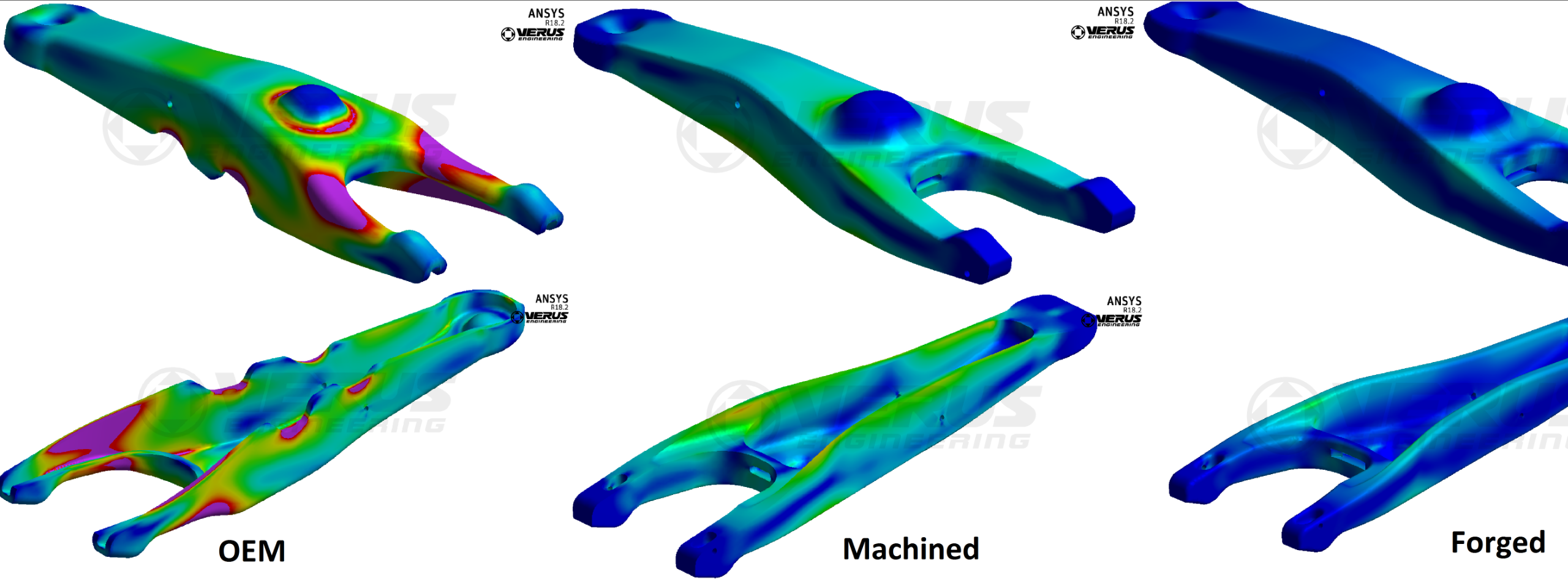

As shown above, you can see the severe decrease of stress concentrations moving from OEM to machined, to finally forged. All graphs are set the exact same, with yield strength at the limit of the color code (red). Warmer colors, like red and purple, show areas over yield strength. The cooler colors, like deep blue, represent areas of low stress. The Verus Engineering clutch fork has improved again in strength as a result of the forging process when compared to the machined and OE component. This will ultimately mean a longer and better life out of your driveline components, including your clutch, transmission, and of course your clutch fork.
--------------------------------------------------------------
WHAT IS INCLUDED
- Forged Clutch Fork
--------------------------------------------------------------
PART NUMBER: A0092A
--------------------------------------------------------------
