OVERVIEW

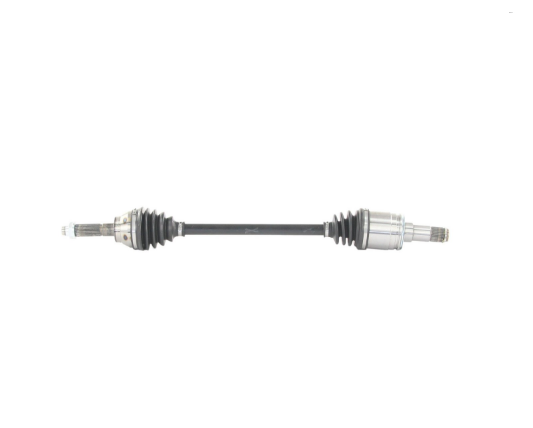

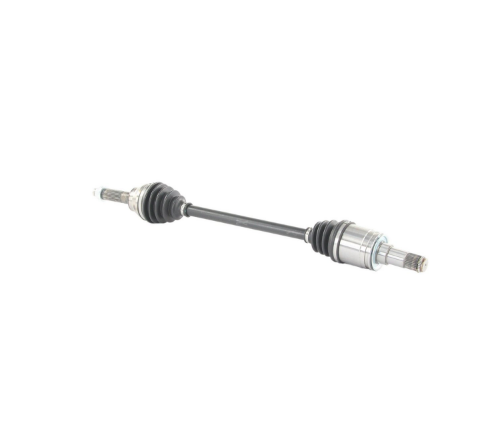

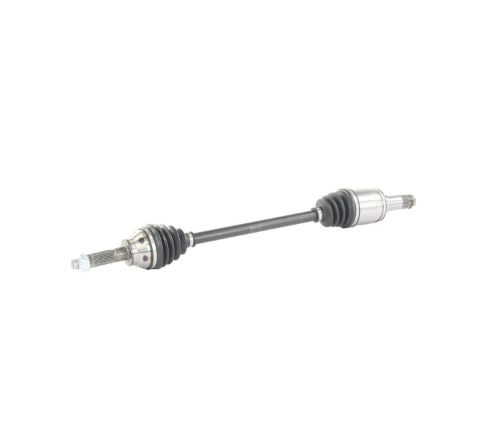

Eliminate drivetrain clicking noises, rotational vibration, and power transfer loss with the TrakMotive Rear CV Axle Shaft Assembly for the 2013-2020 Scion FR-S, Subaru BRZ, and Toyota 86 (ZN6/ZC6 chassis). Built from 100% brand-new components—never remanufactured—TrakMotive CV axles feature heat-treated solid steel center shafts, precision machine-ground cages, races, and bearings for exceptional durability under heavy acceleration. Equipped with premium neoprene boots and stainless steel clamps to prevent grease leaks and contamination, this axle offers a direct-fit replacement for the rear left or rear right position.

FEATURES

• 100% Brand New Components: Manufactured with all-new heat-treated steel shafts, cages, and bearings for maximum strength and long service life.
• High-Grade Neoprene Boots: Assembled with durable CR neoprene dust boots and stainless steel boot clamps to resist cracking and seals out moisture and road debris.
• Precision Machine Ground: Machine-ground inner and outer CV joint races ensure smooth articulation and noise-free operation.
• Complete Hardware Included: Comes complete with a new stake-type replacement axle nut and spring steel retaining clips for a simple, trouble-free installation.

SPECIFICATIONS

• Brand Line: TrakMotive
• Position: Rear Left (Driver) or Rear Right (Passenger)
• Overall Compressed Length: 31.14 in (791 mm)
• Inboard Spline Count: 30 Splines (Male Joint)
• Outboard Spline Count: 27 Splines (Male Joint)
• Axle Nut Thread & Size: M22x1.5 (31.8 mm / 1.25 in Hex)
• Boot Material: CR Neoprene

WHAT IS INCLUDED

• 1x TrakMotive Rear CV Axle Assembly
• 1x M22x1.5 Stake-Type Axle Nut
• 1x Pre-Installed High-Temp Synthetic Grease & Retaining Clip Set

FITMENT

Vehicle Applications:

• 2013-2016 Scion FR-S (2.0L FA20 Engine - Manual & Automatic)
• 2013-2020 Subaru BRZ (2.0L FA20 Engine - Manual & Automatic)
• 2017-2020 Toyota 86 / GT86 (2.0L FA20 Engine - Manual & Automatic)

Replaces the Following OEM Part Numbers:

• Subaru / Toyota: 28421CA000, 28421-CA000
• Interchange Numbers: SB-8106, SB8106, 60-8188, NCV66014
