OVERVIEW

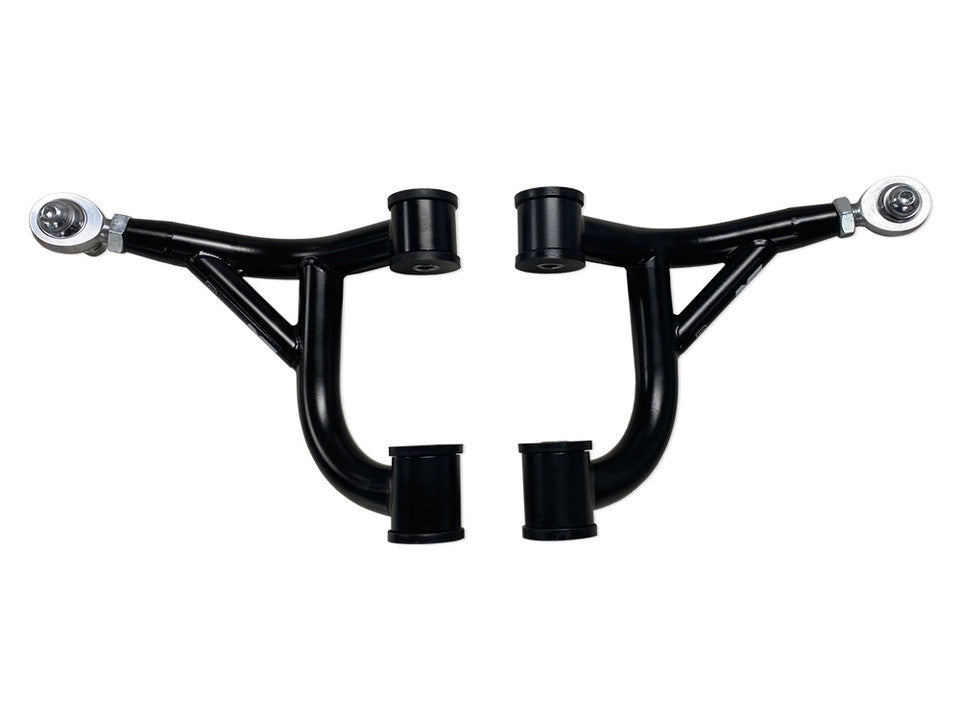

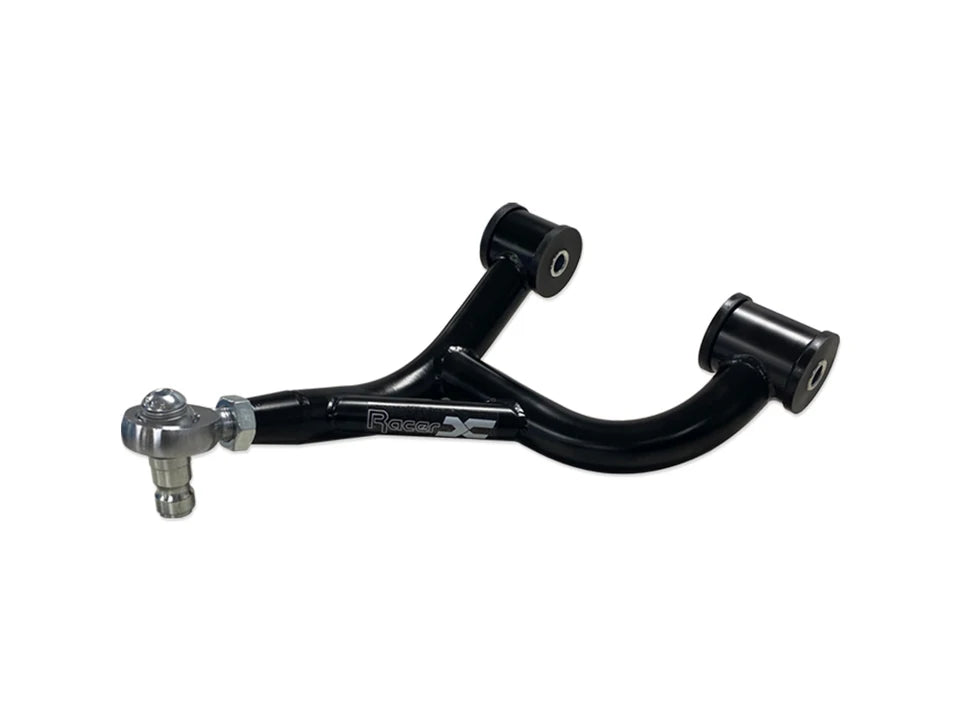

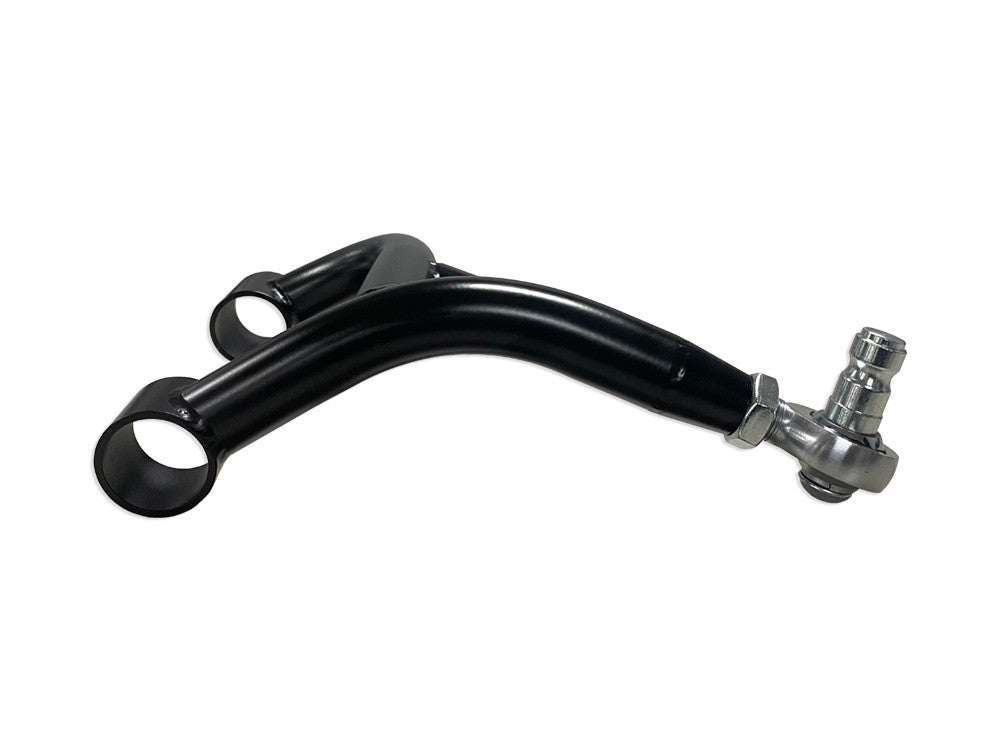

Achieve precise rear alignment tuning with the Racer X Fabrication Rear Upper Control Arms for the 2013-2020 Scion FR-S, Subaru BRZ, and Toyota GT86. Engineered specifically to solve rear camber adjustment limitations on lowered or track-driven vehicles, the pivot geometry minimizes toe changes during camber adjustment, simplifying wheel alignment setup.

Constructed from ultra-strong 4130 chromoly steel tubing, these control arms deliver a substantial weight savings of 4 lbs per side (8 lbs total unsprung weight reduction across the rear suspension). High-durometer urethane bushings with zinc-plated steel inserts reduce unwanted arm deflection for immediate suspension response, while a durable satin black powder coat finish provides long-term corrosion resistance.

FEATURES

• Significant Unsprung Weight Reduction: Saves 4 lbs per control arm (8 lbs total rear suspension weight reduction).
• 4130 Chromoly Construction: Built from seamless 4130 chromoly steel tubing for maximum yield strength and rigidity.
• Minimized Toe Drift: Pivot design isolates camber adjustments to minimize unwanted impact on rear toe settings.
• Low-Deflection Urethane Bushings: Firm urethane bushings and zinc-plated inserts eliminate factory rubber flex.
• Corrosion-Resistant Finish: Finished in satin black powder coat for durability in harsh environments.

• Camber Range Selection:
  • +1 to -4 degrees
  • -4 to -9 degrees
  • -9 to -14 degrees

WHAT IS INCLUDED

• 2x 4130 Chromoly Rear Upper Control Arms
• 4x High-Durometer Urethane Bushings
• 2x Spherical Rod Ends
• 2x CNC Machined Taper Studs
• 2x 1/2" Grade 8 Bolts for Studs

SPECIFICATIONS

• Part Number: 020402-14
• Material: 4130 Chromoly Steel Tubing
• Bushing Type: High-Durometer Urethane with Zinc-Plated Inserts

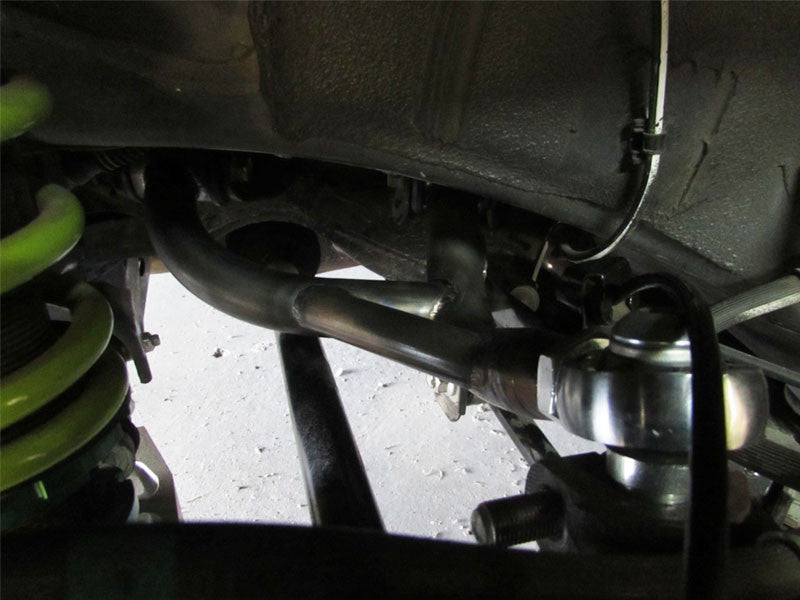

• Installation Time: 1.5–2 Hours
• Difficulty: Moderate (Alignment required after installation)

FITMENT

• 2013–2020 Toyota GT86 (ZN6)
• 2013–2020 Subaru BRZ (ZC6)
• 2013–2020 Scion FR-S (ZN6)

WARNING: California Proposition 65 — This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Intended for competition / off-road use only.
