OVERVIEW

The Racer X Fabrication HD Rear End Links for the 2013-2020 Scion FR-S / Subaru BRZ / Toyota GT86 are engineered to eliminate squishy factory rubber bushings, significantly improving rear sway bar responsiveness, roll resistance, and driver feedback.

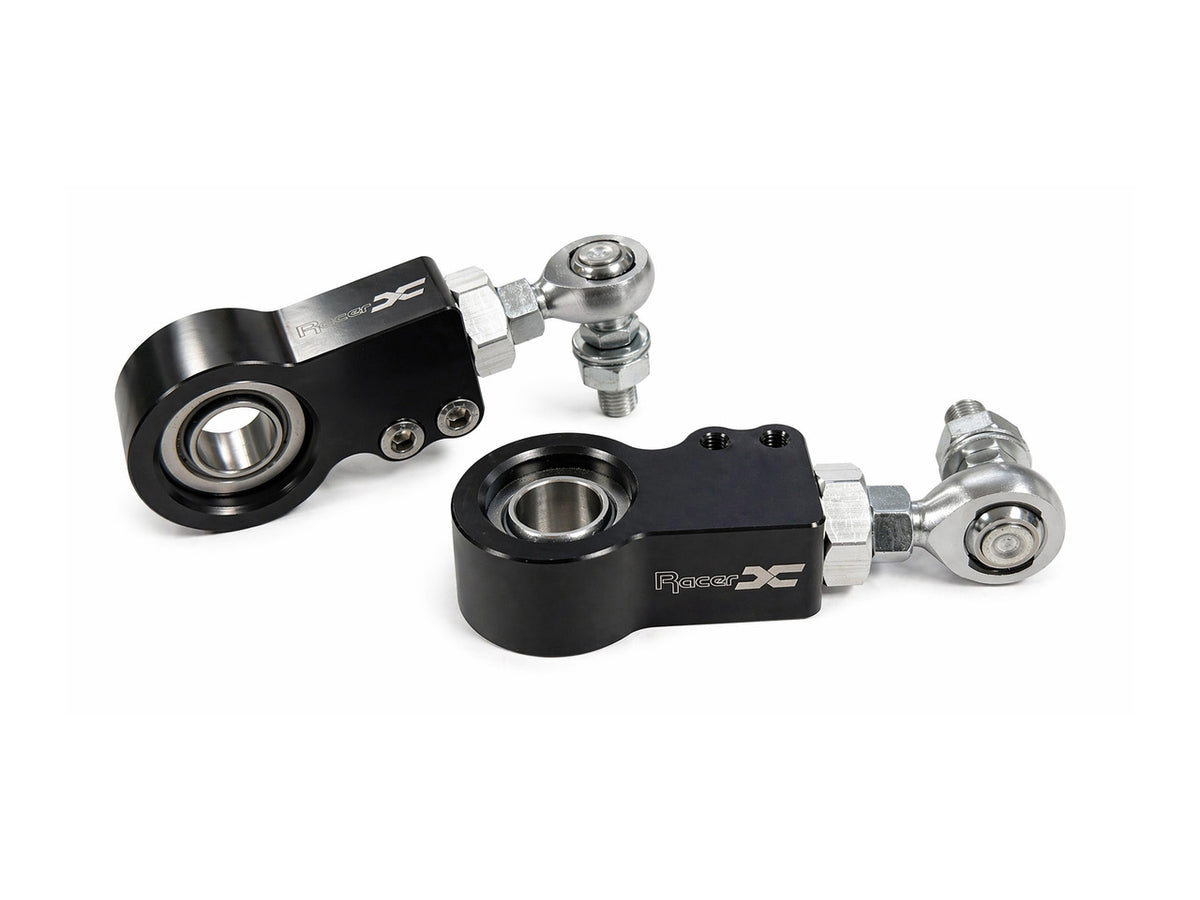

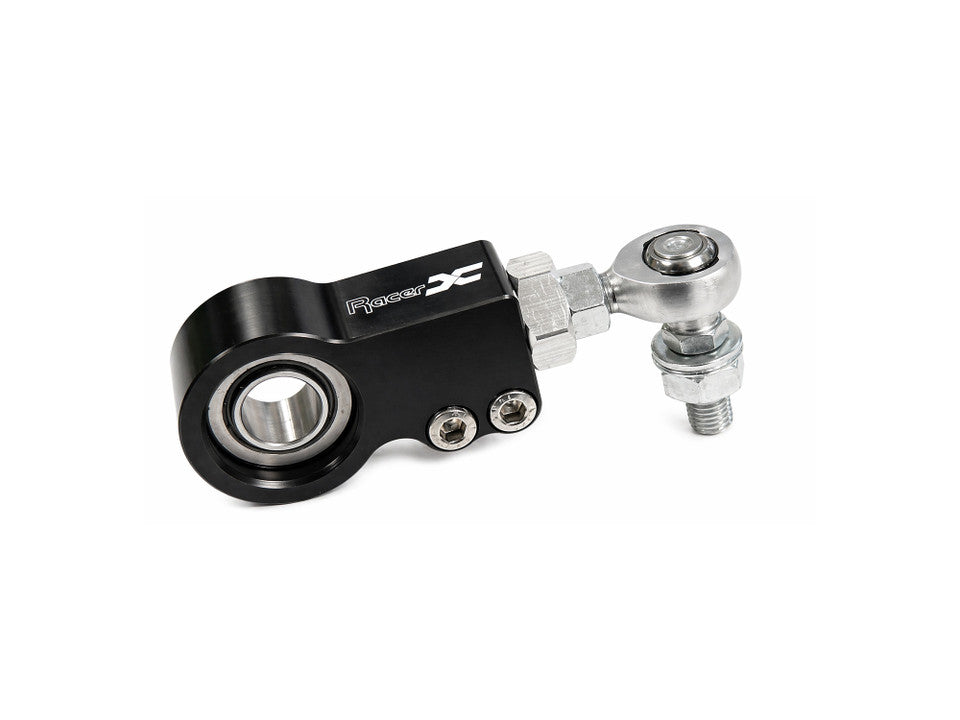

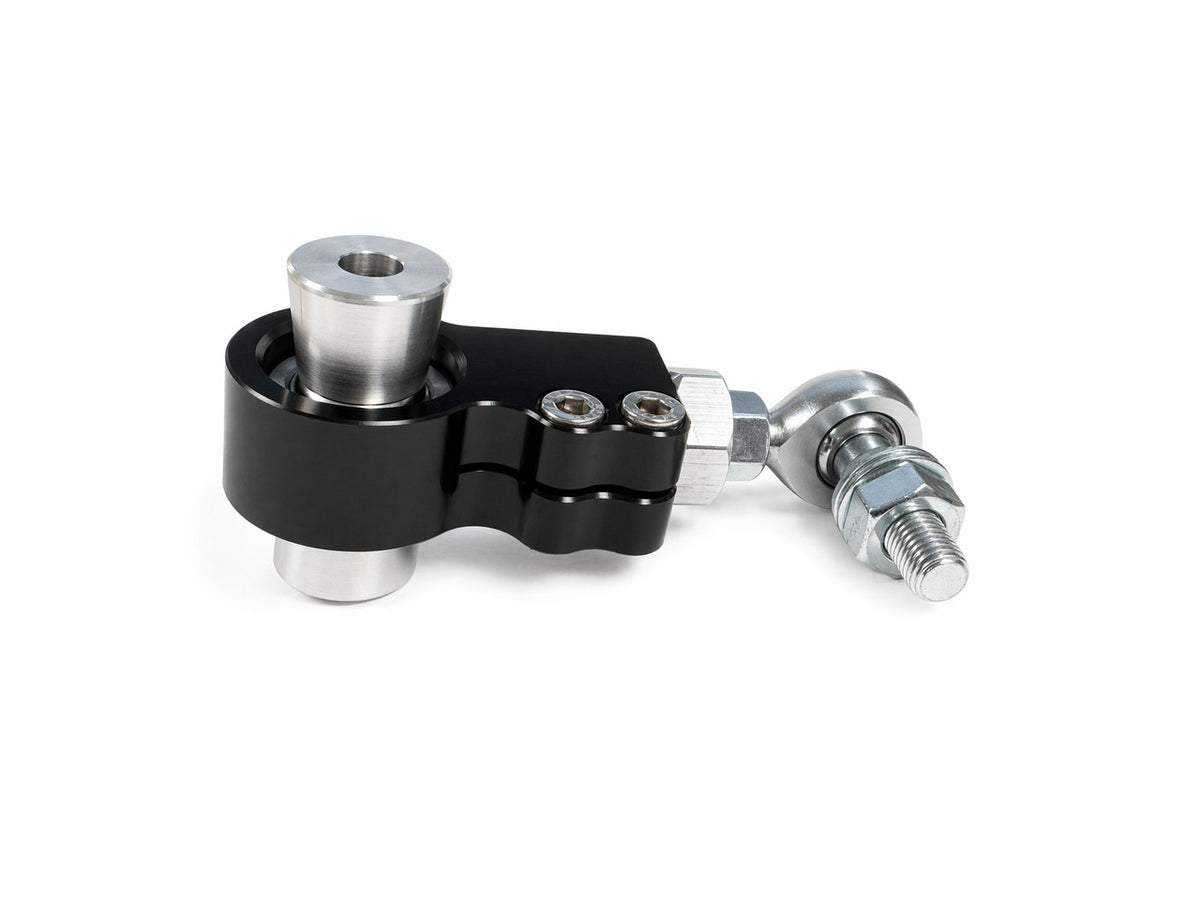

Featuring a enlarged CNC-machined 6061-T6 aluminum body, these end links provide a massive increase in structural rigidity and durability compared to standard hex stock designs. Each assembly features a large spherical bearing paired with a studded heim joint, while a double-adjuster design with pinch-bolt locking mechanisms permits easy on-car length adjustments. Tested to withstand over 8,000 lbs of axial force, they easily handle extreme cornering loads with both OEM and aftermarket rear sway bars.

FEATURES

• Heavy-Duty CNC Machined Body: Thick 6061-T6 aluminum construction delivers maximum rigidity and long-term durability.
• Spherical & Studded Heim Joint Design: Eliminates OEM rubber bushing deflection for immediate suspension response.
• On-Car Double Adjuster: Allows quick and simple length adjustments with a pinch-bolt design that firmly locks settings.
• Proven 8,000+ lbs Force Capacity: Tested on an in-house universal testing machine to exceed any induced sway bar load.
• Universal Sway Bar Compatibility: Fully compatible with both factory and aftermarket upgraded rear sway bars.
• Corrosion-Resistant Finish: Anodized black with zinc-plated hardware for lasting performance.

WHAT IS INCLUDED

• (2) Racer X HD Rear End Links
• (4) Aluminum Bushings

SPECIFICATIONS

• Part Number: 020406
• Material: 6061-T6 Aluminum / Zinc-Plated Hardware
• Installation Time: 30 minutes
• Difficulty: Beginner

FITMENT

• 2013-2020 Scion FR-S (ZN6)
• 2013-2020 Subaru BRZ (ZC6)
• 2013-2020 Toyota GT86 (ZN6)

WARNING: California Proposition 65 — This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Intended for competition / off-road use only.
