Racer X Fuel Rail Kit – 2013-2020 Toyota GT86 / Subaru BRZ / Scion FR-S (ZN6 / ZC6)
Share this part with a friend in need!
OVERVIEW
The Racer X Fabrication fuel rail kit for the 2013-2020 Scion FR-S / Subaru BRZ / Toyota GT86 is engineered to deliver adequate fuel volume to high-horsepower and modified FA20 engines when the factory fuel rails fall short.

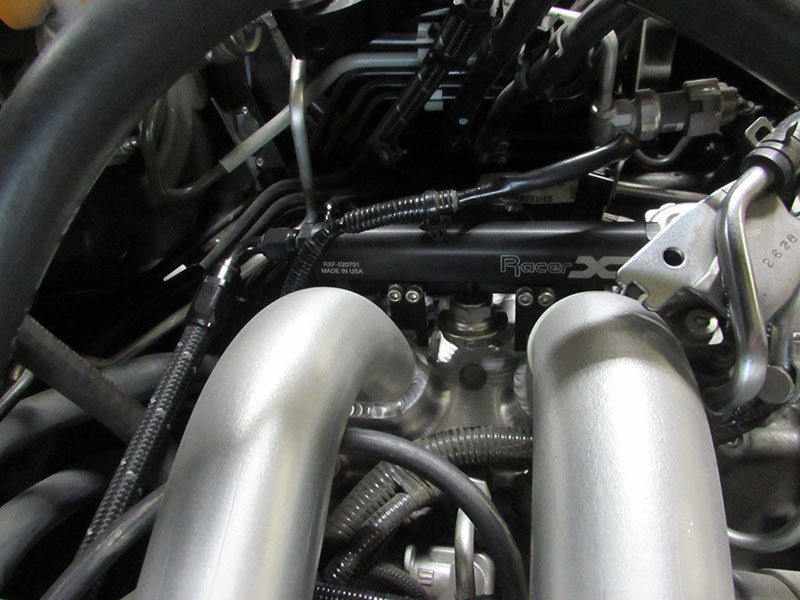

Featuring a unique design equipped with an integrated injector driver bracket, this kit offers a true no-cutting solution for a clean and straightforward installation. Each rail is precision CNC-machined to retain the OEM fuel rail dampers and factory alignment tabs, preserving correct injector spray pattern orientation. Machined with O-ring sealing grooves and standard AN fitting threads, the system provides a leak-free seal and easy adaptability for upgraded fuel lines.
FEATURES

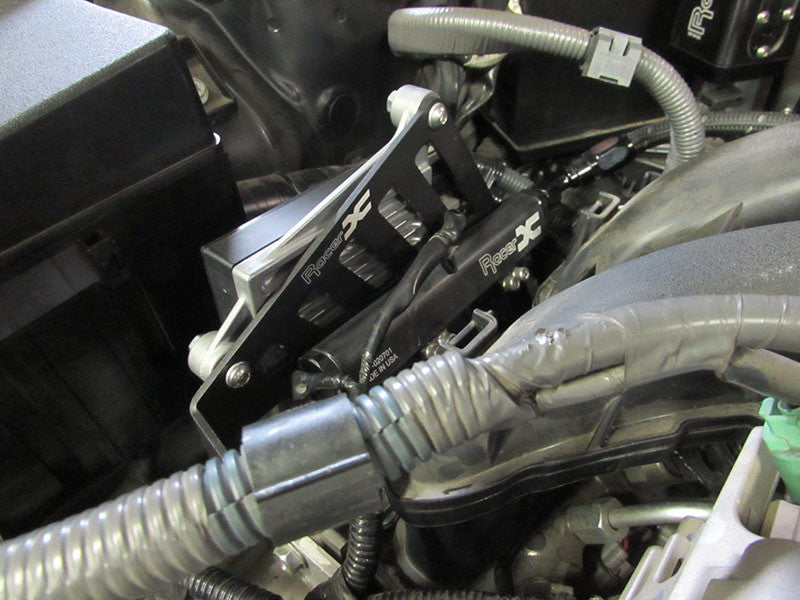

- No-Cut Installation: Includes a dedicated injector driver bracket for a true bolt-on installation without permanent modifications.
- OEM Damper & Alignment Tab Retention: Maintains factory fuel pulse dampers and correct injector mounting angle to preserve stock spray patterns.
- O-Ring Sealed Fitting Grooves: Machined O-ring ports ensure maximum seal integrity under high fuel pressures.
- AN Fitting Compatibility: Equipped with 6AN to 8AN adapter fittings, permitting convenient line sizing and expansion.
- Anodized Finish: Rails come standard in black anodize for optimal corrosion protection and engine bay aesthetics.
WHAT IS INCLUDED

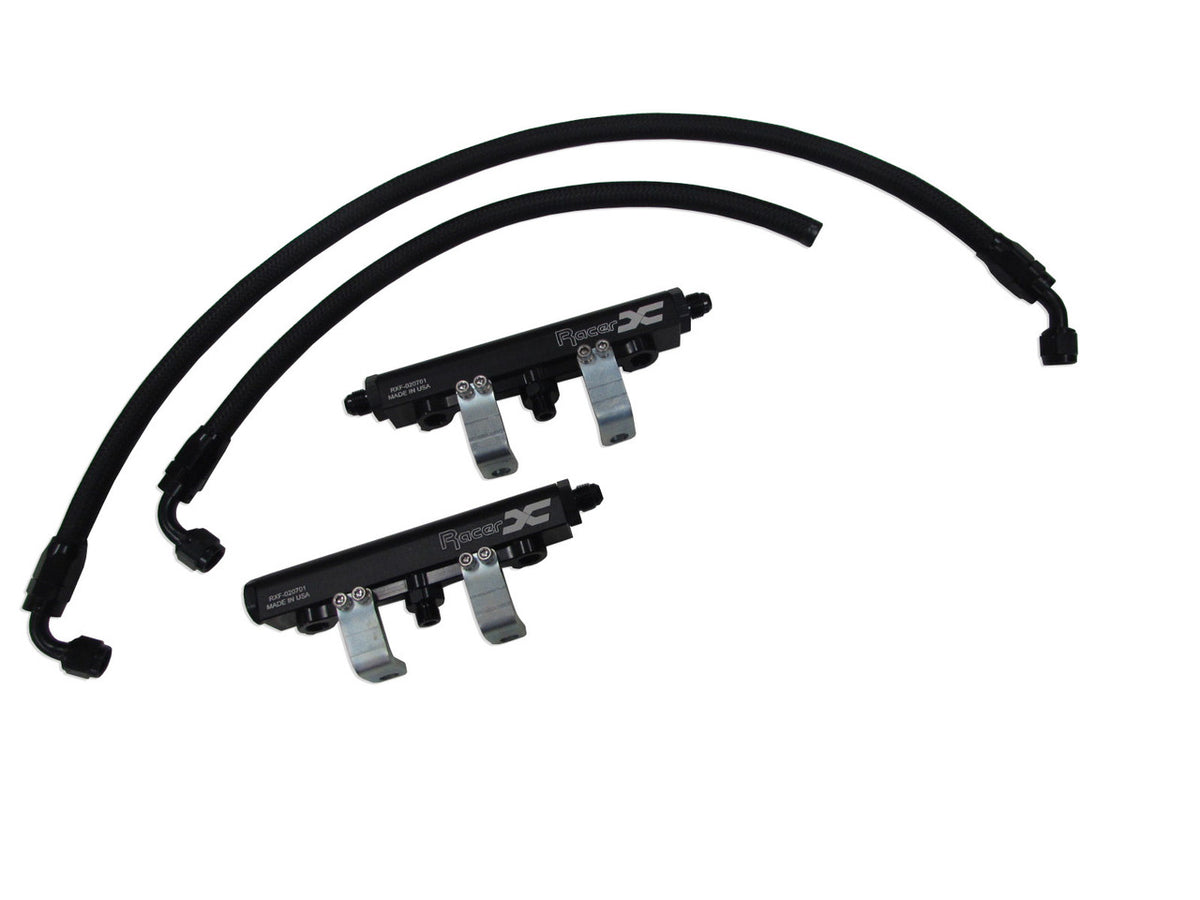

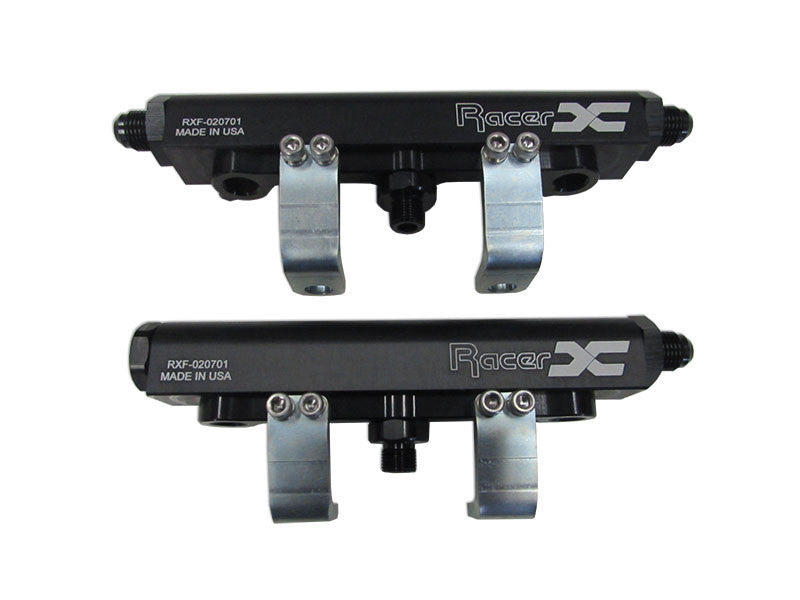

- (2) CNC Machined Black Anodized Fuel Rails
- (4) Rail Mounting Brackets
- (8) M5 Stainless Steel Allen Head Bolts & Washers
- (3) 6AN to 8AN Adapter Fittings
- (1) 8AN Port Plug
- (2) OEM Fuel Rail Damper Fittings
- (2) M6 Bolts
- (2) Pre-Assembled AN Fuel Lines & Fittings (Optional)
SPECIFICATIONS
- Part Number: 020701
- Material: CNC Machined Aluminum
- Fitting Sizes: 6AN / 8AN
- Installation Time: 1 - 2 Hours
- Difficulty: Moderate (Note: ECU mounting bracket is not included)
FITMENT
- 2013-2020 Scion FR-S (ZN6)
- 2013-2020 Subaru BRZ (ZC6)
- 2013-2020 Toyota GT86 (ZN6)
