OVERVIEW

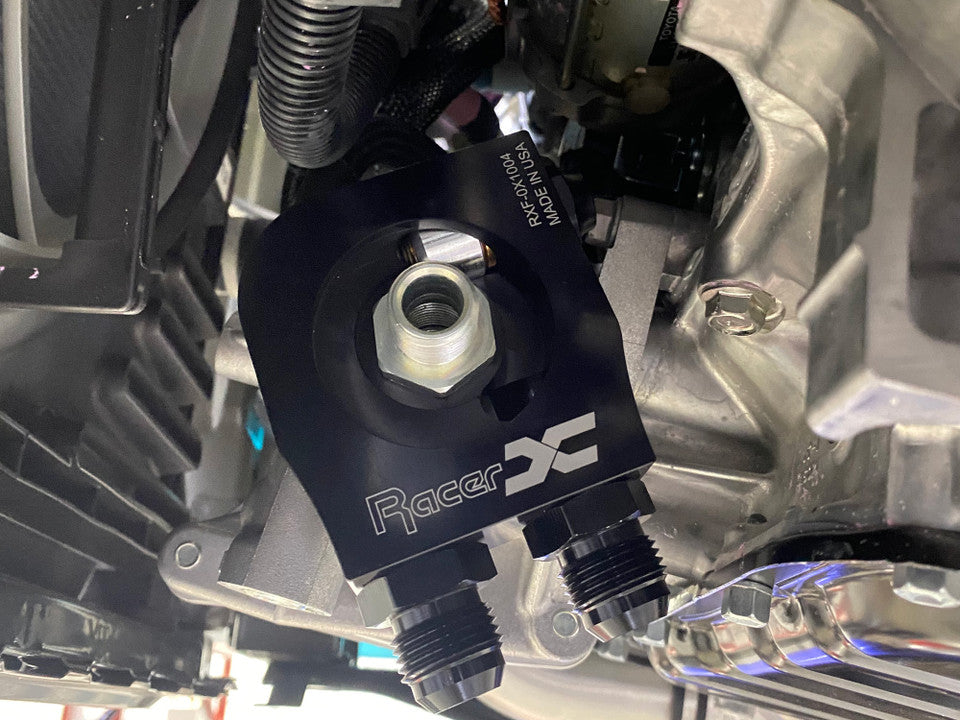

Build a custom external oil cooling system for your G16E-GTS engine with the Racer X Fabrication Thermostatic Oil Adapter Plate for the 2023+ Toyota GR Corolla. Designed as an essential foundation for custom oil cooler setups, this sandwich plate installs between your engine block and the factory oil filter housing to redirect oil flow to an external core while protecting against overcooling during cold starts.

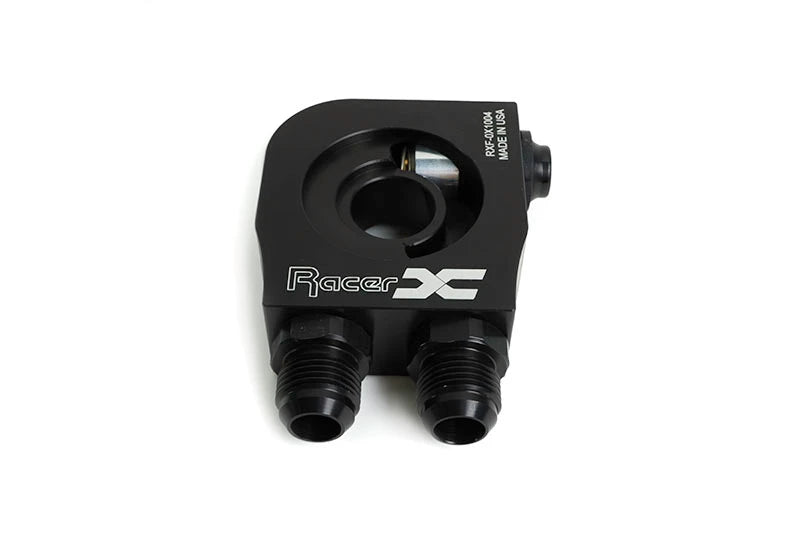

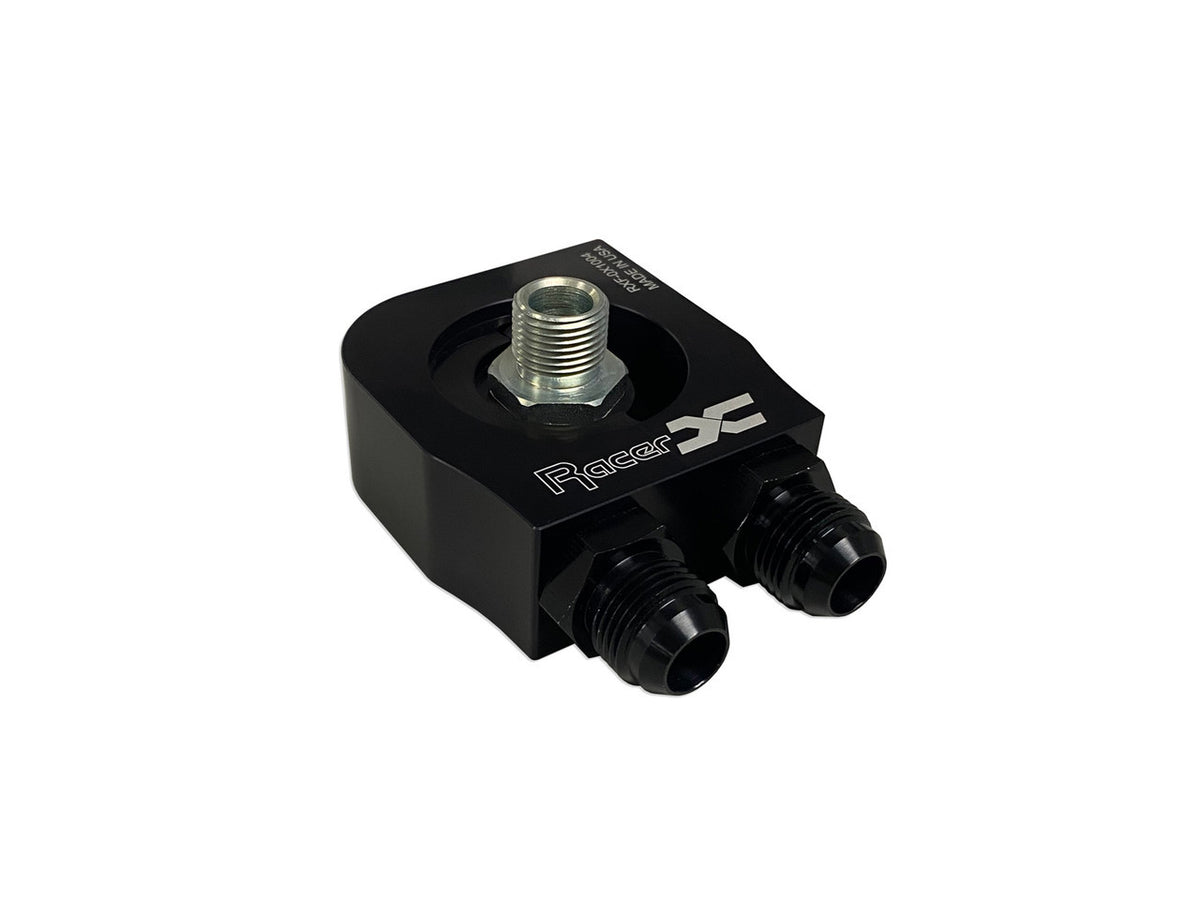

CNC-machined in the USA from 6061-T6 billet aluminum, the adapter plate features an integrated 185°F internal thermostat. This allows your engine oil to rapidly reach normal operating temperature before opening to route fluid through an external cooler. Sealed with a custom square-profile O-ring for leak-free reliability, the kit includes a 3/4"-16 threaded center adapter stem that retains the factory oil filter thread size and filter position.

FEATURES

• Integrated 185°F Thermostat: Keeps oil diverted away from the external cooler until engine oil reaches proper operating temperatures.
• Billet 6061-T6 Construction: Precision CNC-machined aluminum body with a sleek, durable black anodized finish for maximum corrosion resistance.
• Square-Profile O-Ring Seal: High-temperature rubber square seal ensures superior surface contact and leak prevention under high oil pressure.
• Retains Factory Oil Filter Threading: Includes a 3/4"-16 threaded adapter stem that allows direct mounting of standard oil filters.
• Ideal for Custom Builds: Perfect modular component for owners building a custom oil cooler setup or expanding an existing system.

WHAT IS INCLUDED

• 1x Racer X Billet Thermostatic Sandwich Adapter Plate (with internal 185°F thermostat)
• 1x 3/4"-16 Threaded Center Adapter Fitting

SPECIFICATIONS

• Part Number: 0X1004-GRC
• Material: CNC 6061-T6 Billet Aluminum
• Thermostat Rating: 185°F (85°C)
• Center Thread Fitting: 3/4"-16
• Finish: Anodized Black
• Installation Time: ~15 Minutes
• Difficulty: Very Easy

FITMENT

• 2023+ Toyota GR Corolla (G16E-GTS)

WARNING: California Proposition 65 — This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Intended for competition / off-road use.
