Racer X Fabrication Billet Oil Catch Can Kit – 2023+ Toyota GR Corolla (LHD Only)

$189.00

Share this part with a friend in need!

Racer X Fabrication Logo

OVERVIEW

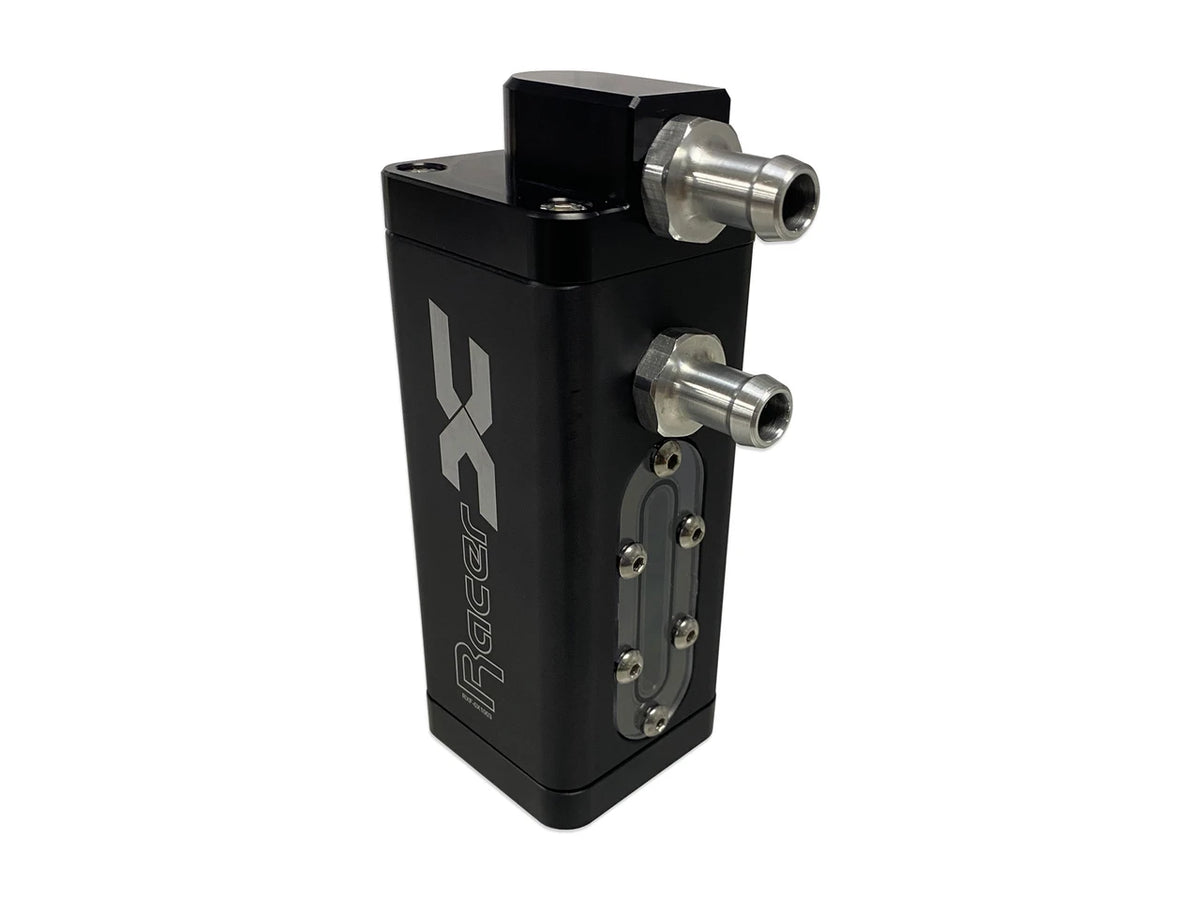

Protect your G16E-GTS engine from harmful blow-by with the Racer X Fabrication Oil Catch Can Kit for the Toyota GR Corolla. Designed to intercept oil mist and fuel vapors from the PCV stream, this air-oil separator prevents carbon buildup on intake valves and ensures cleaner combustion under high boost conditions.

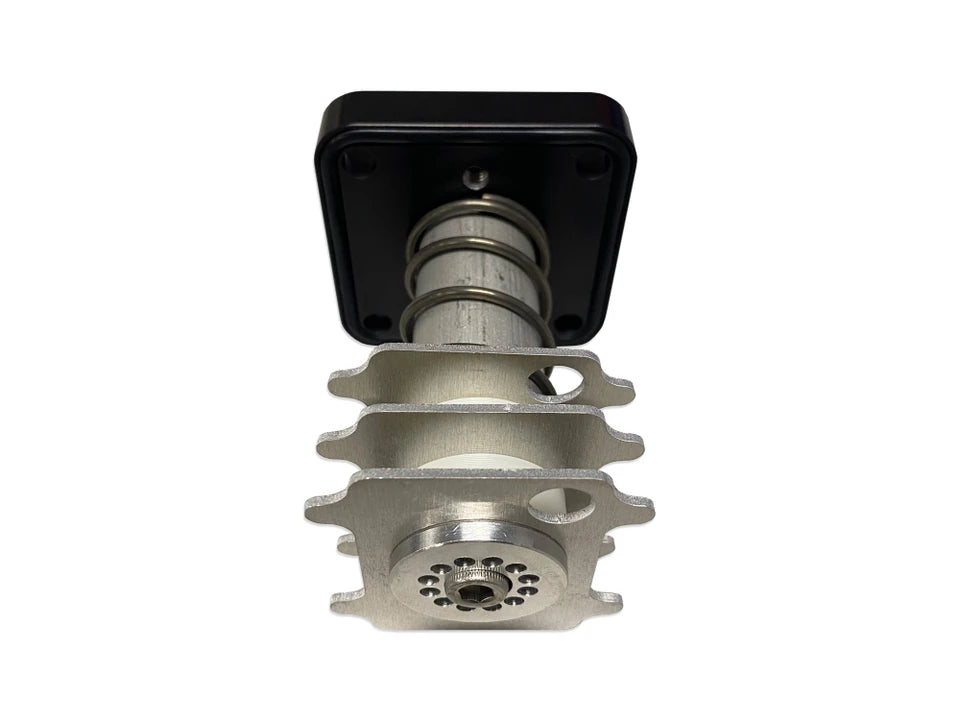

Developed using extensive Computational Fluid Dynamics (CFD) analysis and real-world road testing, the catch can utilizes an internal multi-stage baffle system with offset perforation patterns. As incoming vapor enters, it is forced into a high-efficiency cyclonic swirl pattern that condenses oil droplets out of the air stream before clean air exits back into the intake system. Equipped with a built-in fluid sight glass and a lower stainless steel mini ball valve, checking and draining collected fluids is quick and mess-free.



FEATURES

  • CFD-Engineered Cyclonic Baffling: Multi-plate internal filtration creates a swirling air-oil separation effect to trap blow-by without restricting crankcase ventilation.
  • Integrated Fluid Sight Glass: Clear exterior window allows quick visual checks of oil accumulation without disassembling the reservoir.
  • Bottom-Drain Ball Valve: High-grade stainless steel mini ball valve makes servicing fast, clean, and convenient.
  • Billet 6061-T6 Construction: CNC-machined canister and direct-fit mounting bracket designed specifically for the GR Corolla engine bay.
  • Complete Plug-and-Play Kit: Includes oil-resistant hoses, O-ring boss (ORB) fittings, bracket, and mounting hardware.



WHAT IS INCLUDED

  • 1x Fully Assembled Racer X Catch Can Assembly with Sight Glass
  • 1x Stainless Steel Drain Ball Valve
  • 1x GR Corolla Direct-Fit Vehicle Mounting Bracket
  • 2x O-Ring Boss (ORB) Fittings
  • 1x Section of Oil-Resistant PCV Hose
  • 2x M8 Mounting Bolts and Washers

SPECIFICATIONS

  • Part Number: 0X1003-GRC
  • Material: 6061-T6 Billet Aluminum Body / Stainless Hardware
  • Drain Mechanism: Stainless Steel Mini Ball Valve
  • Installation Time: 30–60 Minutes
  • Difficulty: Easy

FITMENT

  • 2023+ Toyota GR Corolla (G16E-GTS — Left-Hand Drive / LHD Models Only)

WARNING: California Proposition 65 — This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Intended for competition / off-road use.
