Racer X Fabrication Adjustable Heavy-Duty Rear End Links – 2023+ Toyota GR Corolla
Share this part with a friend in need!
OVERVIEW
Eliminate sway bar deflection and cornering delay with the Racer X Fabrication Adjustable Rear End Links for the Toyota GR Corolla. Designed to replace soft factory rubber end link bushings, these heavy-duty rear end links improve rear suspension response, chassis feedback, and sway bar efficiency during aggressive cornering and track sessions.

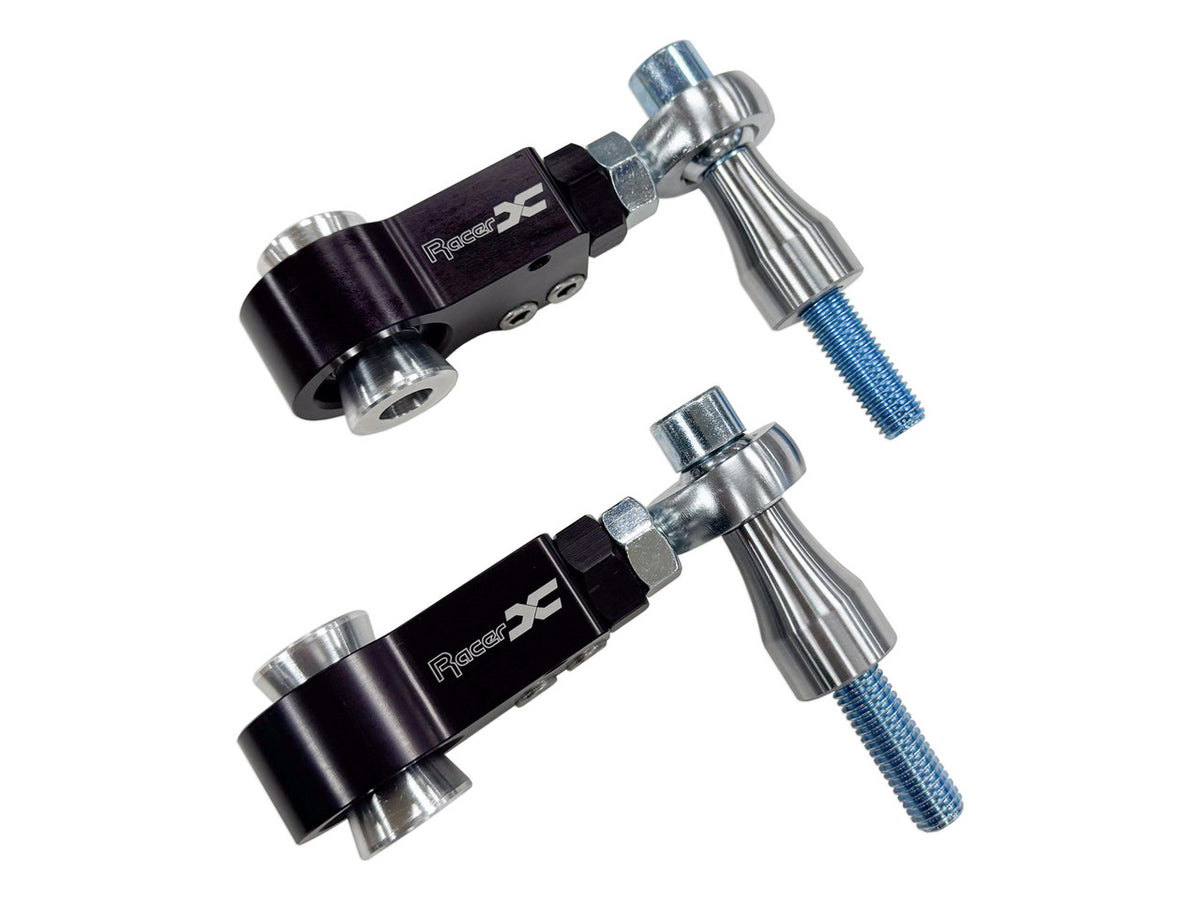

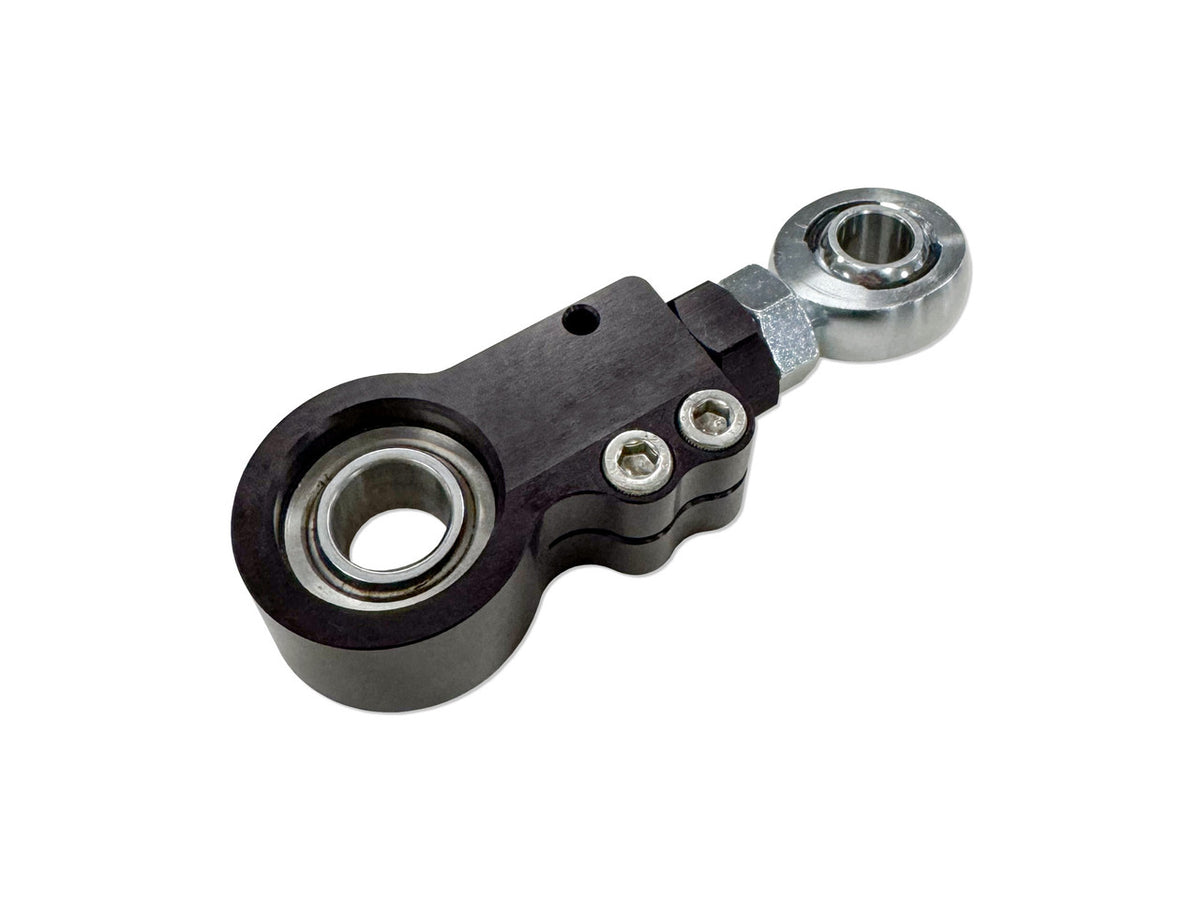

CNC-machined in the USA from 6061-T6 billet aluminum, each end link features a large spherical bearing and a chromoly rod end with a turnbuckle-style double adjuster. The body utilizes an integrated pinch-bolt locking mechanism to hold alignment settings securely without slipping. Lab-tested under axial loads exceeding 8,000 lbs of force, these end links easily handle the extreme stresses generated by stiff aftermarket rear sway bars and sticky track tires.
FEATURES
- Double-Adjuster Turnbuckle Design: On-car length adjustment allows precise sway bar preload removal and corner balance fine-tuning.
- Pinch Bolt Locking Mechanism: Secures threaded rod adjusters firmly in place, preventing thread backing or alignment shift under heavy cornering loads.
- Industrial-Grade Spherical Bearings & Chromoly Rod Ends: Eliminates rubber bushing deflection to deliver immediate rear sway bar transfer and road feel.
- Extreme Structural Rigidity: In-house tested to endure over 8,000 lbs of axial load—far exceeding maximum sway bar force limits.
- Anodized Corrosion Protection: Black anodized 6061-T6 aluminum body paired with Class 12.9 high-tensile hardware and zinc-plated spacers.
WHAT IS INCLUDED
- 2x Racer X Billet Rear End Link Assemblies
- 2x Chromoly Rod End Bushings
- 2x Rod End Small Spacers
- 4x Custom Billet Aluminum Alignment Bushings
- 2x M12 Grade 12.9 Socket Head Cap Screws
- 2x M12 Flange Lock Nuts
SPECIFICATIONS
- Part Number: 070406
- Material: 6061-T6 Billet Aluminum Body / Chromoly Rod Ends
- Hardware: Grade 12.9 Metric Hardware
- Installation Time: 1–2 Hours
- Difficulty: Moderate
FITMENT
- 2023+ Toyota GR Corolla (G16E-GTS)
WARNING: California Proposition 65 — This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Intended for competition / off-road use.
