Project Mu FS6 6POT Front BBK 355x32mm for 2013+ FRS/BRZ/86 2022+ BRZ/GR86
Regular price
$4,095.00
Share this part with a friend in need!
OVERVIEW
Achieve the ideal balance of heat capacity, piston modulation, and 18-inch wheel fitment with the Project Mu 6POT FS6 Forged Front Caliper Kit for 2013+ GR86 / BRZ / 86 / FR-S (ZN6/ZC6/ZN8/ZD8). Designed as Project Mu's high-performance mid-size 6-piston architecture, the FS6 caliper features a forged aluminum housing equipped with staggered 30mm, 36mm, and 38mm pistons. This staggered layout ensures uniform pressure across the entire brake pad length to mitigate pad taper and optimize pedal feel. Paired with 355mm x 32mm 2-piece straight 8-slit floating rotors, this kit provides extensive thermal capacity for high-speed track sessions and aggressive time attack driving.
| Caliper Feature / Spec | FS44 Full-Size 4POT (355mm) | FS6 Flagship 6POT (345mm) | FS6 Flagship 6POT (355mm) | FS6 Flagship 6POT (380mm) |
|---|---|---|---|---|
| Axle Position | Front Axle Specific | Front Axle Specific | Front Axle Specific | Front Axle Specific |
| Caliper Profile & Architecture | Standard Full Body (156.25mm W) | Flagship 6POT Forged Body (153.0mm W) | Flagship 6POT Forged Body (153.0mm W) | Flagship 6POT Forged Body (153.0mm W) |
| Piston Configuration | 41mm Oversized Pistons x 4 | Staggered 30mm / 36mm / 38mm Pistons x 6 | Staggered 30mm / 36mm / 38mm Pistons x 6 | Staggered 30mm / 36mm / 38mm Pistons x 6 |
| Rotor Specs & Diameter | 355mm x 32mm Heavy-Duty (2-Piece) | 345mm x 32mm Heavy-Duty (2-Piece Floating) | 355mm x 32mm Heavy-Duty (2-Piece Floating) | Massive 380mm x 32mm Heavy-Duty (2-Piece Floating) |
| Target Application | Heavy-Duty Track / High Torque 4POT | Flagship Circuit Brake / 17"+ Wheel Friendly | High-Speed Track & Time Attack (18" Wheels) | Maximum Thermal Capacity / Circuit Endurance (18"+) |
FEATURES
- Flagship Forged 6-Piston Architecture: Forged aluminum construction offers maximum structural rigidity, ensuring consistent pedal resistance under elevated temperatures.
- Staggered Piston Sizing: Staggered 30mm, 36mm, and 38mm pistons prevent pad deformation, maintaining uniform contact across the friction surface.
- 355mm x 32mm 2-Piece Floating Rotors: Billet aluminum center hats paired with floating 32mm thick rotor rings increase thermal capacity and dissipate heat quickly.
- Straight 8-Slit Rotor Face: Cleans pad contact surface, releases gas buildup, and boosts friction bite during repeated high-speed braking.
- Dual Hydraulic Seals: Weather-resistant dust seals protect internal pressure seals from high-temperature brake dust and track contamination.
WHAT IS INCLUDED

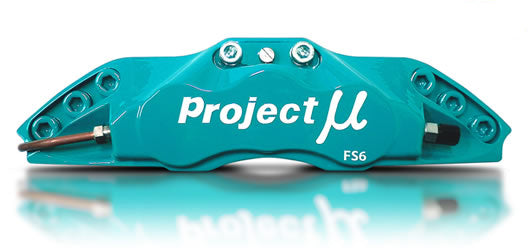

- 2x Project Mu FS6 Forged 6-Piston Front Calipers (Signature Teal Finish)
- 2x Project Mu 355mm x 32mm 2-Piece Front Brake Rotors (Straight 8-Slit)
- 4x Project Mu Performance Front Brake Pads (Standard NS-C Compound)
- 2x Heavy-Duty Steel Caliper Mounting Brackets & Hardware
- 2x Stainless Steel Braided Brake Lines with Teflon Inner Core
- Pad Support Springs & Complete Installation Hardware
PART NUMBERS
- Manufacturer Part Number: FS6-F103B
SPECIFICATIONS
- Position: Front Axle
- Caliper Type: Forged Aluminum 6-Piston Flagship Body (FS6)
- Piston Diameter: Staggered 30mm / 36mm / 38mm (x6 total per caliper)
- Caliper Dimensions: Length: 288.0mm | Width: 153.0mm | Height: 74.0mm
- Rotor Dimensions: 355mm Diameter x 32mm Thickness (2-Piece Floating)
- Rotor Venting / Slits: Vented with Straight 8-Slit Pattern
- Standard Included Compound: Project Mu NS-C (Optional: TYPE PS or D1 spec ZERO)
- Finish: Hard Anodized + Signature Teal Powder Coat
FITMENT
- 2022+ Toyota GR86 (ZN8) & Subaru BRZ (ZD8)
- 2013-2021 Toyota 86 / Scion FR-S (ZN6) & Subaru BRZ (ZC6)
- *Requires 18-inch aftermarket wheels (check wheel template for barrel and spoke clearance)
DISCLAIMER
- Backplate Processing Required: Installation requires trimming or modifying OEM front brake dust shields/backplates.
- Non-Affiliation & Warranty: Direct parallel import of authentic JDM components. We are an independent retailer, not an authorized Project Mu dealer. Factory warranty applies in Japan only.
- 14-Day Defect Window: Customers must inspect all parts upon arrival. Defect, damage, or missing part claims must be reported within 14 days of delivery and prior to installation. Installed items are non-returnable.
- Installation: Manuals are in Japanese. Professional installation by a certified technician is required.
