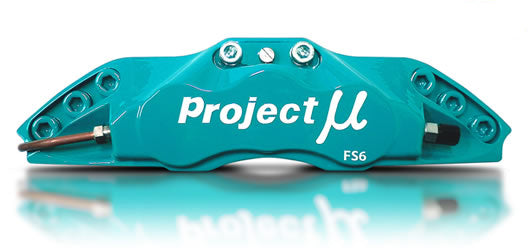

Project Mu FS6 6POT Front BBK 345x32mm for 2013+ FRS/BRZ/86 2022+ BRZ/GR86
Regular price
$3,995.00
Share this part with a friend in need!
OVERVIEW
Combine flagship 6-piston pedal control with versatile wheel fitment using the Project Mu 6POT FS6 Forged Front Caliper Kit for 2013+ GR86 / BRZ / 86 / FR-S (ZN6/ZC6/ZN8/ZD8). Engineered as Project Mu's ultimate response-focused front system, the FS6 features a forged aluminum body housing staggered 30mm, 36mm, and 38mm pistons. This progressive piston configuration balances clamp pressure across the pad face to eliminate pad taper and optimize initial bite modulation. Paired with heavy-duty 345mm x 32mm 2-piece straight 8-slit floating rotors, this 345mm variant offers race-proven thermal capacity while expanding compatibility to select high-performance 17-inch track wheels.
| Caliper Feature / Spec | FS4M Street 4POT | FS44 Full-Size 4POT (345mm) | FS6 Flagship 6POT (345mm) | FS6 Flagship 6POT (380mm) |
|---|---|---|---|---|
| Axle Position | Front Axle Specific | Front Axle Specific | Front Axle Specific | Front Axle Specific |
| Caliper Profile & Architecture | Compact Street Body (144.5mm W) | Standard Full Body (156.25mm W) | Flagship 6POT Forged Body (153.0mm W) | Flagship 6POT Forged Body (153.0mm W) |
| Piston Configuration | 38mm Pistons x 4 | 41mm Oversized Pistons x 4 | Staggered 30mm / 36mm / 38mm Pistons x 6 | Staggered 30mm / 36mm / 38mm Pistons x 6 |
| Rotor Specs & Diameter | 315mm x 30mm (1-Piece) | 345mm x 32mm Heavy-Duty (2-Piece) | 345mm x 32mm Heavy-Duty (2-Piece Floating) | Massive 380mm x 32mm Heavy-Duty (2-Piece Floating) |
| Target Application | Street / Canyon / OEM 17" Wheels | Heavy-Duty Track / High Torque 4POT | Flagship Circuit Brake / 17"+ Wheel Friendly | Maximum Thermal Capacity / Circuit Endurance (18"+) |
FEATURES
- Flagship Forged 6-Piston Architecture: High-rigidity forged aluminum alloy caliper body provides exceptional structural stability and pedal feel under extreme hydraulic force.
- Staggered Piston Diameters: 30mm, 36mm, and 38mm pistons equalize pressure distribution across the pad length, preventing uneven wear and pad taper.
- 345mm x 32mm 2-Piece Floating Rotors: Billet aluminum hat and extra-thick 32mm floating rotor ring provide excellent thermal resistance while fitting select 17-inch wheels.
- Straight 8-Slit Rotor Face: Degasses pad friction material, vents out boundary gases, and refreshes the pad friction layer under continuous heavy track braking.
- Dual Hydraulic Seal Protection: Dedicated outer dust boots shield inner fluid seals from brake dust, grit, and track debris.
WHAT IS INCLUDED
- 2x Project Mu FS6 Forged 6-Piston Front Calipers (Signature Teal Finish)
- 2x Project Mu 345mm x 32mm 2-Piece Front Brake Rotors (Straight 8-Slit)
- 4x Project Mu Performance Front Brake Pads (Standard NS-C Compound)
- 2x Heavy-Duty Steel Caliper Mounting Brackets & Hardware
- 2x Stainless Steel Braided Brake Lines with Teflon Inner Core
- Pad Support Springs & Complete Installation Hardware
PART NUMBERS
- Manufacturer Part Number: FS6-F103A
SPECIFICATIONS
- Position: Front Axle
- Caliper Type: Forged Aluminum 6-Piston Flagship Body (FS6)
- Piston Diameter: Staggered 30mm / 36mm / 38mm (x6 total per caliper)
- Caliper Dimensions: Length: 288.0mm | Width: 153.0mm | Height: 74.0mm
- Rotor Dimensions: 345mm Diameter x 32mm Thickness (2-Piece Floating)
- Rotor Venting / Slits: Vented with Straight 8-Slit Pattern
- Standard Included Compound: Project Mu NS-C (Optional: TYPE PS or D1 spec ZERO)
- Finish: Hard Anodized + Signature Teal Powder Coat
FITMENT
- 2022+ Toyota GR86 (ZN8) & Subaru BRZ (ZD8)
- 2013-2021 Toyota 86 / Scion FR-S (ZN6) & Subaru BRZ (ZC6)
- *Requires select 17-inch or larger aftermarket wheels (check wheel template for barrel clearance)
DISCLAIMER
- Backplate Processing Required: Installation requires trimming or modifying OEM front brake dust shields/backplates.
- Non-Affiliation & Warranty: Direct parallel import of authentic JDM components. We are an independent retailer, not an authorized Project Mu dealer. Factory warranty applies in Japan only.
- 14-Day Defect Window: Customers must inspect all parts upon arrival. Defect, damage, or missing part claims must be reported within 14 days of delivery and prior to installation. Installed items are non-returnable.
- Installation: Manuals are in Japanese. Professional installation by a certified technician is required.
