Perrin 22-23 BRZ/GR86 Oil Cooler Kit

Regular price $749.70
Regular price Sale $882.00 Sale price $749.70

Share this part with a friend in need!




Upgrade your cooling game with the Perrin 22-23 BRZ/GR86 Oil Cooler Kit, a high-performance solution designed to reduce engine oil temperatures, extend engine life, and maintain horsepower consistency. Crafted by Perrin, a trusted name in aftermarket performance, this oil cooler kit is engineered to meet the demands of racing conditions, ensuring optimal engine performance and longevity.



  • Oil Cooler Core Dimensions: 9.5" x 4.75" x 2.2"
  • Core Delta PSI: 3.0/3.5 PSI
  • Core BTU/hr Range: 22,000-29,000
  • Additional Oil Required: 1 quart
  • Mounting Brackets: 6061 T6 aluminum
  • Filter Spacer: 6061 T6 Aluminum
  • Oil Cooler Thermostat: 85°C Activation Temp
  • Hose Size: -10
  • Hose Construction: AQP Elastomer Tube, Textile Braid Reinforcement, AQP
  • Elastomer Cover


  •  22-23 Subaru BRZ/ Toyota GR86

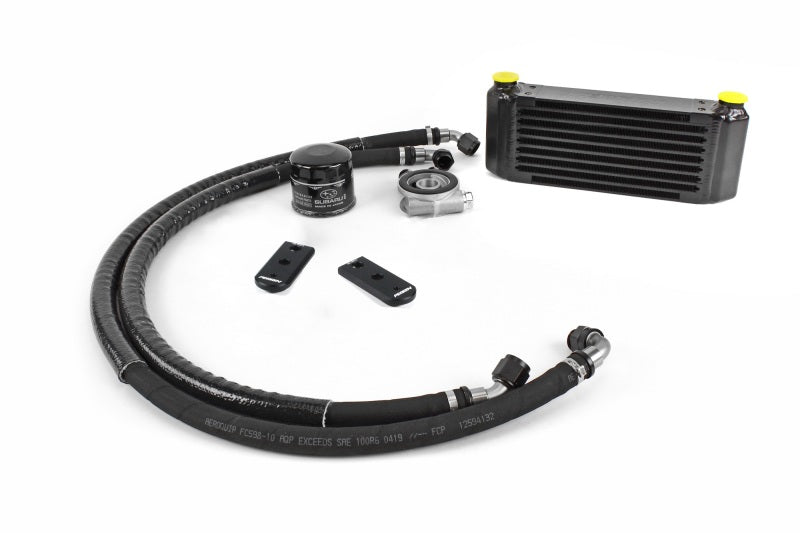

  • (1) PERRIN Oil Cooler Core
  • (1) Thermostat Oil Filter/Cooler Adapter
  • (1) M20 Threader Adapter
  • (1) Long High-Pressure Hose
  • (1) Short High-Pressure Hose
  • (2) PERRIN Oil Cooler Mounting Brackets
  • (2) M6x16 Socket Cap Screws
  • (4) M8x14 Flat Head Screws
  • (2) M8 Fender Washers
  • (2) M6x18 Fender Washers
  • (15) Zip ties
  • (1) PERRIN License Plate Frame
  • Warranty & Instructions


Why You Want This: In racing conditions, engine oil temperature can skyrocket, leading to decreased engine performance and reduced lubrication effectiveness. The Perrin Oil Cooler Kit is designed to keep temperatures within the desired range, maintaining performance and prolonging engine life. Many setups can experience a temperature drop of approximately 15-20°F at 7000 RPM.

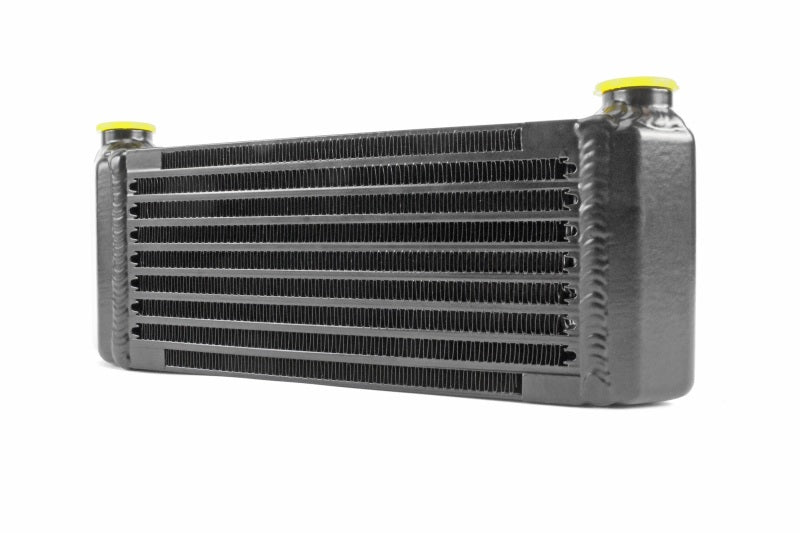

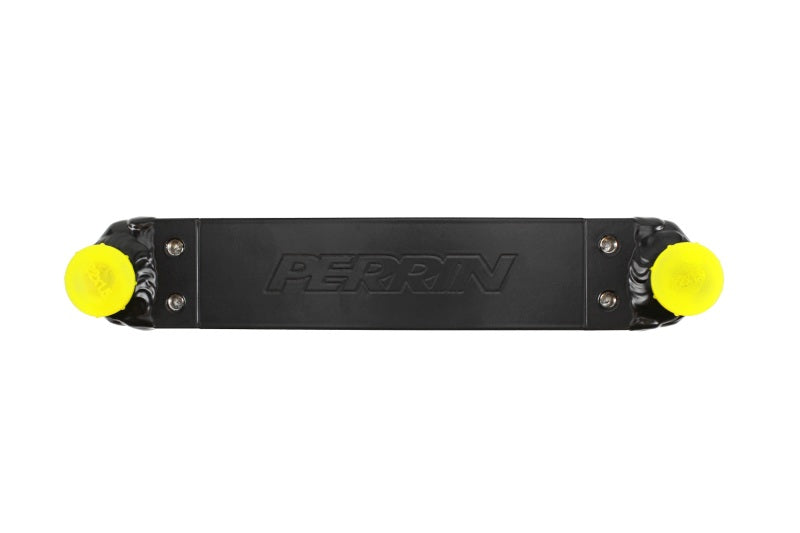

Heat Exchanger: Utilizes a bar and plate core for maximum heat dissipation without pressure build-up. In-line turbulators ensure gentle stirring of the fluid for exposure to the entire internal surface area with low pressure loss.

Integrated Thermostat: Features an integrated 85°C (185°F) thermostat, allowing oil to reach optimum operation temperatures within the engine before release to the oil cooler.

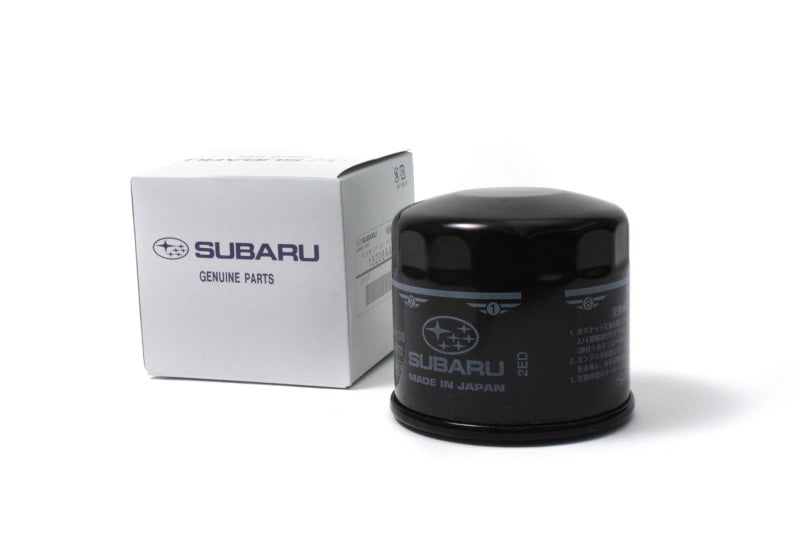

Oil Spacer: For 2013-2020 vehicles, includes an oil spacer for easy installation of the thermostat-filter assembly along with a new OEM oil filter from Subaru.

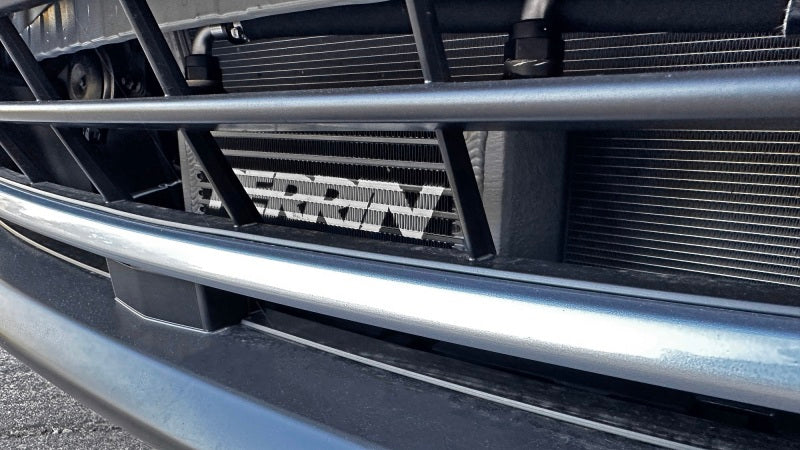

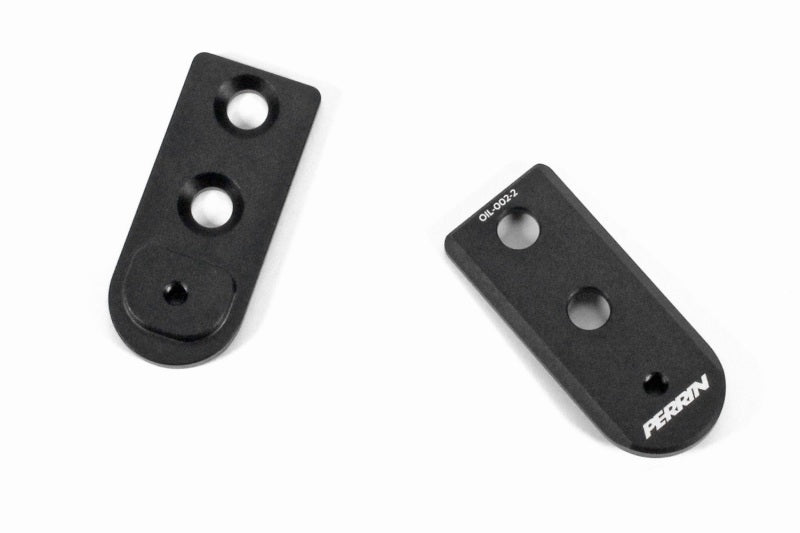

Mounting Brackets: Custom CNC machined 6061 T6 aluminum brackets for a sleek, stylish look, mounting directly to existing holes in the OEM core support.

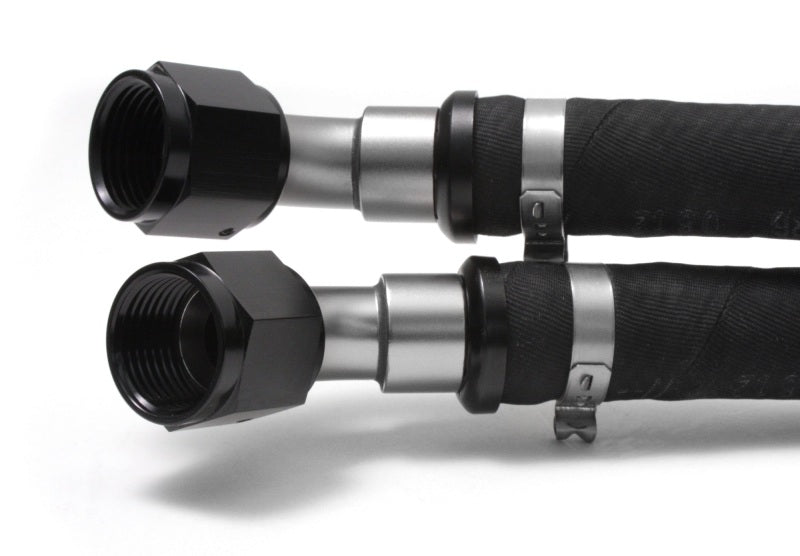

Preassembled Hoses: Full Perrin Oil Cooler Kits feature lightweight Aeroquip brand -10 hoses, pre-assembled and wrapped with Perrin's industrial-grade Pyrojacket, capable of withstanding continuous exposure to high temperatures.
