The MRP 4age Dry Sump kit is everything you need to take your car to the next level.
This has to be one of the most complete 4age dry sump kits on the market.
A full bolt on kit, all you need to do is plumb the system!
A must for any high performance track orientated engine. the vacuum this systems creates will also increase the engine power out put anywhere from 5-15hp.
Application: All 4age/7age FWD/RWD/AW11
No Power steering (contact us if you need power steering). Mounts on Exhaust side of the engine.

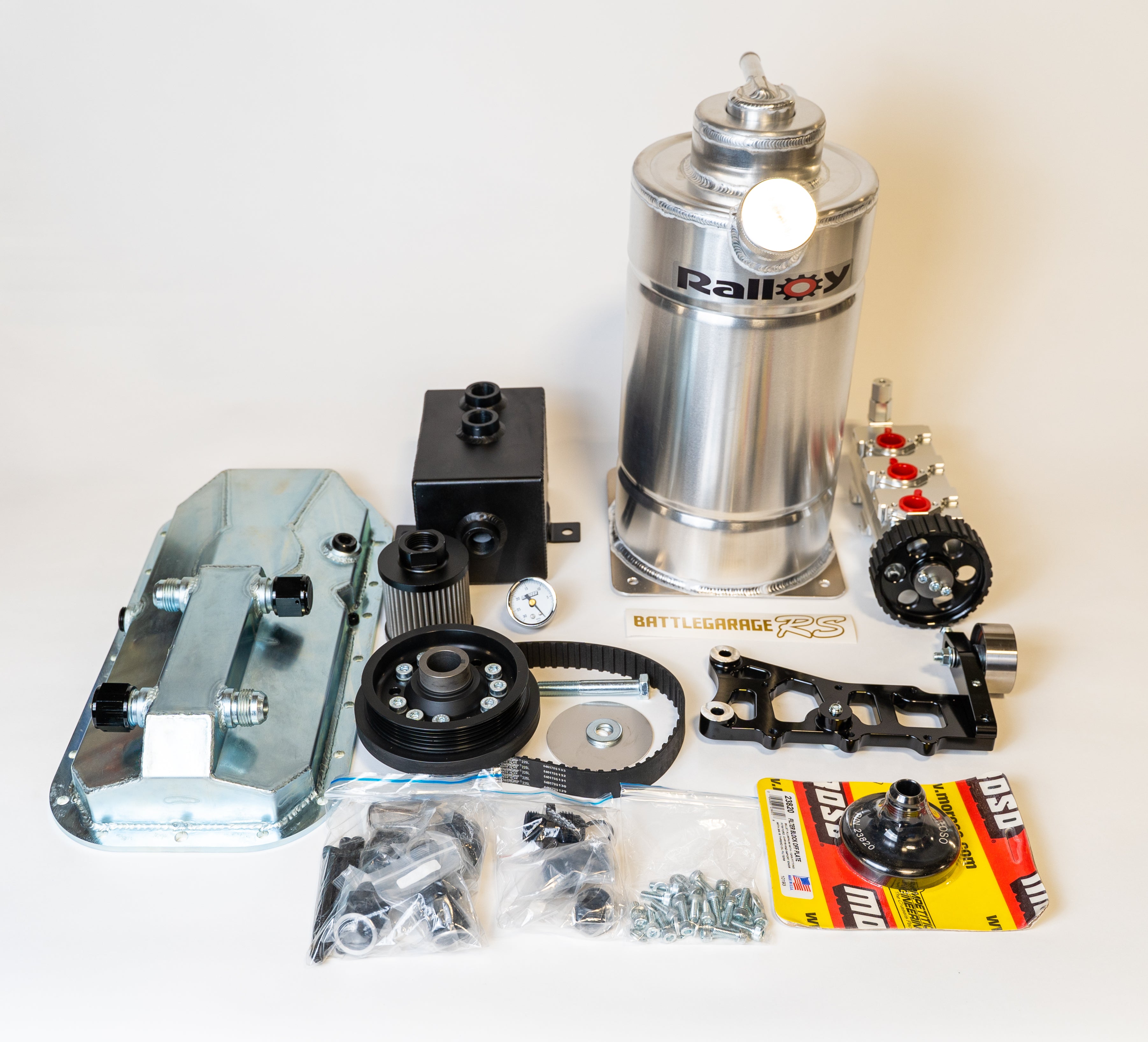

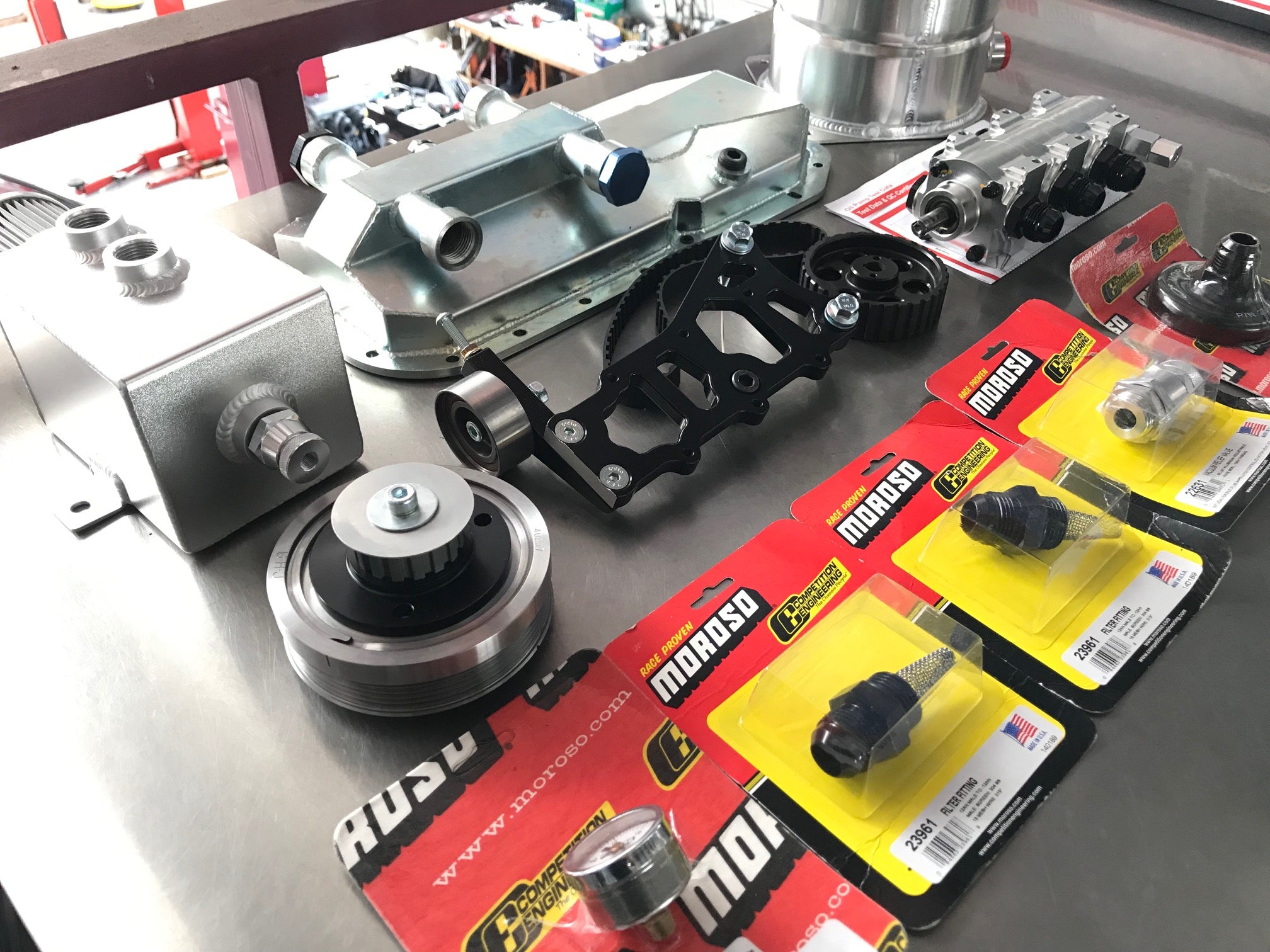

The kit contains the following:
– AT Power Cordis 3 Stage Billet Pump with Gerator style gears for reliable stable pressure
– Billet Pump bracket which mounts the pump on the Exhaust side (Optional intake side mounting)
– Custom MRP sump pan with -12AN ports
– 6L Aluminium baffled custom tank with swirl header tank – 410mm Tall, 200mm Wide with Square mounting base
– 2x -12AN Screen filters
– 2L Race Breather Can with magnetic filter
– Moroso oil filter block off plate
– Moroso adjustable vacuum relief valve
– Vacuum gauge
– 4age BHJ High Performance Harmonic Balancer
– AT Power Gilmer Drive Pulley
– Peterson Gilmer Pump Pulley
– Gilmer Belt
– Custom aluminium Drive mandrel
– Custom Gilmer PS pump pulley (optional)
– Pump Idler tensioner with bracket
AN fittings & braided line is extra cost – Let us know if you need fittings and we can price you up.
Notes: Sump pans are a dual fitment to 16v/20v blocks. Also fits 7a blocks. Uses stock oil pump cover by removing the gears.
Here is a quick run down on advantages of using a dry sump system:
https://en.wikipedia.org/wiki/Dry_sump#Advantages
This is a special order item- They will have to be ordered with our supplier and may have an extended lead time. Additionally, if you choose to cancel this item after purchase, a 15% logistical fee will be deducted from the refund.
