OVERVIEW

The Killer B Motorsport Ultimate Oil Pickup for the Subaru FA20 engine addresses critical flaws in the OEM design to deliver unmatched reliability and performance. Engineered with increased strength, improved flow, and set-it-and-forget-it durability, this upgrade is a must-have for BRZ and FR-S owners who demand the best in oiling performance.

FEATURES

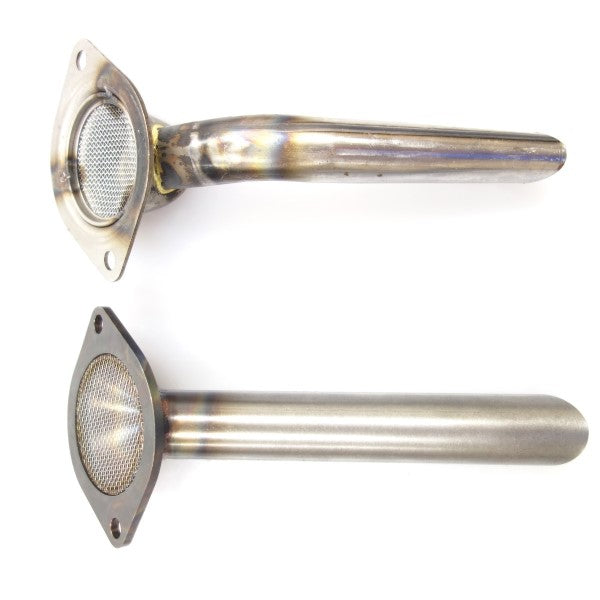

• Straight tube design with no bends for unrestricted oil flow
• Increased tube ID and thickness for improved durability and performance

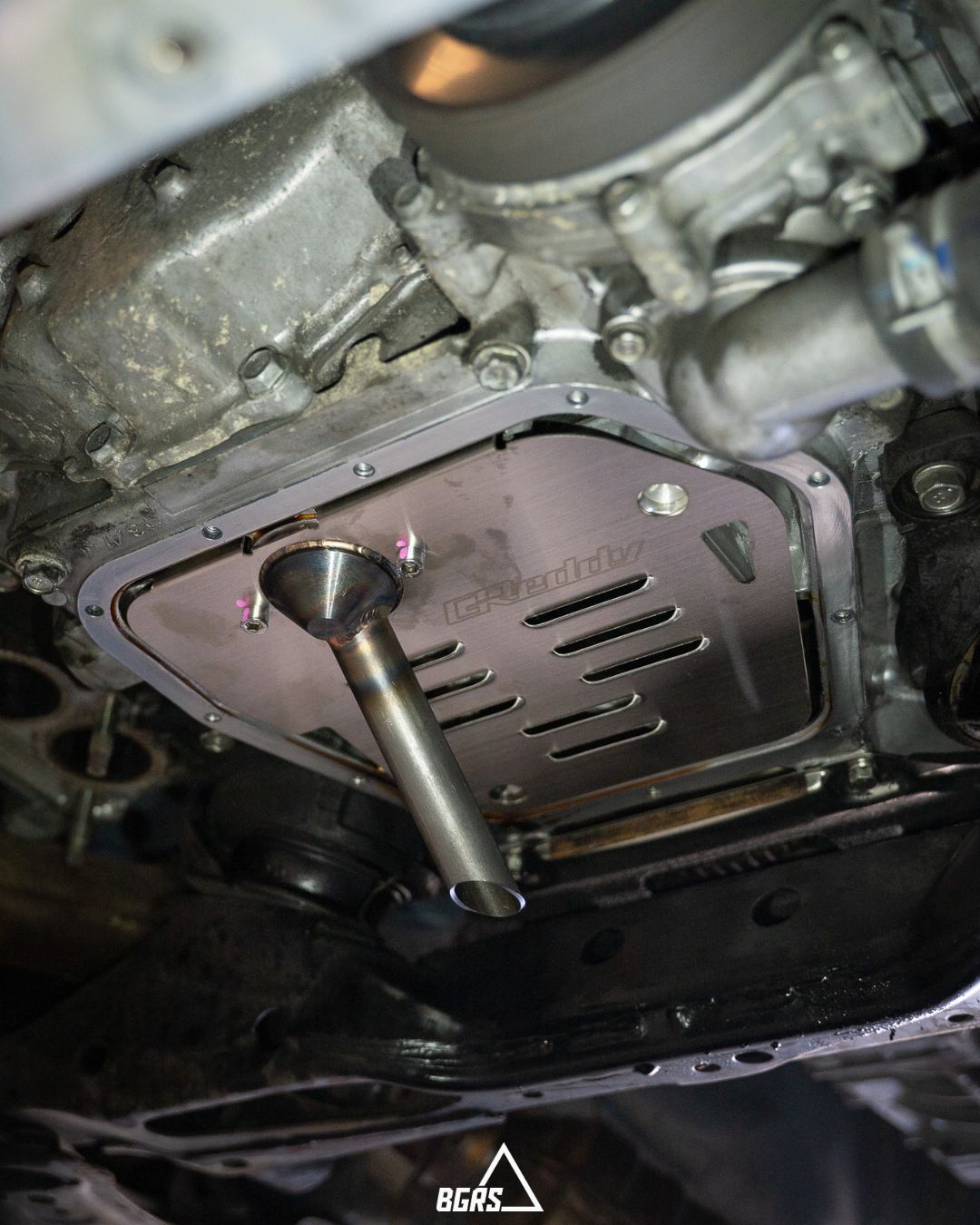

• Direct tube angle aimed at the block inlet for optimized flow

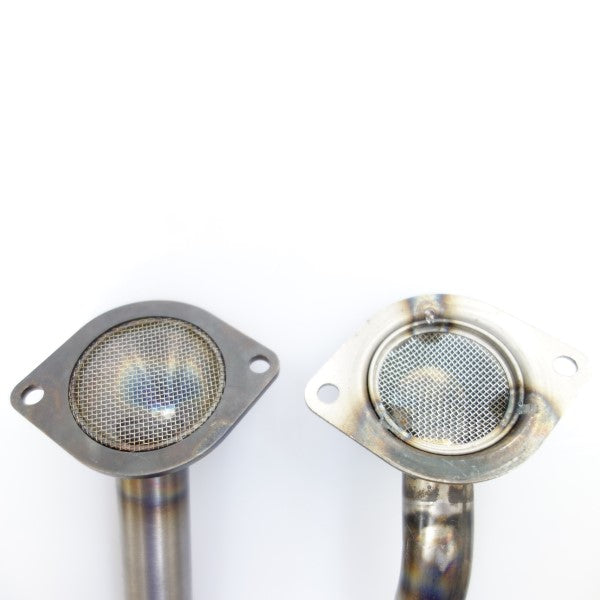

• 31% larger screen area to reduce restriction and stress
• High-strength screen material pressed and welded for reliability
• TIG welded 4130 Alloy Steel construction for superior strength
• Pressure tested to 150psi over the face of the screen

SPECIFICATIONS

• Material: 4130 Alloy Steel
• Screen: OEM spec opening size, higher strength material
• Screen Area: Increased by 31% compared to OEM
• Construction: Fully TIG welded
• Pressure Tested: 150psi over the screen face

SCIENCE

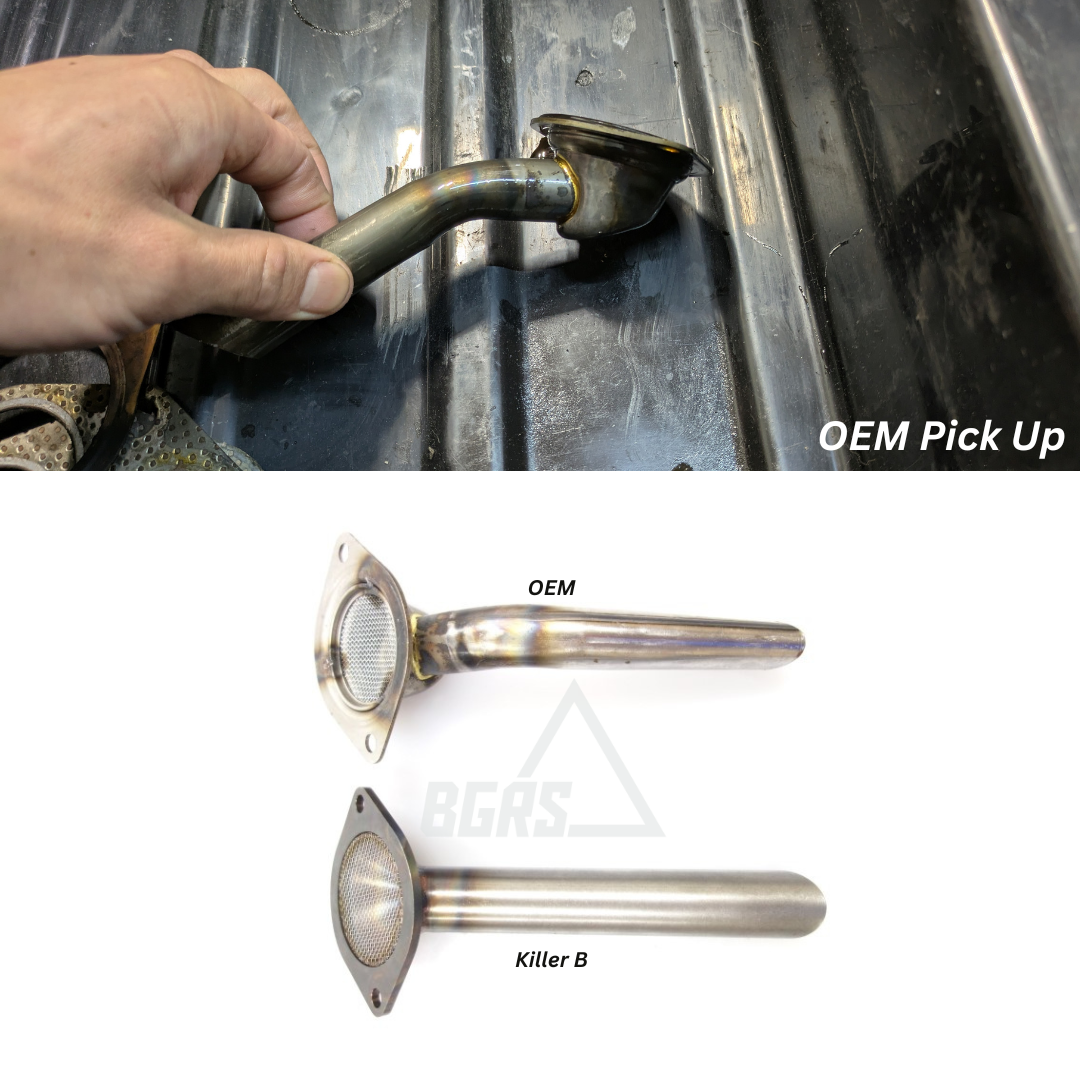

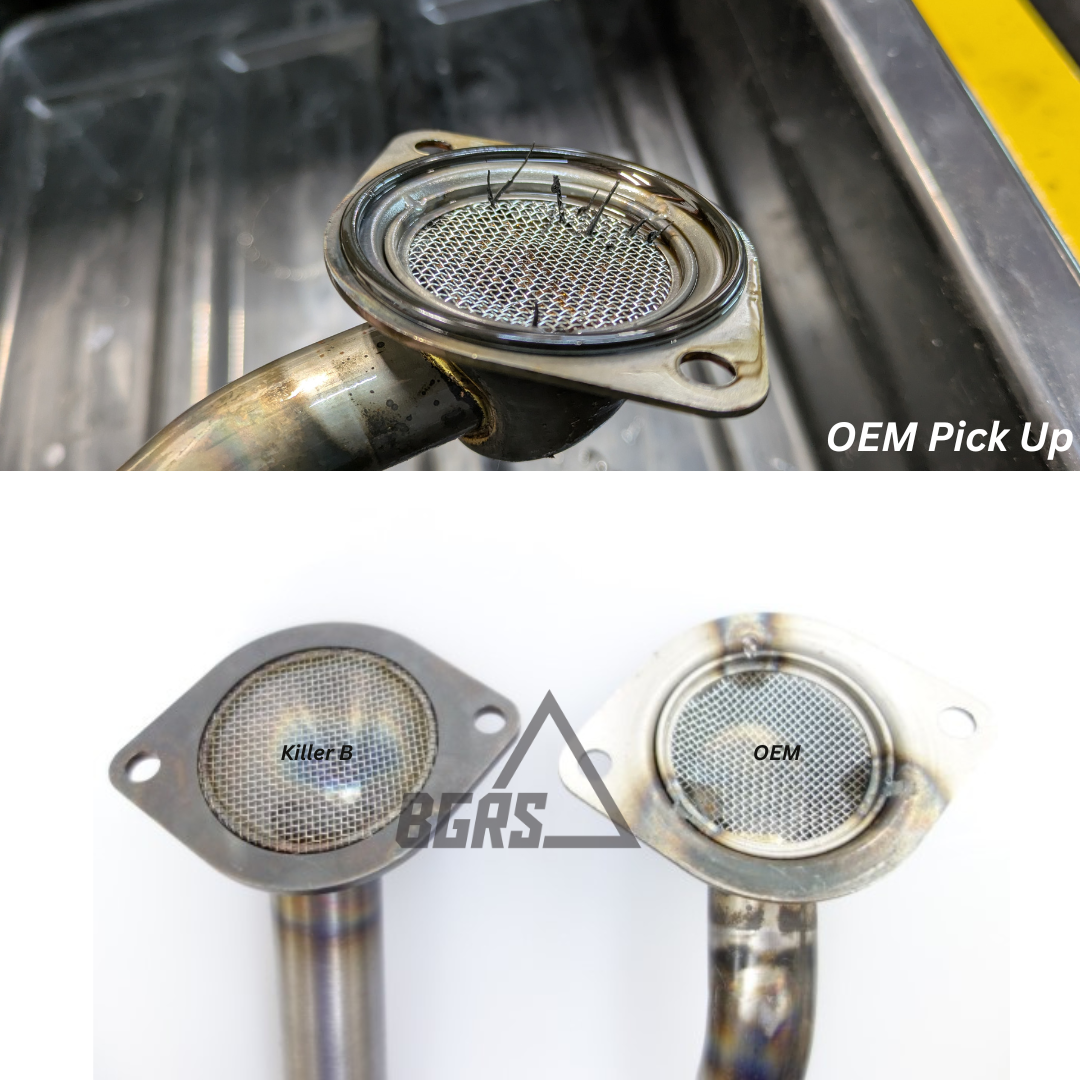

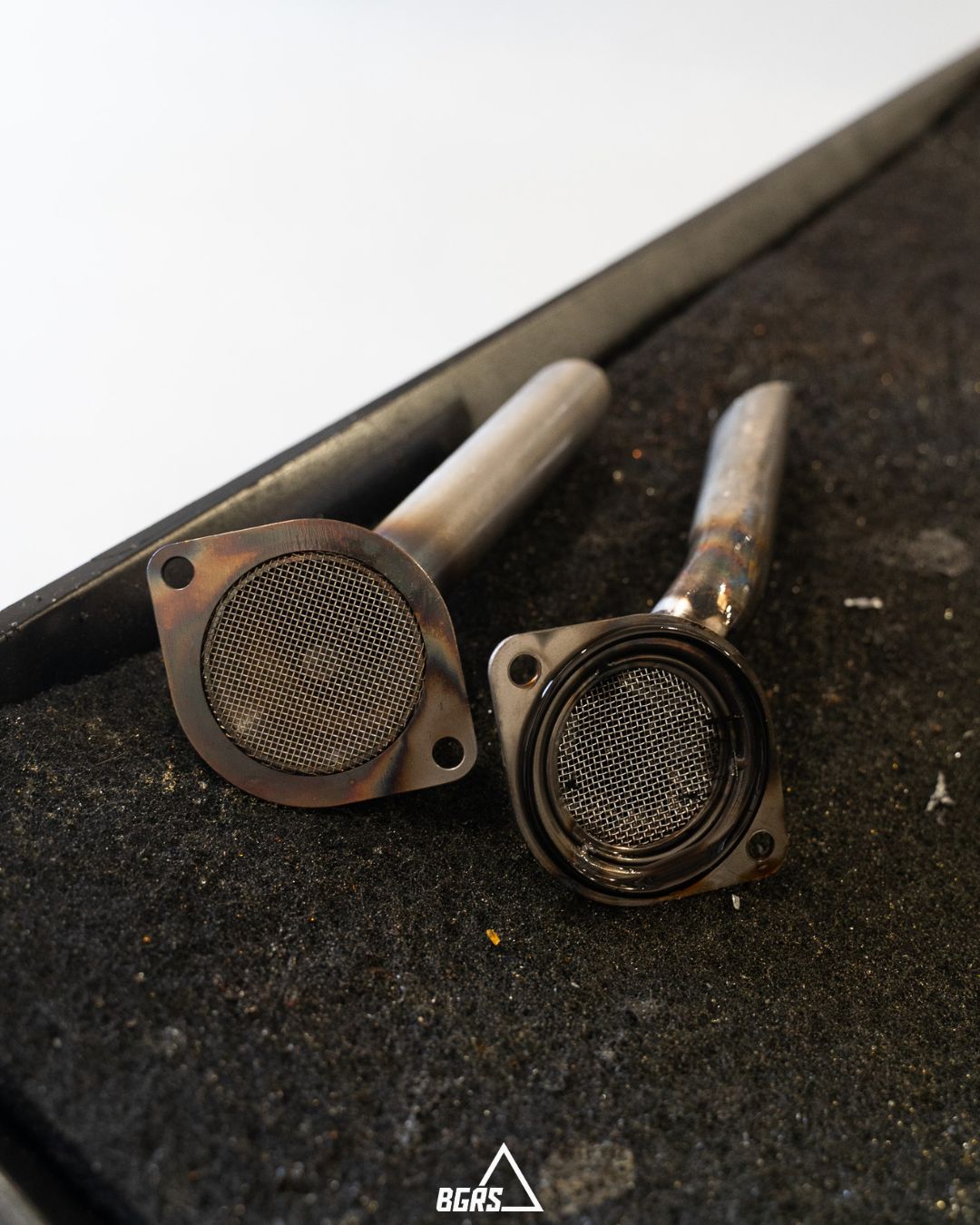

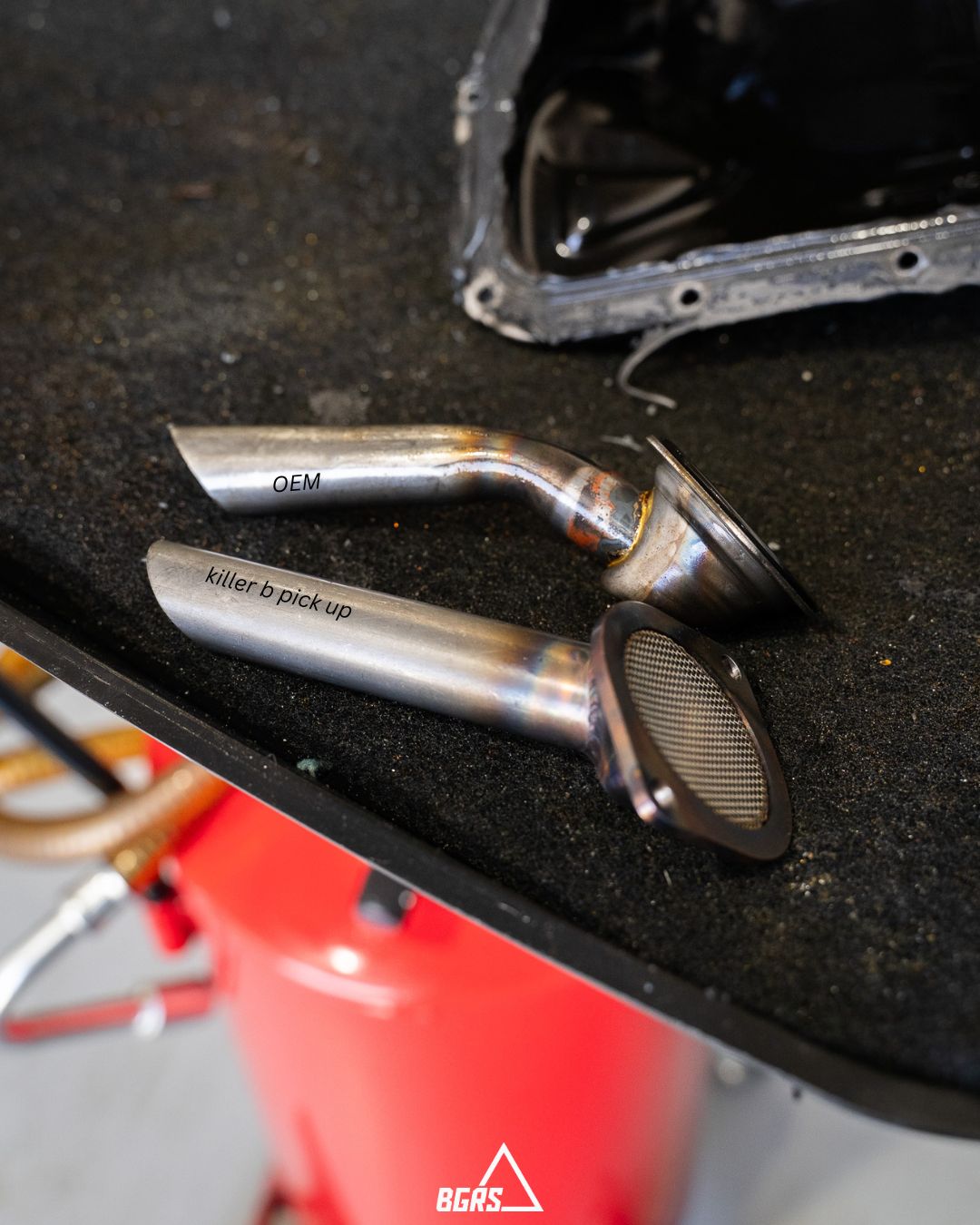

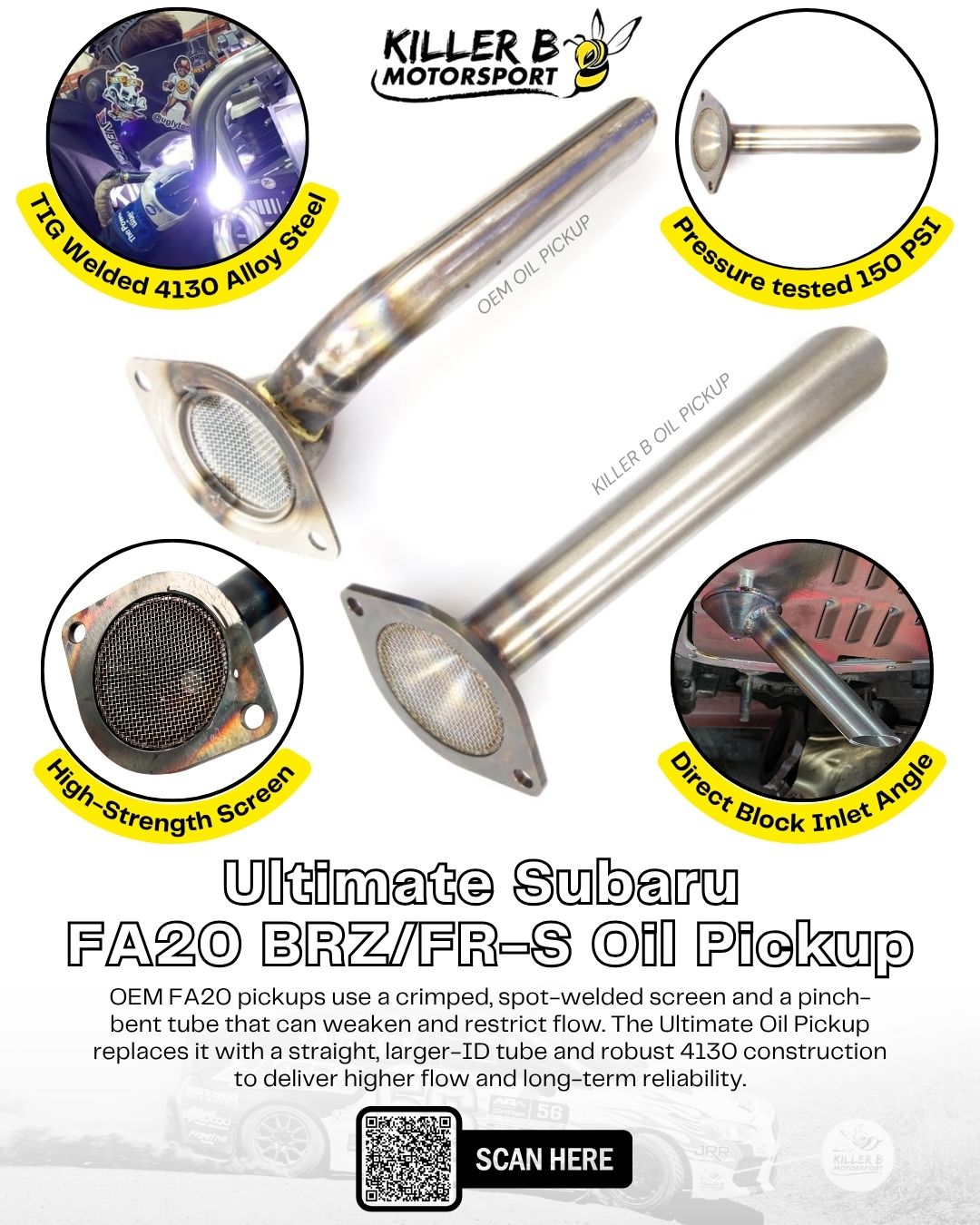

The OEM oil pickup has two major flaws: the screen is creased where the retaining ring is crimped, and the spot weld process embrittles the screen. These weaknesses make it prone to wire strand failures under pressure. Killer B Motorsport resolved these issues by redesigning the pickup with stronger materials, TIG welding for optimal penetration, and a larger screen area to reduce stress and restriction. The straight, thicker tube eliminates OEM pinch bends, ensuring maximum flow and reliability under demanding conditions.

WHAT IS INCLUDED

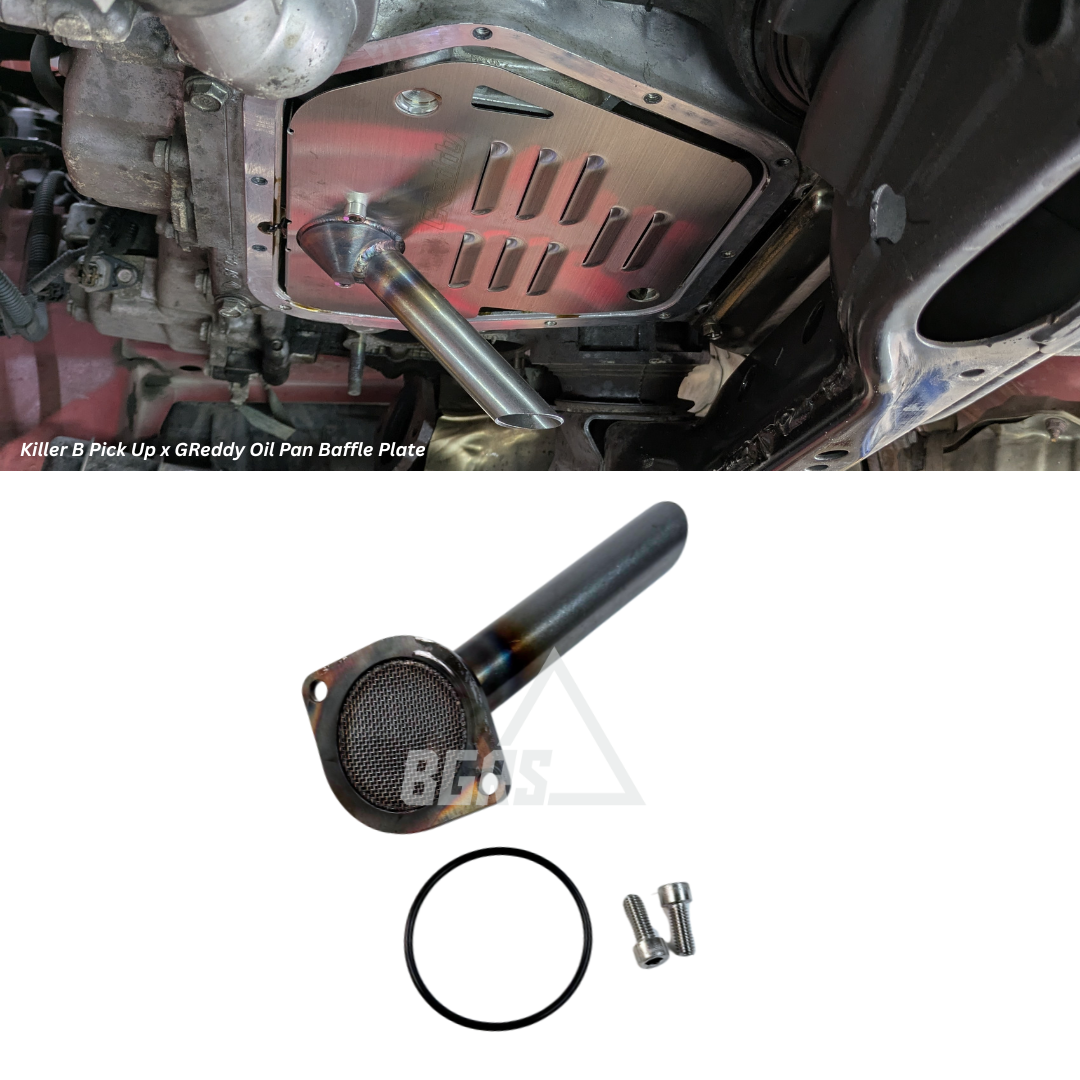

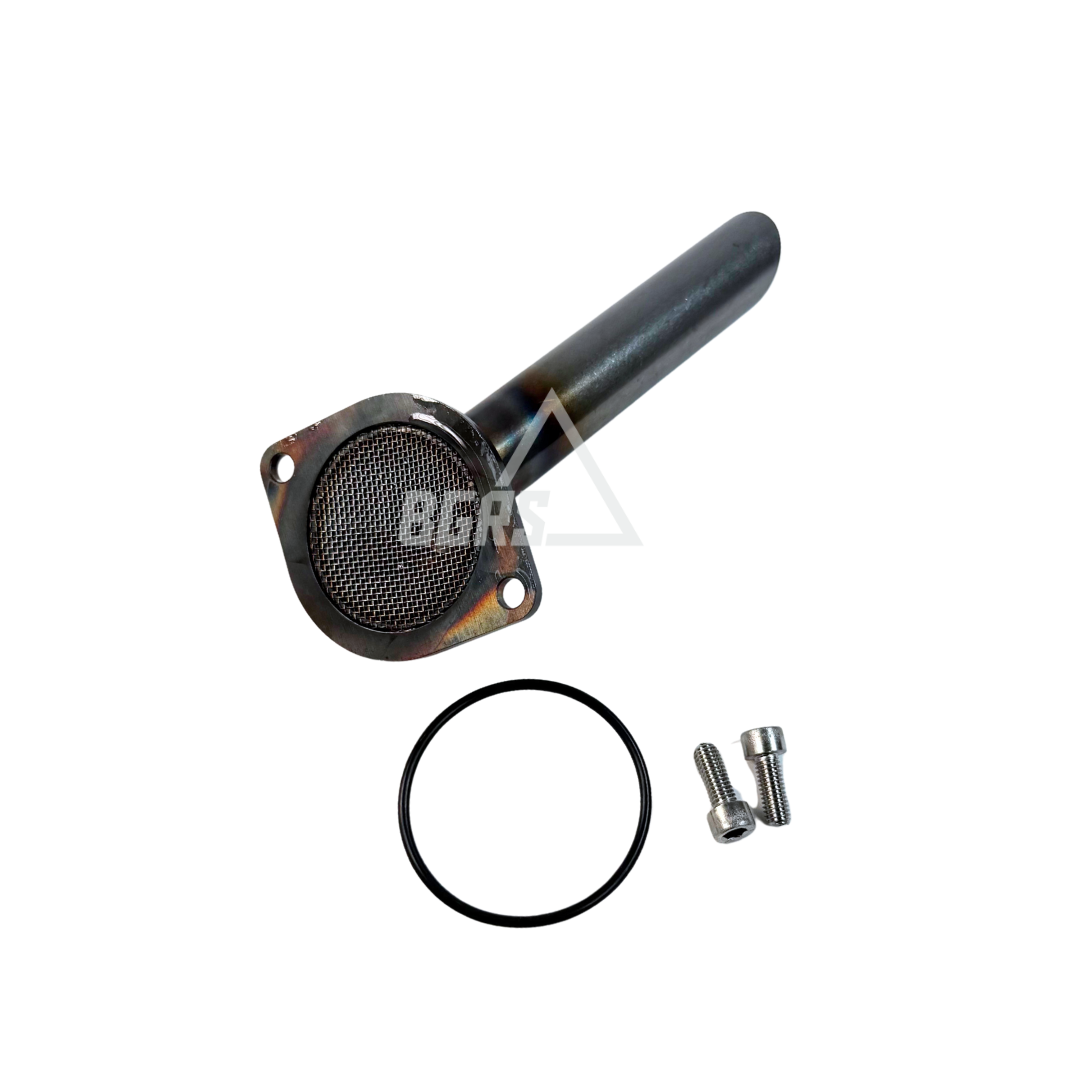

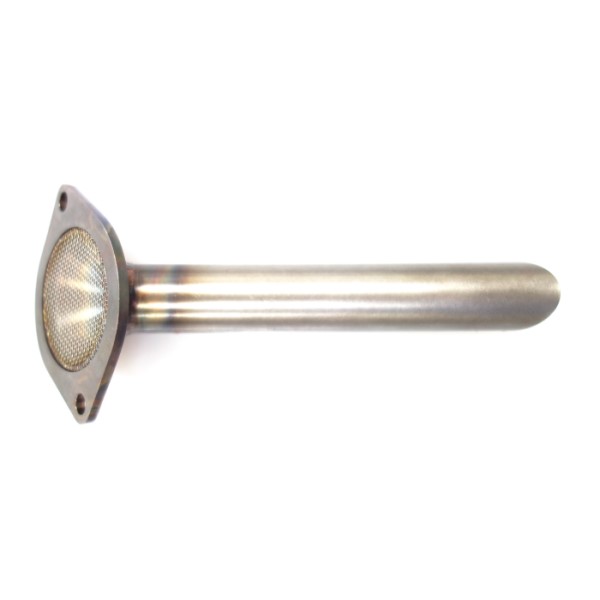

• Killer B Motorsport Ultimate Subaru FA20 BRZ/FR-S Oil Pickup

FITMENT

• 2013+ Subaru BRZ (FA20)
• 2013+ Scion FR-S (FA20)
  (Note: This part number ONLY works with BRZ/FR-S.)
