OVERVIEW

Transform the handling dynamics and stance of your G16E-GTS powered hatchback with the HKS Hipermax S Full Coilover Kit for the Toyota GR Corolla. Designed to balance everyday driving comfort with sharp, responsive track handling, the Hipermax S series features 30-way damping adjustment and single-tube shock construction. Engineered with HKS's Dual PVR (Preload Valve System) technology, these coilovers eliminate unwanted suspension pitch and roll while maintaining excellent bump absorption over harsh road surfaces.

FEATURES

• 30-Step Damping Adjustment: Precision needle valve tuning allows fine adjustment from plush street driving to aggressive track settings.
• Single-Tube Shock Design: Separates oil and gas chambers to prevent cavitation and ensure consistent damping performance under heavy load.
• Inverted Front Strut Assembly: Enhances rigidity against lateral force under hard cornering and braking forces.
• PVR (Preload Valve System): Regulates low-speed damping to improve steering feel and high-speed valve flow to absorb sharp impacts seamlessly.
• Advanced Anti-Corrosion Coating: "PNS Coating" on threaded bodies provides superior resistance to rust and road grime buildup.

WHAT IS INCLUDED

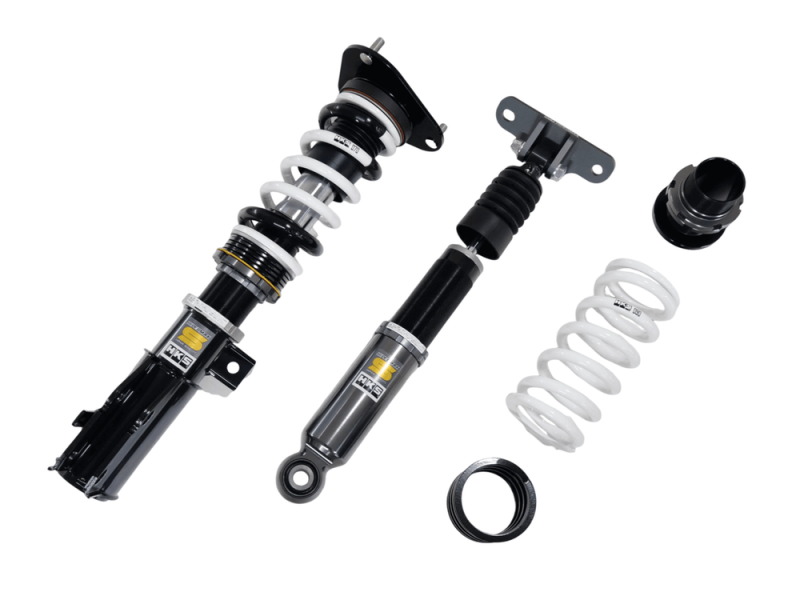

• 2x HKS Front Inverted Coilover Assemblies
• 2x HKS Rear Dampers & Height Adjusters
• 4x HKS Performance Springs
• Spanner Wrenches & Mounting Hardware

PART NUMBERS

• Manufacturer Part Number: 80330-AT030

SPECIFICATIONS

• Damping Levels: 30 Steps Adjustable
• Front Spring Rate: 7.0 kgf/mm (69 N/mm)
• Rear Spring Rate: 9.0 kgf/mm (88 N/mm)
• Front Height Adjustment Range: +3mm to -51mm
• Rear Height Adjustment Range: +7mm to -70mm
• Upper Mounts: Rubber Mount (Front / Rear)

FITMENT

• 2023+ Toyota GR Corolla
