OVERVIEW

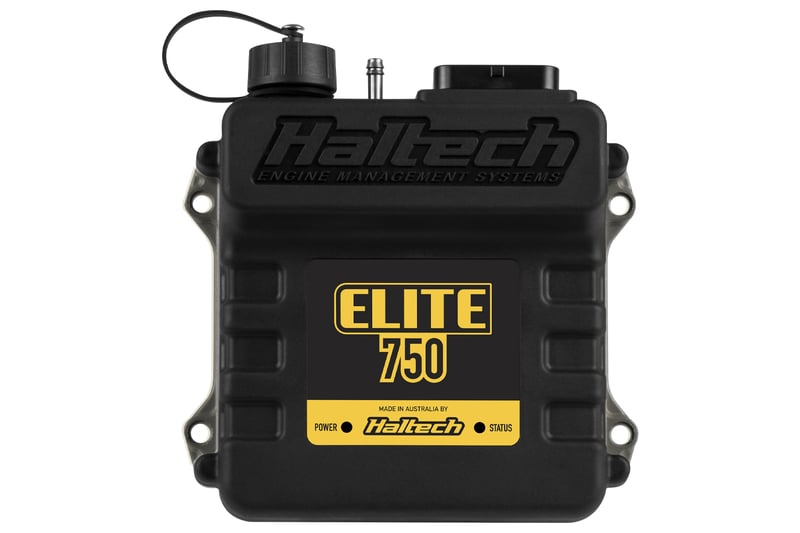

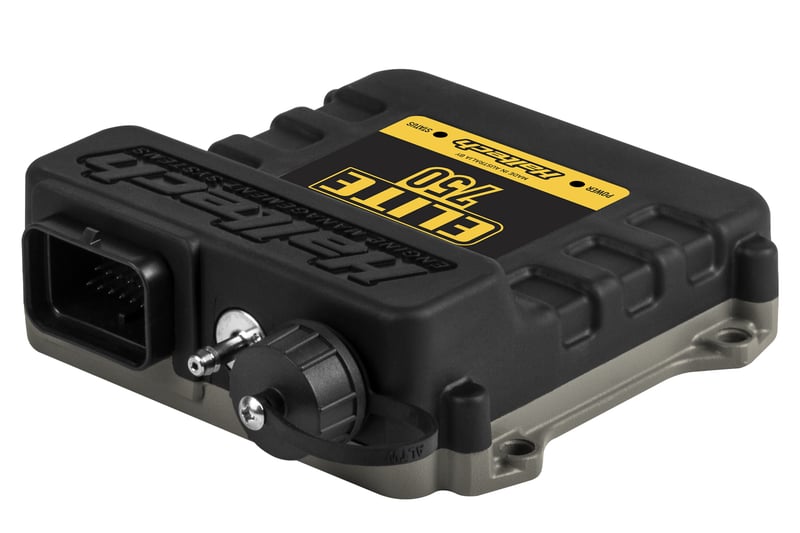

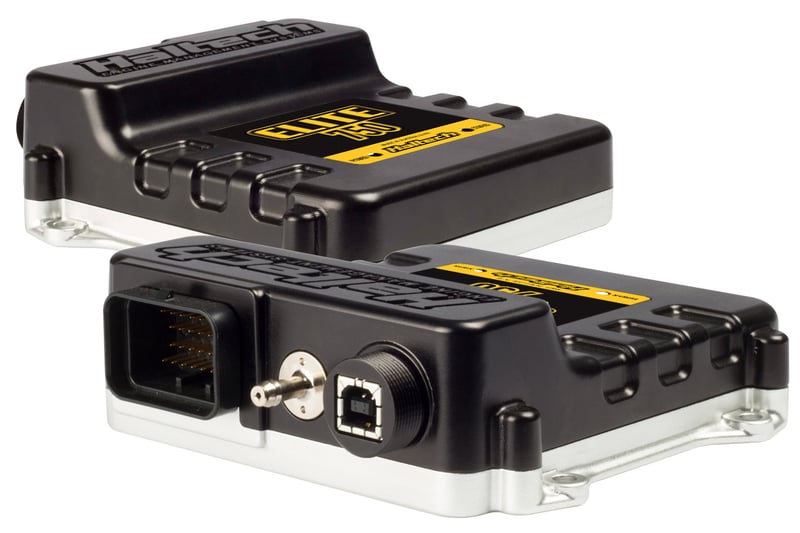

The Elite 750 is an entry-level standalone ECU offering many features available on the more advanced Elite ECUs at an affordable price. Housed in a robust, environmentally sealed, IP67 waterproof case, this compact unit features 6 fuel and ignition channels, on-board data logging, and flex-fuel tuning capabilities. Supplied as a single-connector kit with a basic universal flying-lead harness, it serves as an excellent, entry-level EFI management option for clean engine control configurations.

FEATURES

• Robust, IP67-rated waterproof housing safeguards electronics from harsh engine bay environments (with USB cover fitted)

• Flexible engine calibration supporting multi-fuel profiles including E85 Flex Fuel, Petrol (Gasoline), and Methanol

• Intelligent closed-loop O2 control and self-learning closed-loop idle system for absolute consistency and drivability

• Advanced Auto Tune functionality implements short and long-term learning corrections across fuel and idle parameters

• Single-sensor VVT engine control integration natively supporting platforms like Toyota 1JZ/2JZ, 1ZZ/2ZZ, Mazda MX-5 NB, and Ford Duratec


SPECIFICATIONS

• Engine Compatibility: 1 to 12 cylinder or 2 to 3 rotor configurations (Normally aspirated or forced induction)

• Load Sensing Types: Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF)

• Outputs: Up to 6 x Fuel Injection (Outputs 1-6 Peak and Hold 0-8A Peak / 0-2A Hold), 6 x Ignition, 5 x Digital Pulsed

• Inputs: 2 x Engine Position (extensive trigger support), 2 x Digital Pulsed, 2 x Analog Voltage, 1 x TPS, 1 x CTS, 1 x ATS

• On-Board MAP Sensor: Internal 3-bar sensor rated up to 200kPa of boost (2bar / 29psi)

• Communications: 1 x Dedicated CAN Bus network for Haltech CAN expansion channels

• Data Logging Parameters: 512Kb internal storage capacity tracking up to 10 channels at a maximum sampling rate of 20ms


WHAT IS INCLUDED

• 1x Haltech Elite 750 Standalone ECU

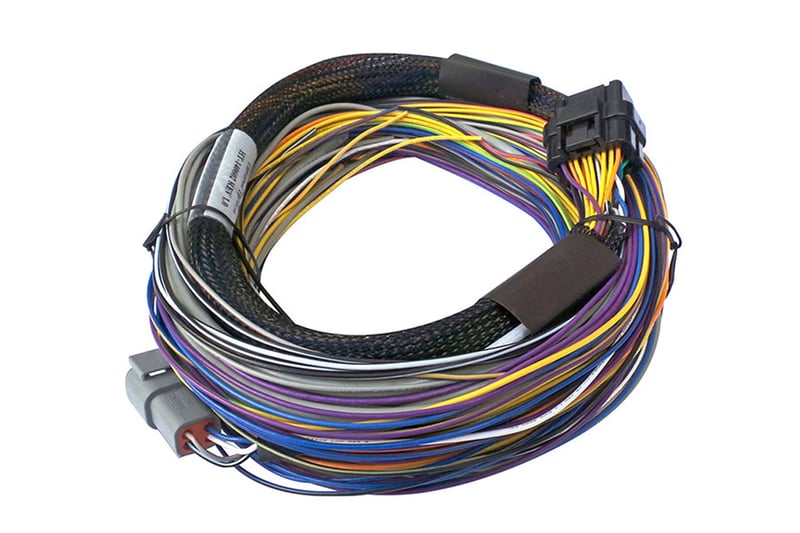

• 1x 2.5m (8 ft) Basic Universal Wire-In Flying Lead Harness Kit

• 1x Waterproof USB Sealing Cap & 1x USB Programming Cable


PART NUMBER

• HT-150602

FITMENT

• Universal wire-in application. Single-connector ECU kit ideal for basic 6-cylinder or 2-rotor engines, basic EFI conversions, or vehicles looking for non-drive-by-wire standalone engine regulation.
