OVERVIEW

Take your engine management to a brand new level with a premium, cutting-edge standalone solution. The Haltech Elite 2500 is a high-performance ECU meticulously engineered for serious tuners and performance enthusiasts worldwide. This package features the Elite 2500 ECU bundled with a complete matching Plug and Pin Set, giving you the perfect blank-canvas foundation to construct a custom, high-end wiring harness from scratch. Packed with advanced architecture like dynamic drive-by-wire capability, quad variable cam control, and dual-channel knock detection, it effortlessly elevates your vehicle's tuning potential with factory-level calibration precision.

FEATURES

• Environmentally sealed IP67-rated waterproof case provides maximum protection against harsh elements

• Equipped with 8 x Fuel Injection and 8 x Ignition outputs alongside 28 digital outputs for maximum flexibility

• Advanced Drive-By-Wire (DBW) Electronic Throttle Control for precise response and intake calibration

• Variable Cam Control allows independent management over up to 4 distinct camshafts

• Dual-Channel Knock Control utilizing intelligent FFT analysis for accurate detonation safety mapping

• Advanced closed-loop auto-tuning algorithms for short-term and long-term fuel, ignition, and boost adjustment updates

• Fully unlocked out of the box with zero hidden licensing charges or structural fees for advanced tuning software features


SPECIFICATIONS

• Outputs / Inputs: 8 x Fuel Injection Outputs, 8 x Ignition Outputs, 28 x Digital Outputs, & 10 x Analogue Voltage Inputs

• Engine Position Inputs: 6 x Pre-configured inputs supporting extensive trigger types

• Diagnostics & Memory: Full OBDII diagnostic functionality (set/clear codes) with comprehensive internal memory logging

• Communications: Onboard high-speed USB laptop connection alongside Dual CAN Bus network communication arrays

• Fueling Configurations: Up to 4-stage sequential injection patterns with automatic multi-fuel and E85 Flex Fuel capabilities


SCIENCE

Unlike restrictive factory controllers or basic imitations, the Elite 2500 introduces advanced user-definable 5D Tuning matrices. By correlating engine coordinates dynamically across variable channels—such as gear position, active wheel speed, elapsed time, or camshaft angles—the ECU processes live calculations instantaneously. This allows advanced anti-lag and multi-level engine protection systems to monitor sensor thresholds directly, safeguarding your investment against dangerous cylinder pressure fluctuations and maintaining optimal combustion efficiency over time.

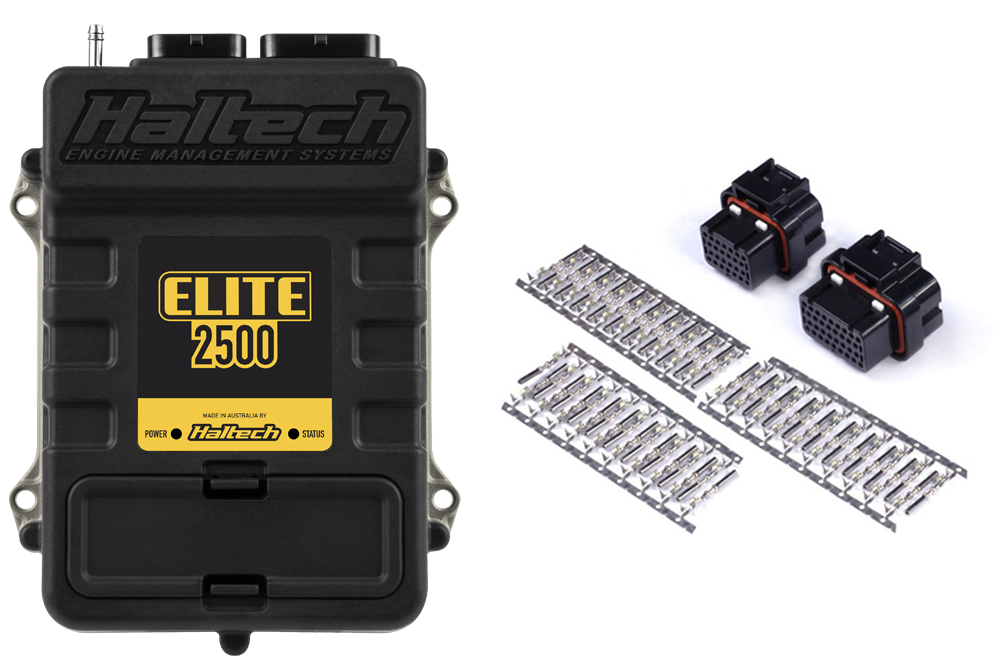

WHAT IS INCLUDED

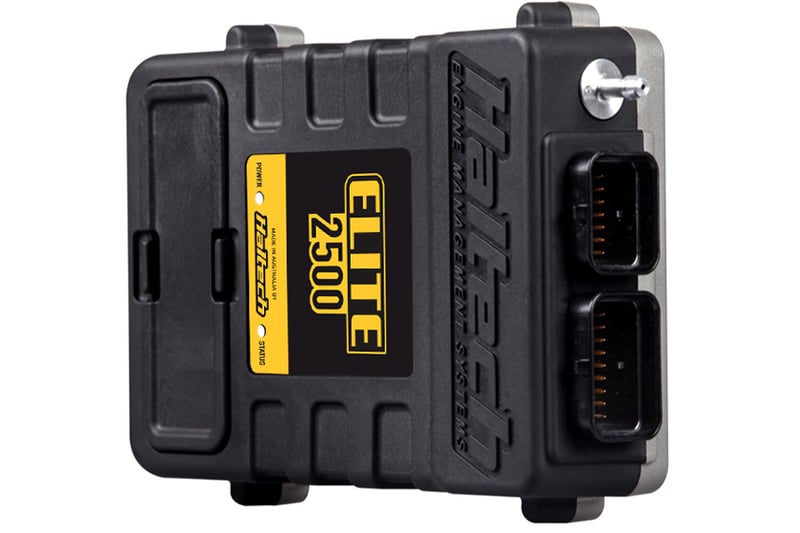

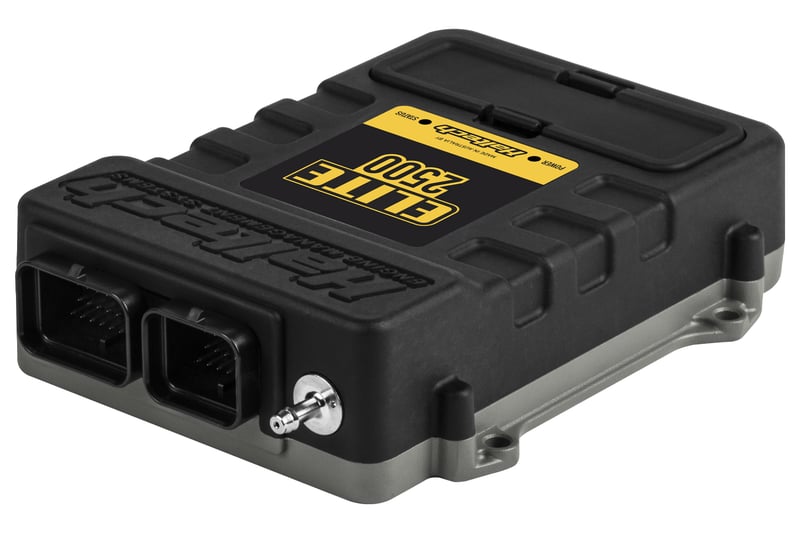

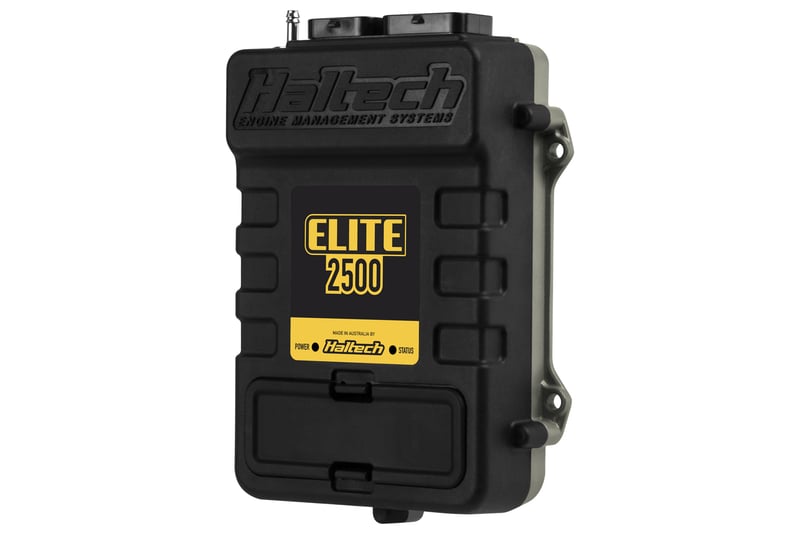

• 1x Haltech Elite 2500 Standalone ECU Unit with DBW and Race Functions

• 1x Complete Matching AMP Plug and Pin Set (Unterminated connectors for custom loom construction)

• 1x USB Software Key & Heavy-Duty USB Laptop Programming Connection Cable


PART NUMBER

• HT-151301

FITMENT

• Recommended for universal 4, 6, and 8 cylinder engines, or 2, 3, and 4 rotor engine configurations (Naturally Aspirated or Forced Induction) requiring custom-tailored wire routing
