OVERVIEW

The Haltech Elite 1500 takes professional standalone engine management to the next level. Featuring an environmentally sealed, IP67-rated waterproof housing, this advanced system supports drive-by-wire throttle control, multi-cam variable timing, and dual-channel knock detection. Supplied with a complete plug and pin set rather than a pre-terminated loom, this kit is the ideal choice for builders creating a completely bespoke wiring harness or modifying an existing factory setup.

FEATURES

• Robust IP67 waterproof sealed housing provides outstanding defense against thermal and moisture elements in demanding conditions

• Integrated Drive-By-Wire (DBW) electronic throttle control delivers highly precise and responsive air tracking profiles

• Dual CAN Bus connectivity establishes simultaneous integration for both factory vehicle protocols and external Haltech expansion hubs

• Comprehensive auto-tuning engine control capabilities handle long and short-term learning curves for fuel, ignition, boost, and idle parameters

• Highly accurate single-channel knock control utilizes ultra-fast digital filtering to maximize ignition protection

• High-end safety architecture featuring multi-level engine protection strategies with customizable sensor cutoffs


SPECIFICATIONS

• Engine Profiles: Supports 1 to 12 cylinder or 2-rotor layouts (Normally Aspirated, Forced Induction, Multi-Fuel, and E85 Flex Fuel compatible)

• Outputs: 4 x Programmable Peak and Hold Fuel Injection, 4 x Ignition, 20 x Digital Outputs

• Inputs: 10 x Analog Voltage, 6 x Synchronized Engine Position / Trigger Inputs

• Variable Cam Configuration: Multi-cam variable valve timing independently managing up to 4 distinct camshafts

• Diagnostic Capacity: Fully OBDII functional system for clearing diagnostic trouble codes and populating live system telemetry

• Data Logging Parameters: High-speed internal memory allocation running up to 40 channels concurrently at sample rates down to 5ms

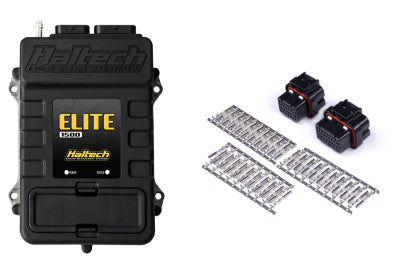

WHAT IS INCLUDED

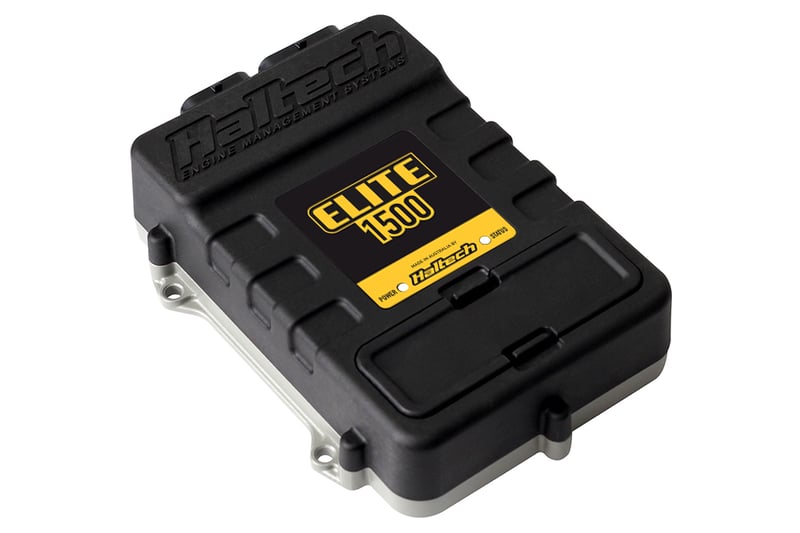

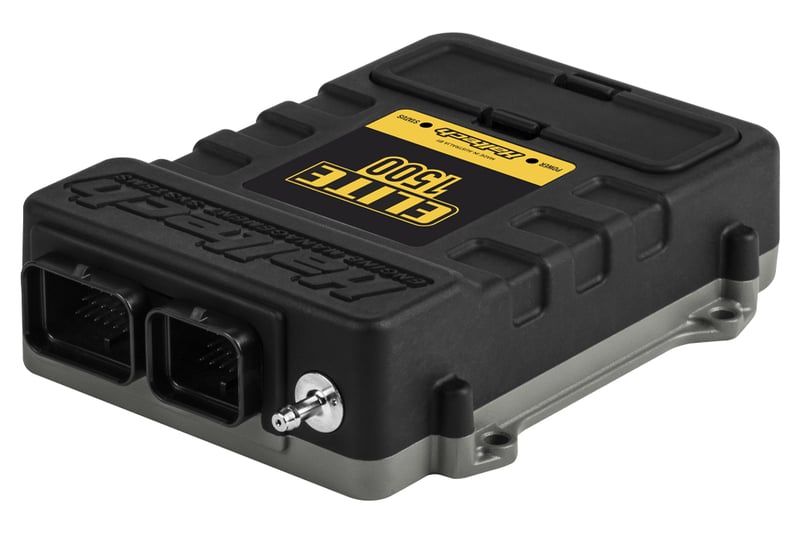

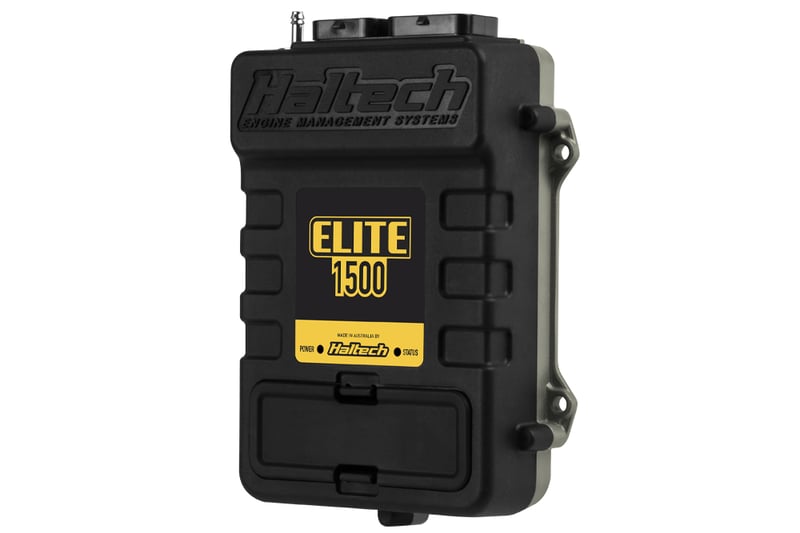

• 1x Haltech Elite 1500 Standalone ECU

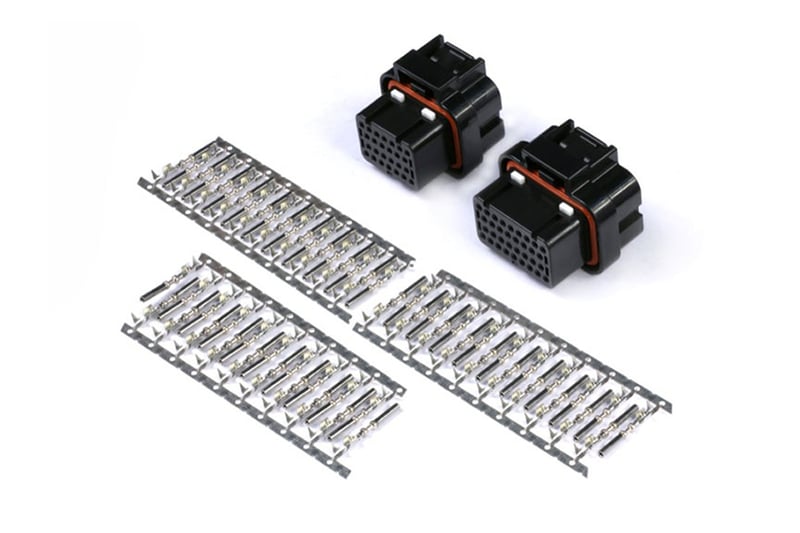

• 1x Full Matching AMP 26 & 34-Pin Plug and Pin Kit (un-terminated)

• 1x USB Programming Cable & USB Software Drive Key


PART NUMBER

• HT-150901

FITMENT

• Universal standalone application. Engineered for professional installers constructing specialized or tucked custom electronic engine harnesses from scratch for 4-cylinder, single-DBW, or 2-rotor racing configurations.
