OVERVIEW

The GReddy Oil Pan Baffle Plate is a must-have upgrade for ZN8 Toyota GR86 and ZD8 Subaru BRZ owners who push their cars hard on track. Designed specifically for the FA24 engine, this stainless steel baffle plate helps maintain oil control under aggressive driving, reducing the risk of oil starvation and engine damage. Pair it with the Killer B Motorsport Oil Pickup Pre-Filter and MOTUL 8100 ECO-nergy 5W30 FA20/FA24 Oil Maintenance Kit 2013+ FRS/BRZ/86 2022+ BRZ/GR86 for a complete oiling solution.

FEATURES

• Stainless steel construction for durability and heat resistance
• Controls oil movement under hard braking, acceleration, and cornering

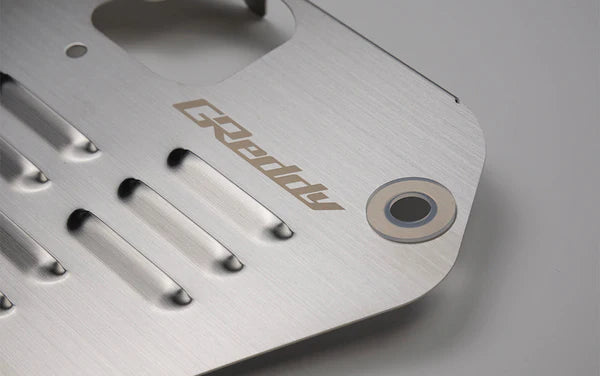

• Multiple louver design ensures smooth oil return to the sump
• Prevents oil starvation and reduces risk of engine blowout under high G loads

SPECIFICATIONS

• Material: Stainless Steel
• TRUST Code: 13515903
• Application: Oil Pan Baffle Plate for FA24 engine

SCIENCE

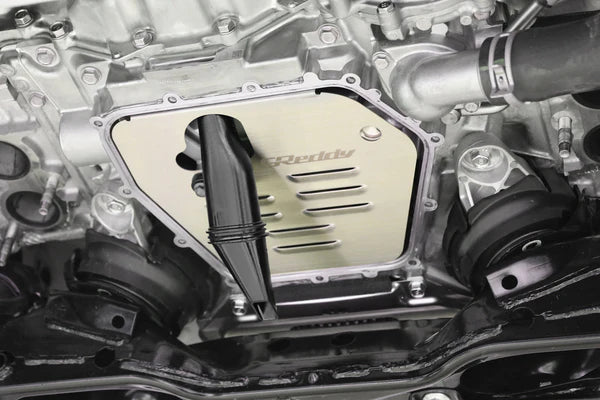

The FA24 engine’s oiling system allows a large volume of oil in the sump to flow into the front chain cover under intense braking. This can cause the oil strainer to run dry and oil pressure to drop, leading to catastrophic engine failure. The GReddy Oil Pan Baffle Plate solves this issue by preventing excessive oil shift during acceleration, deceleration, and cornering. Its integrated louvers guide oil smoothly back to the sump, keeping the pickup submerged and oil pressure stable.

WHAT IS INCLUDED

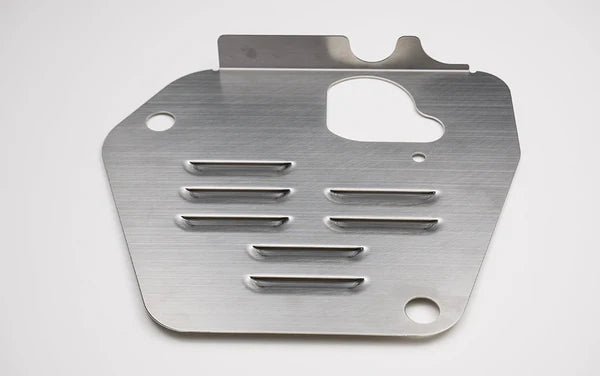

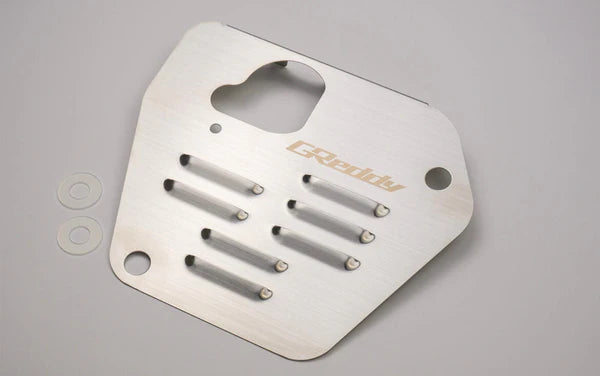

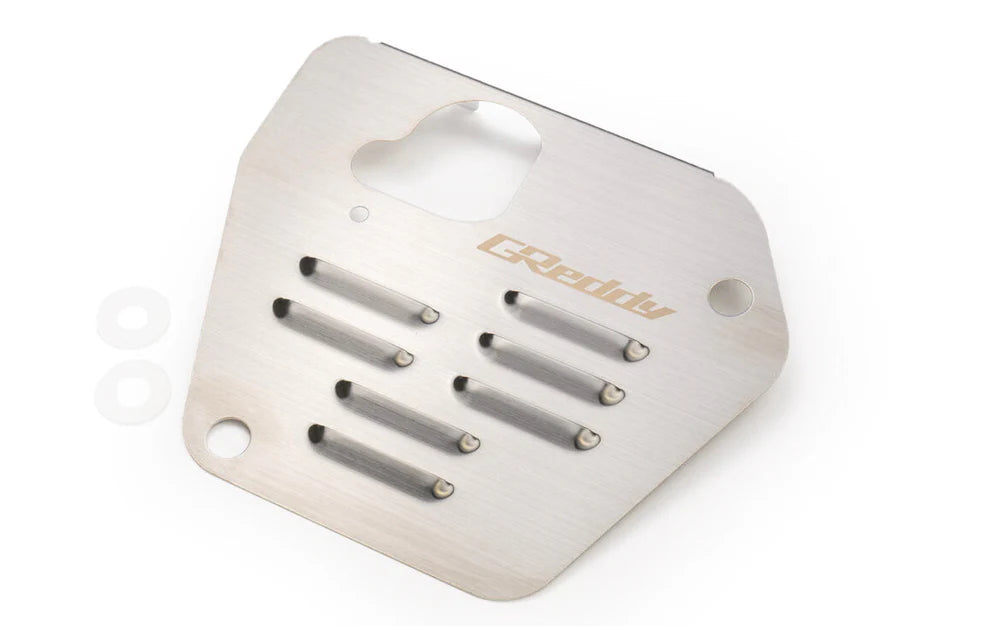

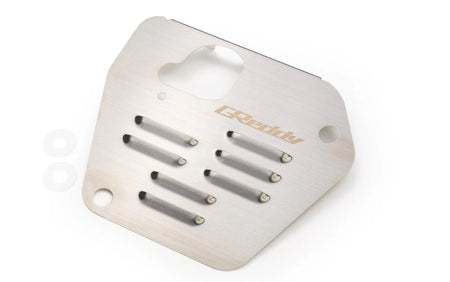

• GReddy Stainless Steel Oil Pan Baffle Plate

FITMENT

• Vehicle Models:
• Toyota GR86 (ZN8) – 2021.10+
• Subaru BRZ (ZD8) – 2021.08+
• Engine: FA24
