Evolved Camber Plates for the AE86

Techno Toy Tuning

  • 28500

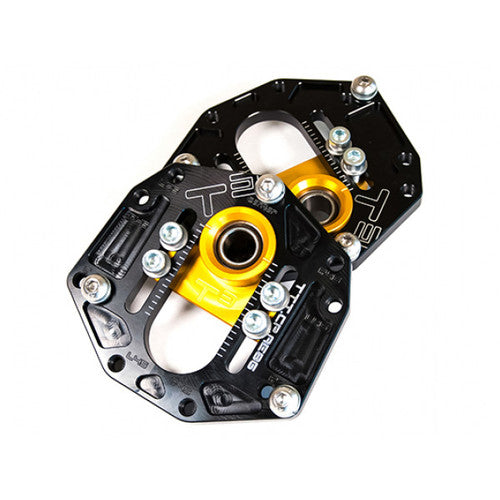

Introducing our new Evolved Camber Plates for the AE86! We've updated the design of our original Camber Plates to now allow for caster adjustment as well! You can install them as normal camber plates or rotate them 45 degrees to benefit from the new caster adjustment feature!!!

The bearings on these are inserted into the aluminum blocks with what is called an "interference fit". What that means is that the holes that the bearings go into are actually a hair smaller than the bearing going into them. What we do is freeze the bearings and heat up the aluminum blocks to 200 degrees. This makes the bearings shrink a bit and the blocks expand a bit, and then they slip right in!

Once the temperature equalizes on both, those bearings are IN THERE! They will not move around or cause you any "clunking" noises. They are also held in by a keeper ring, to ensure they don't pull out of the bottom of the blocks.



If you are running coilovers, you'll want to check out our Camber Plate Upper Hat System for 2.5" coilovers for use with our T3 camber plates! These are absolutely necessary to properly mate the camber plates to coilovers.



TECHNICAL

  • All aluminum plates, and center blocks
  • Gloss Black Ano and Gold
  • Precision oversized spherical bearings
  • Bearings are Teflon lined and self lubricating
  • Comes with all mounting hardware and new upper nuts for mounting in the strut tower.
  • Machined T3 Logo and tick marks for marking your camber settings
