OVERVIEW

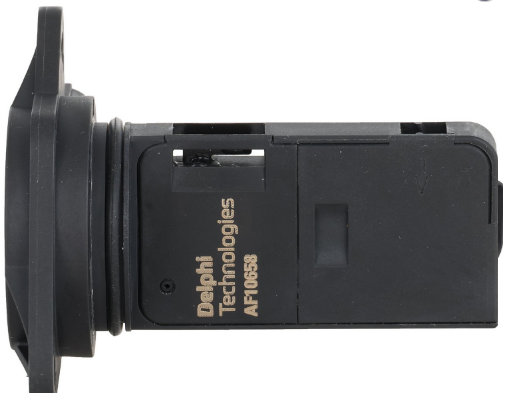

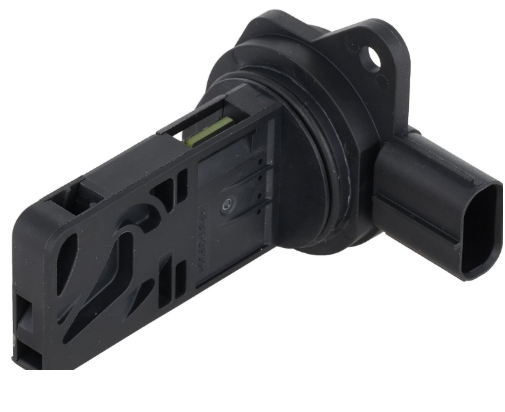

Restore precise air-fuel ratios and crisp throttle response with the Delphi Mass Air Flow (MAF) Sensor. Built as a 100% new, OE-engineered replacement, this 4-pin probe sensor accurately measures incoming air volume and temperature to deliver fast, consistent signal voltage directly to your engine control unit. Tailored specifically for modern high-performance platforms—including the Toyota GR86 (ZN8), Subaru BRZ (ZD8), and Toyota GR Corolla—the Delphi AF10658 eliminates hesitations, lean air/fuel trims, and check engine lights caused by contaminated or degraded factory sensors.

FEATURES

• Direct OEM Replacement: Direct plug-and-play fitment for Toyota GR86, GR Corolla, and Subaru BRZ (ZN8/ZD8/G16E platforms).
• 100% All-New Construction: Built entirely from new, calibrated components (never remanufactured) for ultimate reliability and signal accuracy.
• Fast Thermal Sensing Element: High-sensitivity element responds instantly to rapid intake airflow changes during aggressive acceleration.
• Integrated IAT Sensor: Combined airflow and Intake Air Temperature (IAT) monitoring in a single compact 4-pin probe unit.
• Seamless Drop-In Fit: Mounts directly into the factory air intake pipe using the original 2-bolt flange and electrical connector.

WHAT IS INCLUDED

• 1x Delphi Mass Air Flow Sensor Probe (O-Ring / Seal Included)

SPECIFICATIONS

• Terminal Quantity: 4-Pin Male Terminal
• Connector Gender: Female
• Housing Included: No (Sensor Probe Only)
• Operating Voltage: 5.0 VDC
• Color / Finish: Black ABS Plastic

FITMENT

• 2022–2026 Toyota GR86 (2.4L FA24 / ZN8)
• 2022–2026 Subaru BRZ (2.4L FA24 / ZD8)
• 2023–2026 Toyota GR Corolla (1.6L Turbo G16E-GTS / GZEA14)
• 2018–2025 Toyota Camry (2.5L / 3.5L)
• 2019–2025 Toyota RAV4 (2.5L)
• 2019–2025 Toyota Corolla (1.8L / 2.0L)
• 2019–2025 Subaru Forester / Outback / Legacy / Crosstrek (2.0L / 2.5L / 2.4L Turbo)
