OVERVIEW

Keep intake air temperatures under control and combat heat soak with the CSF High Performance Stepped Core Intercooler System for the 2023+ Toyota GR Corolla (GZEA14H) and 2020+ GR Yaris (GXPA16). Co-engineered with Jackson Racing, this drop-in upgrade features an innovative stepped-core design that maximizes all available space behind the front bumper—delivering a massive 45% increase in core volume and a 73% increase in surface area without requiring bumper trimming or crash bar removal. Finished in a stealth black coating, this kit includes upgraded 2.5-inch 5-ply silicone hoses and heavy-duty clamps to handle high boost loads on track and street.

FEATURES

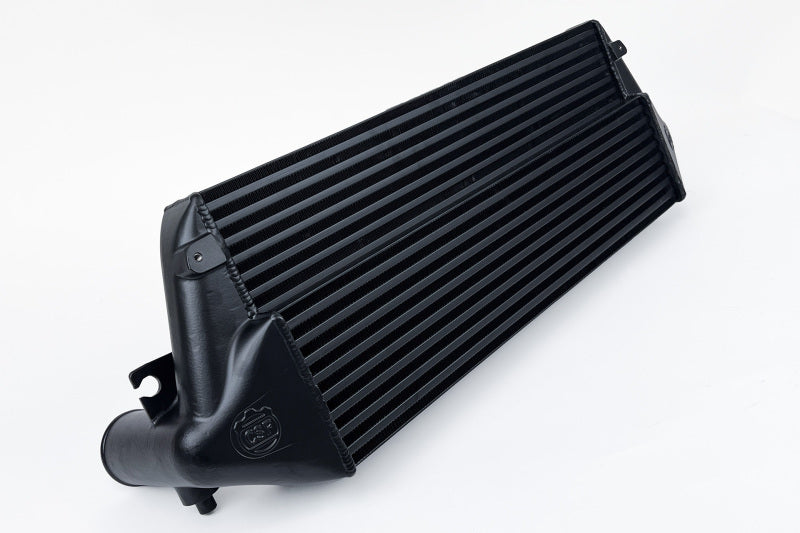

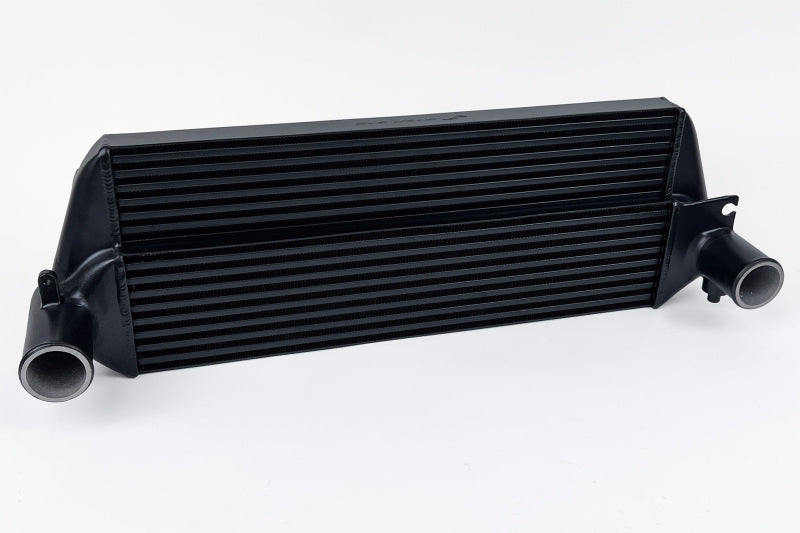

• Innovative Stepped-Core Design: Increases core volume by 45% and surface area by 73% over stock to drastically eliminate heat soak.
• True Drop-In Fitment: Mounts in the factory location using stock mounting points without cutting or modifying the front crash bar.

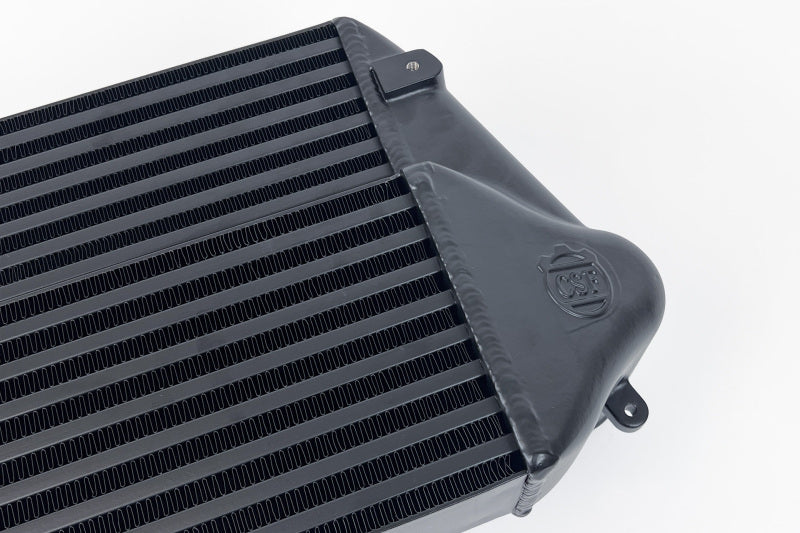

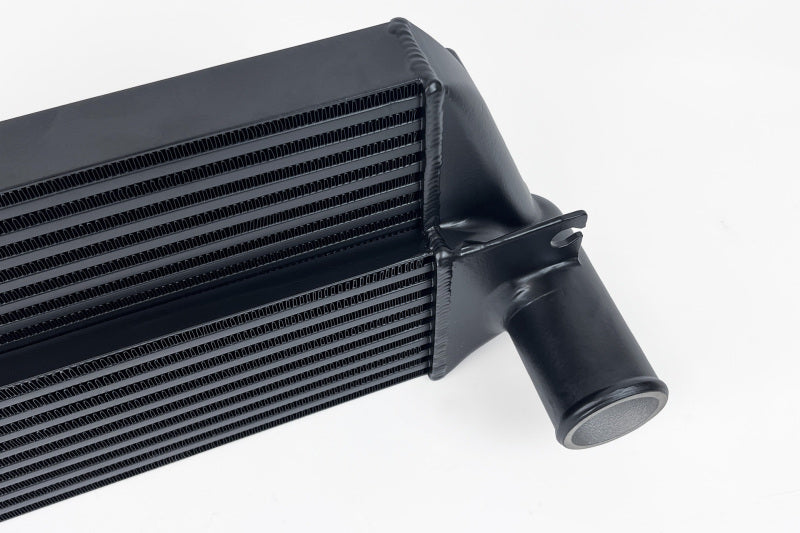

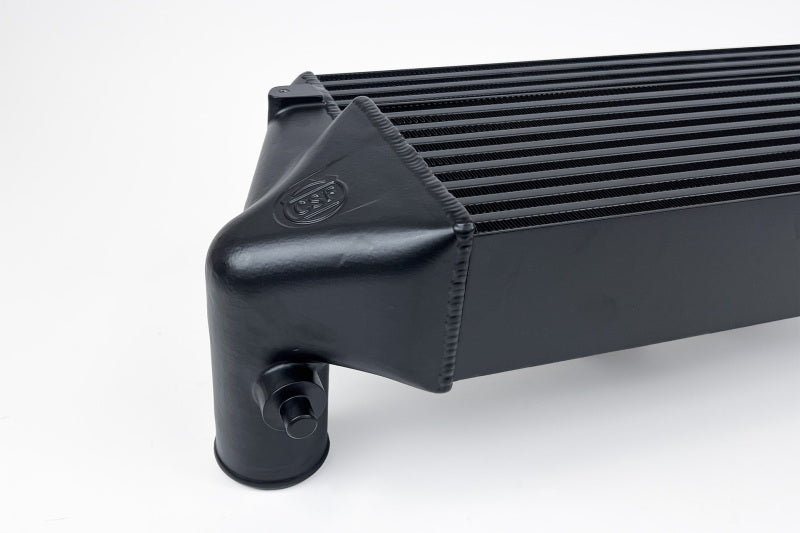

• Cast Aluminum End Tanks: 100% TIG-welded cast aluminum end tanks optimize charge-air airflow distribution while handling extreme boost pressures.
• Upgraded Silicone Hoses & Clamps: Includes 5-ply 2.5-inch (63.5mm) silicone hoses that step up from the factory 1.85-inch connections for improved flow.
• Stealth Black Finish: Features a protective, thermal-dispersive black powder coat for a subtle look behind the front grille.

WHAT IS INCLUDED

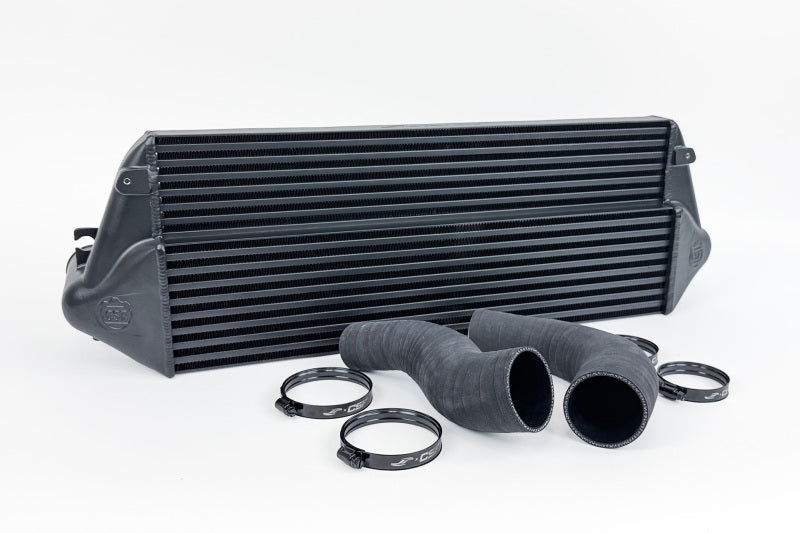

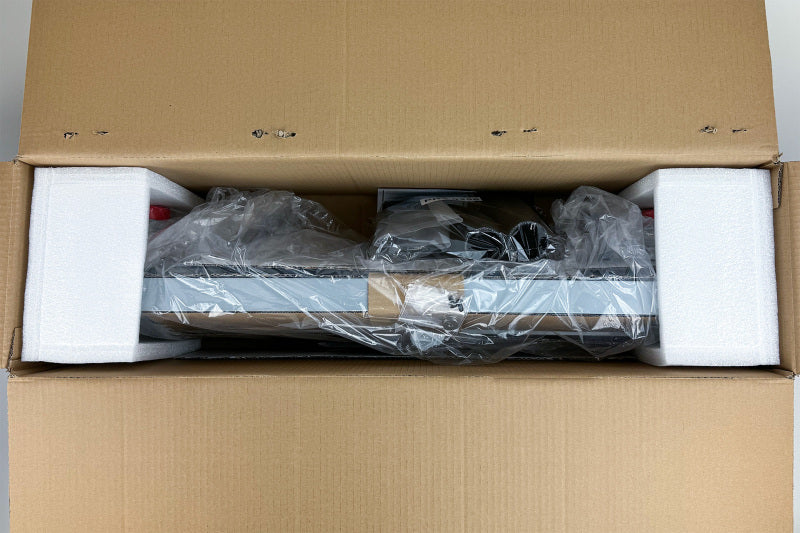

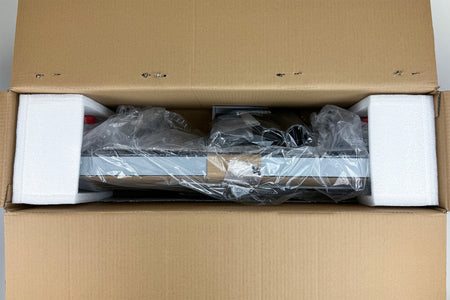

• 1x CSF High-Performance Stepped Core Intercooler Assembly (Black)

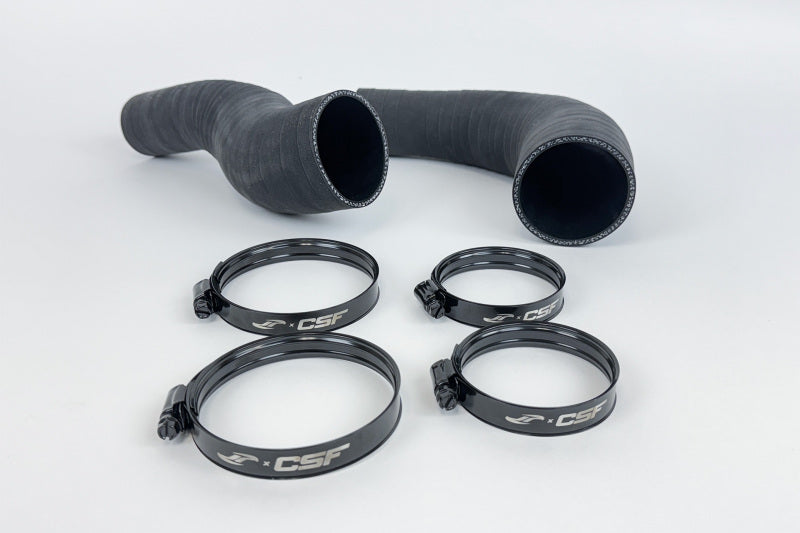

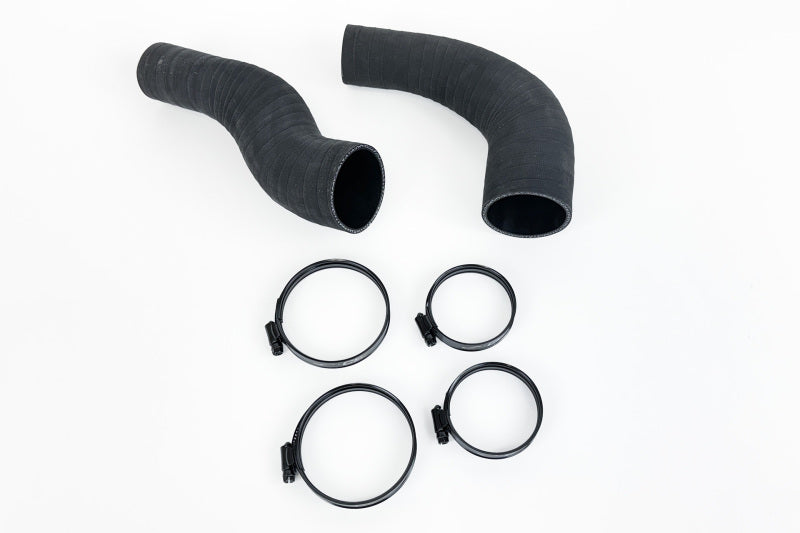

• 2x 5-Ply 2.5-Inch Silicone Charge Air Hoses
• Complete Set of Heavy-Duty Bead-Lock Hose Clamps

PART NUMBERS

• Manufacturer Part Number: 8285B

SPECIFICATIONS

• Core Type: High-Efficiency Tube & Fin Stepped Core
• Core Volume: +45% over OEM
• Surface Area: +73% over OEM
• Inlet / Outlet Diameter: 2.50" (63.5mm)
• End Tank Material: Cast Aluminum (100% TIG-Welded)
• Finish: Stealth Black Powder Coat

FITMENT

• 2023+ Toyota GR Corolla (GZEA14H / G16E-GTS)
• 2020+ Toyota GR Yaris (GXPA16 / G16E-GTS)
• Note: Factory plastic air ducting requires minor trimming during installation for proper alignment with the upper stepped core.
