OVERVIEW

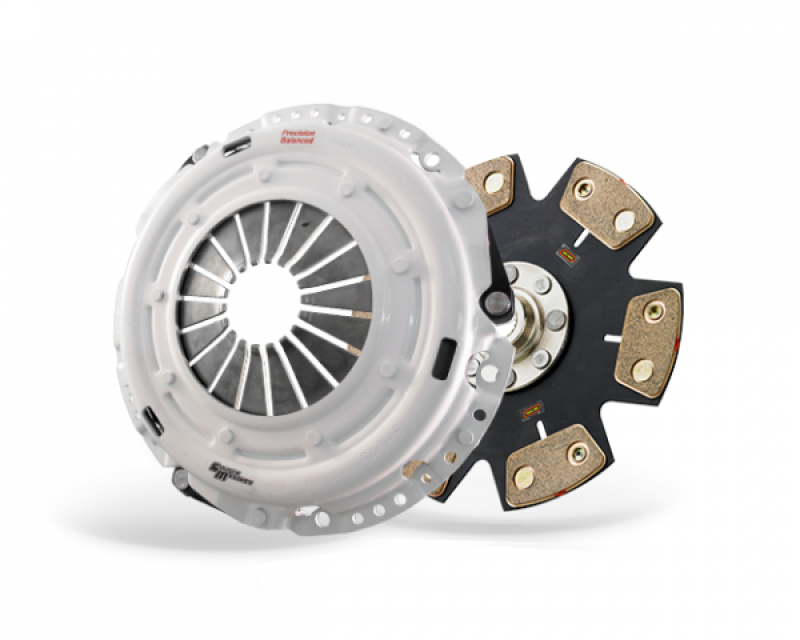

Engineered strictly for competition use. The Clutch Masters FX500 6-Puck clutch kit is a dedicated, race-oriented solution designed to transfer maximum power under extreme racing conditions. Stripping away any damper components for immediate engine engagement, this solid, unsprung racing assembly is engineered to handle massive holding loads on high-boost drag strip runs or intensive time attack tracks. It delivers rapid engagement and an unyielding bite that zero street clutches can match.

FEATURES

• Extreme Torque Capacity: Comfortably handles up to 500 ft/lbs of torque at the flywheel, built specifically for heavily modified engines pushing massive boost.
• Solid Rigid 6-Puck Disc: Features an unsprung center design combined with premium ceramic button friction material for instant, direct power transfer without damping flex or delay.
• Power Plus II Pressure Plate: Employs Clutch Masters' heavy-duty high-clamping force design to maintain absolute plate clamping load under extreme track heat and high-RPM shifting cycles.
• Race-Ready Architecture: Maximizes thermal dissipation and resists slippage during aggressive, repeated launch-control scenarios on track surfaces.

SPECIFICATIONS

• Torque Rating: 500 ft/lbs capacity at the flywheel
• Holding Performance: Capable of managing up to a 200–400% torque increase over the factory system
• Disc Type: Solid Unsprung (Rigid) 6-Puck Ceramic Button Disc
• Pressure Plate: Extreme-Duty Power Plus II Assembly
• Flywheel Requirement: Must be paired with a Clutch Masters OEM-Style Single-Mass Performance Flywheel
• Operating Profile: Race Only (Not recommended for daily street driving due to aggressive engagement and low-speed chatter)

WHAT IS INCLUDED

• 1x Clutch Masters Power Plus II Extreme-Clamp Pressure Plate
• 1x FX500 Series Solid 6-Puck Ceramic Rigid Clutch Disc
• 1x Premium Spline Alignment Tool
• 1x Alignment Pilot Bearing / Release Bearing Components

PART NUMBER

• CLM16616-HDB6

FITMENT

• 2023-2026 Toyota GR Corolla
