OVERVIEW

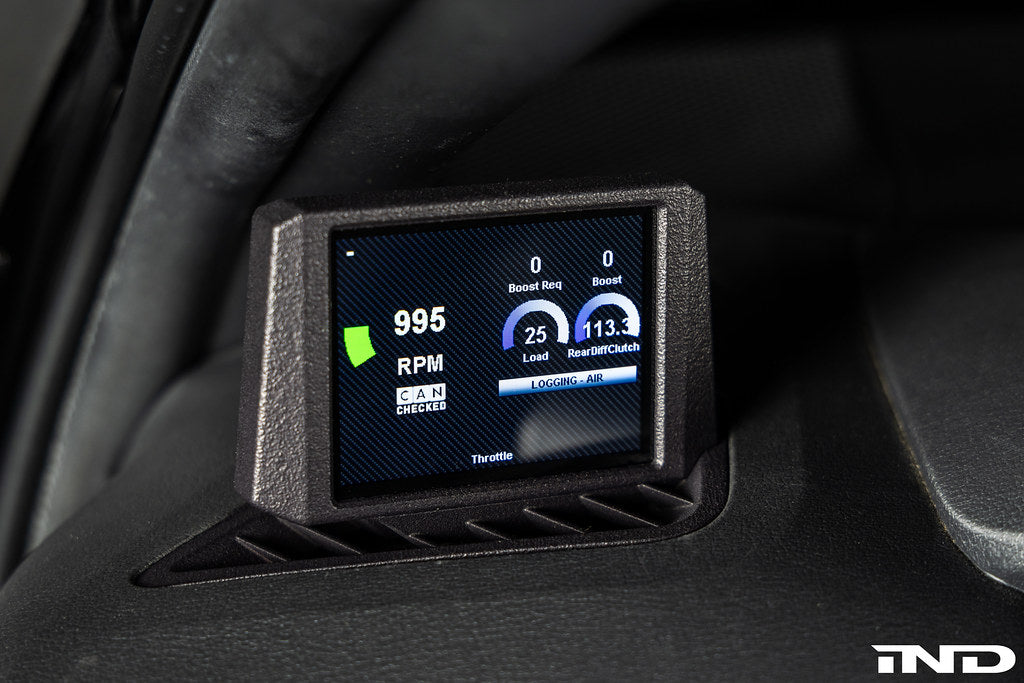

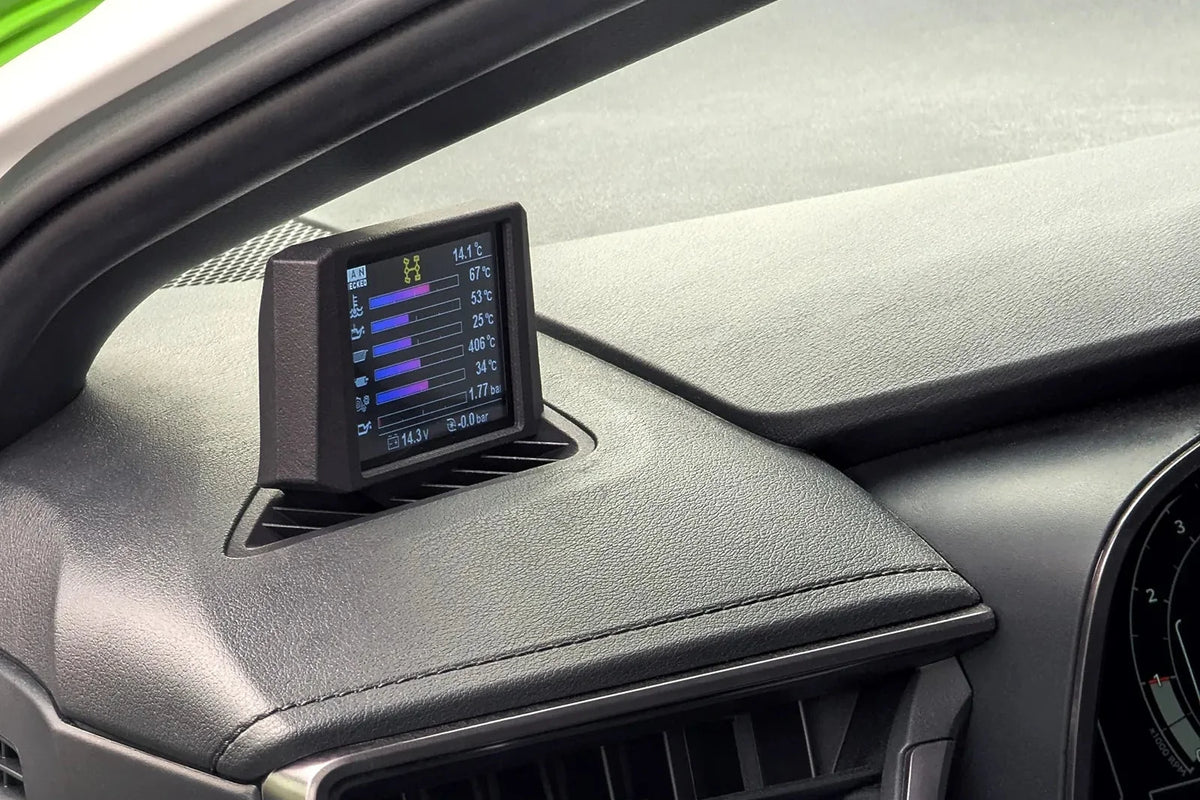

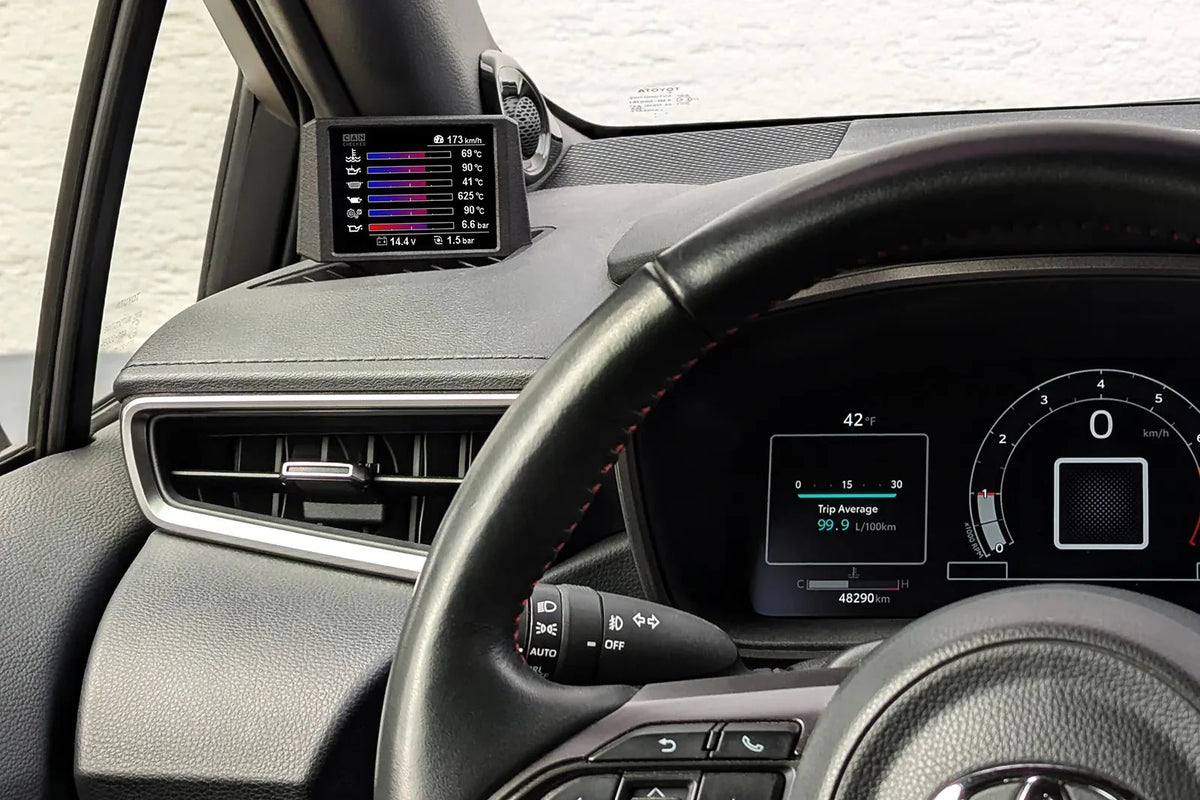

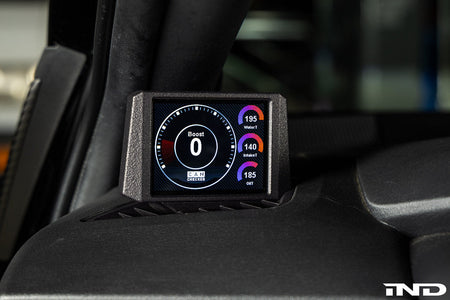

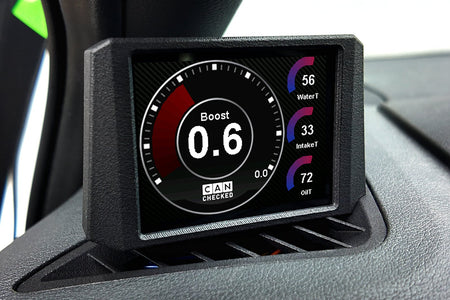

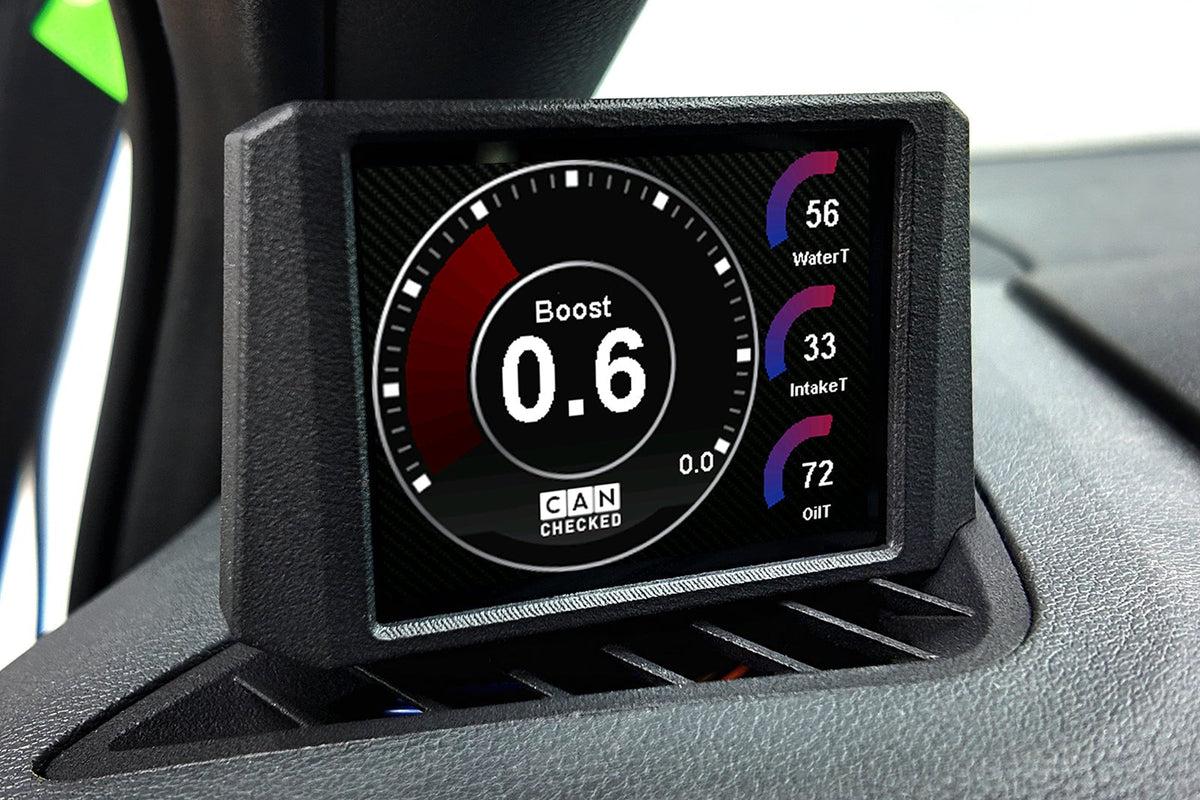

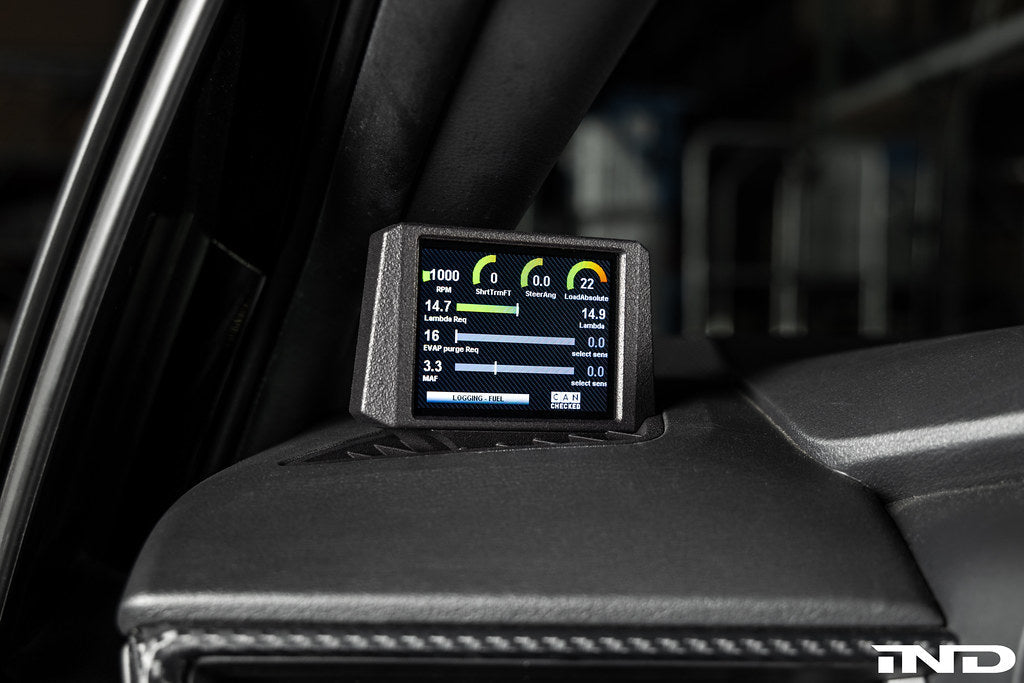

The CANchecked MFD28 Gen2 Multi-Function Display transforms a factory air vent into a fully integrated digital monitoring and diagnostics center for the Toyota Corolla E210 platform. Designed specifically for E210 applications, the MFD28 Gen2 delivers OEM-style fitment while providing access to extensive vehicle data, performance metrics, and advanced customization features directly within the driver's field of view.

Unlike conventional gauge solutions, the MFD28 Gen2 utilizes a high-resolution touchscreen interface that allows users to navigate through multiple pages using intuitive swipe gestures. The vehicle-specific vent assembly maintains usable climate airflow while seamlessly integrating the display into the dashboard interior. Through direct CAN Bus communication and manufacturer-specific protocols, the MFD28 Gen2 accesses a wide range of engine and vehicle parameters—providing real-time diagnostic-level data directly from the ECU.

Built for enthusiasts who demand comprehensive monitoring, the display supports custom page creation, internal SD card data logging, analog sensor expansion inputs, direct ethanol content monitoring, integrated performance acceleration timing, and custom CAN Bus switching capabilities. Whether on a daily-driven Corolla, performance build, or track-focused GR Corolla, the MFD28 Gen2 delivers clean, functional, and precise engine telemetry.

FEATURES

• Seamless Vent Integration: Vehicle-specific vent assembly integrates cleanly into the E210 dashboard while maintaining usable cabin airflow.
• High-Resolution Touchscreen: Responsive swipe gesture navigation supporting up to 10 user-configurable pages and 64 widgets per page.
• Deep CAN Bus Integration: Real-time monitoring of oil temp, boost pressure, lambda values, fuel pressure, intake temp, and ignition corrections.
• Sensor Input Expansion: Includes 4 analog inputs and a dedicated channel for direct ethanol content and temperature monitoring.
• Data Logging & Diagnostic Tools: Internal Micro SD logging, built-in CAN logger/viewer, and DTC reader to read and clear engine fault codes.
• Performance Meter & Shift Light Compatibility: Measures 0-100, 100-200, and 0-200 performance times; fully supports external SLM08 shift light modules.
• Fully Customizable UI: Drag-and-drop widget placement, user-defined warning alarms, math channels, and custom startup animations.

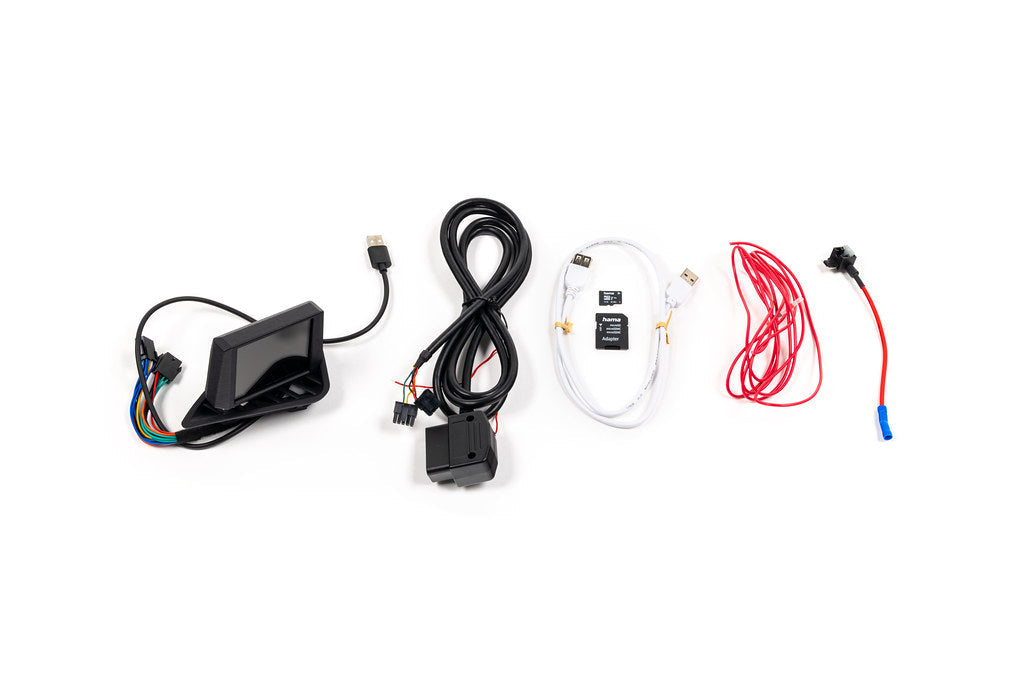

WHAT IS INCLUDED

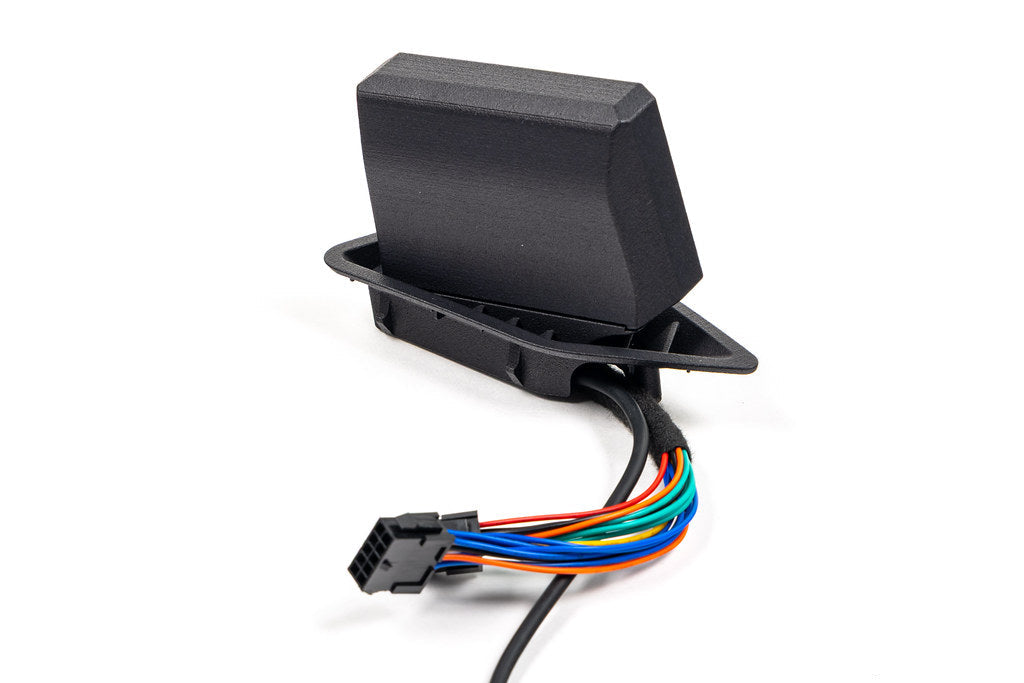

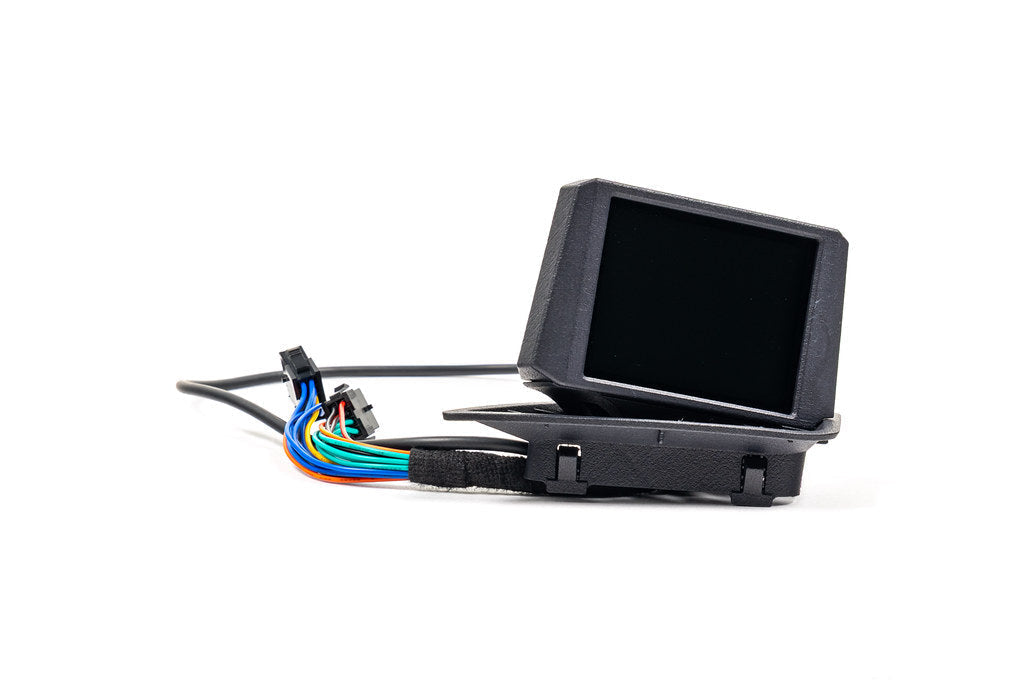

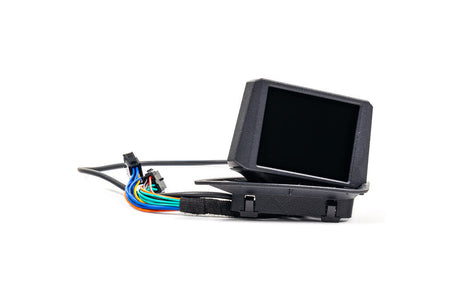

• (1) CANchecked MFD28 Gen2 Display Integrated into E210 Vent Assembly

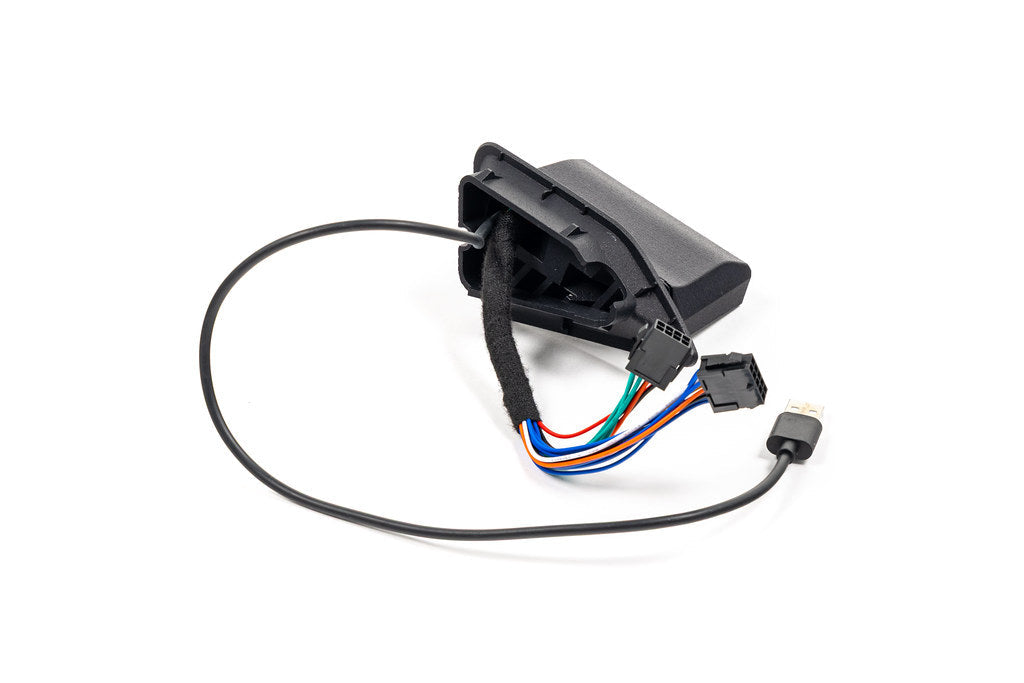

• (1) Vehicle-Specific Connection Harness
• (1) Micro SD Card (Pre-installed in display)
• (1) SD Card Adapter

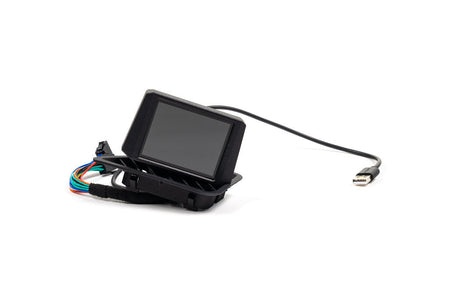

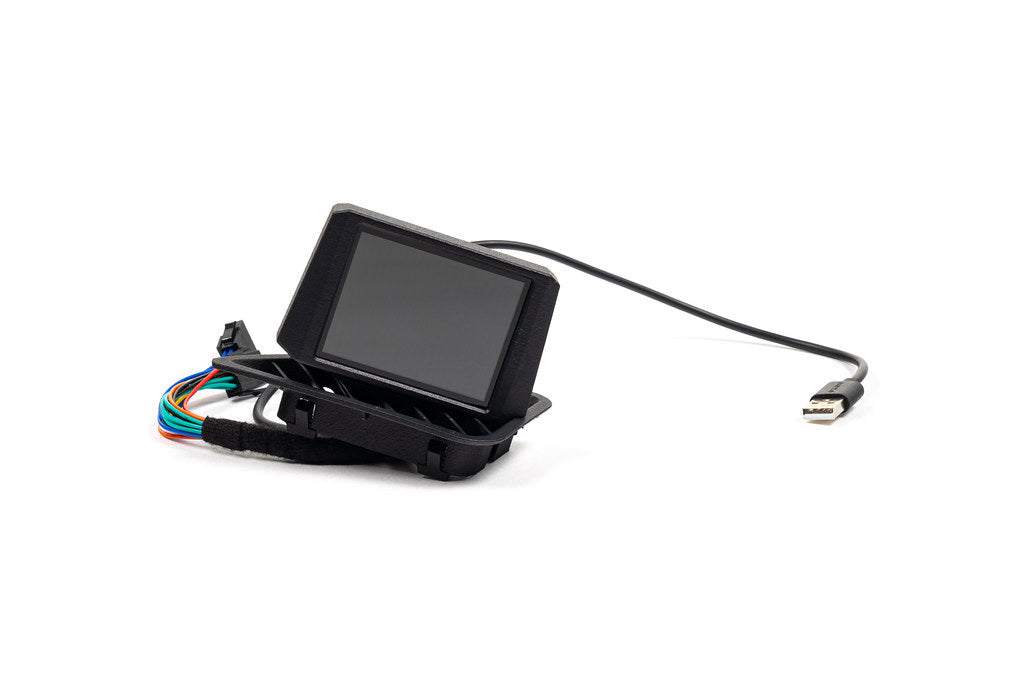

• (1) USB Data Cable
• (1) Anti-Reflection Display Protection Film
• (1) Quick Start Guide

SPECIFICATIONS

• Display Size: 2.8" Touchscreen Display
• Analog Inputs: 4 Channels
• Ethanol Sensor Input: 1 Dedicated Channel
• Data Storage: Micro SD Card (Included)
• Dimming: Automatic vehicle illumination dimming support
• Installation Time: 30 - 60 Minutes
• Difficulty: Easy / Plug & Play

FITMENT

• 2023+ Toyota GR Corolla (E210 Platform)
• 2019+ Toyota Corolla Hatchback / Sedan (E210 Platform)
