BGRS Swaybar Geometry Correction Bracket 2013+ FRS/BRZ/86 & 2022+ GR86

Regular price $165.00

Share this part with a friend in need!

--------------------------------------------------------------
--------------------------------------------------------------

OVERVIEW

Developed through a collaboration between Battle Garage Racing Service and tested by Annex Suspension Group, the BGRS ZN6/Z8 Swaybar Geometry Correction Bracket addresses a known suspension issue on the 1st and 2nd generation BRZ/86/GR86 chassis. Lowered cars often suffer from rear sway bar binding due to poor geometry—this bracket fixes that by repositioning the sway bar for optimal articulation and grip. Backed by track-tested results and real-world feedback, this is one of the most effective suspension mods for the price.

FITMENT NOTE:

  • 2017-2021 Subaru BRZ (NEED TO CONFIRM FITMENT)

  • 2022+ Subaru BRZ (NEED TO CONFIRM FITMENT)

--------------------------------------------------------------

FEATURES

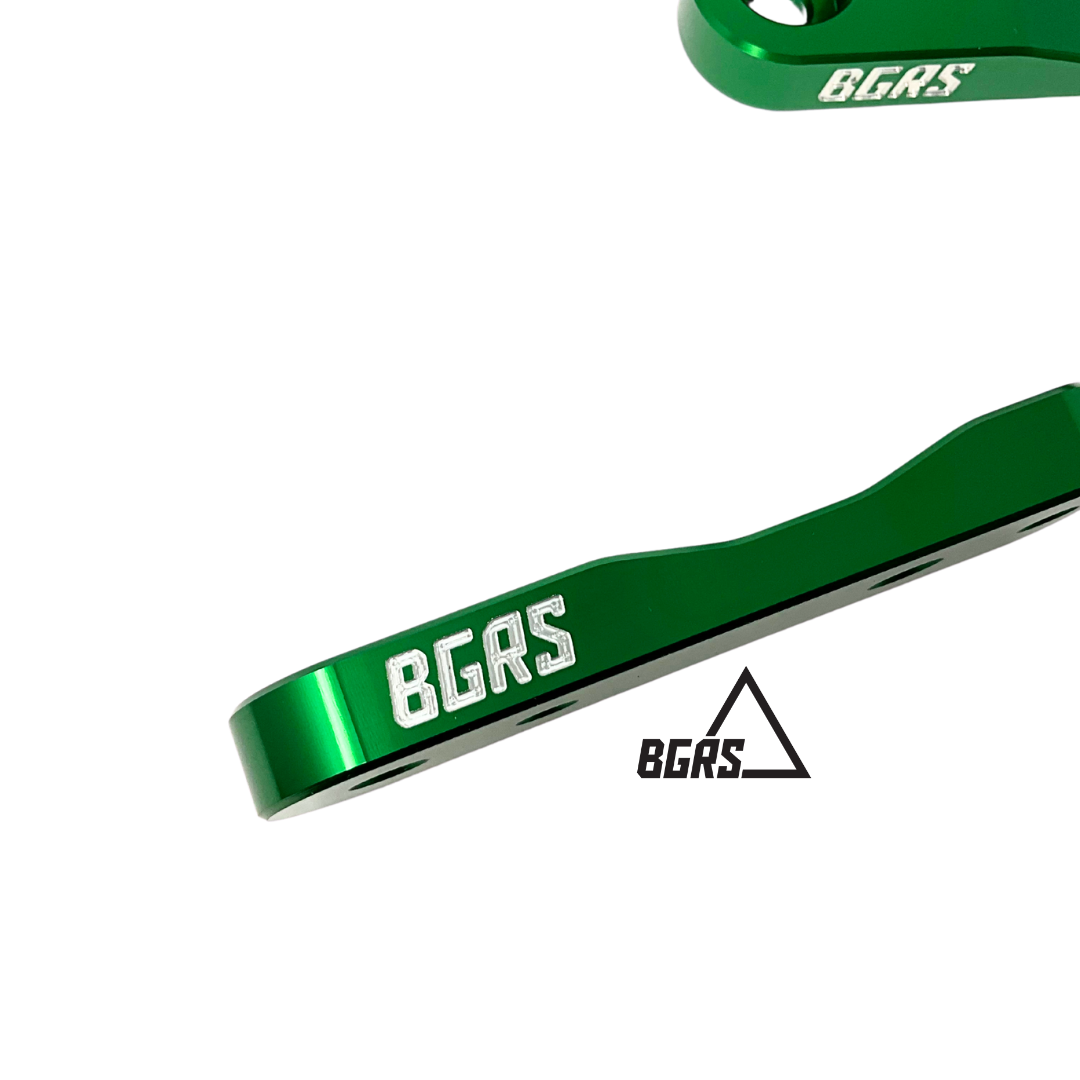

  • Made of 6061-T6 aluminum and anodized in signature BGRS green
  • Designed and tested in collaboration with Annex Suspension
  • Fixes sway bar binding caused by factory geometry
  • Improves rear grip and rotation
  • Verified results from ABA track testing on both 1st and 2nd gen chassis
  • Easy installation—no alignment required
  • Ideal for track days and spirited backroad driving
  • Recommended pairing with Annex coilovers, Cusco rear sway bar, or lower control arms—all available at BGRS
--------------------------------------------------------------

SPECIFICATIONS

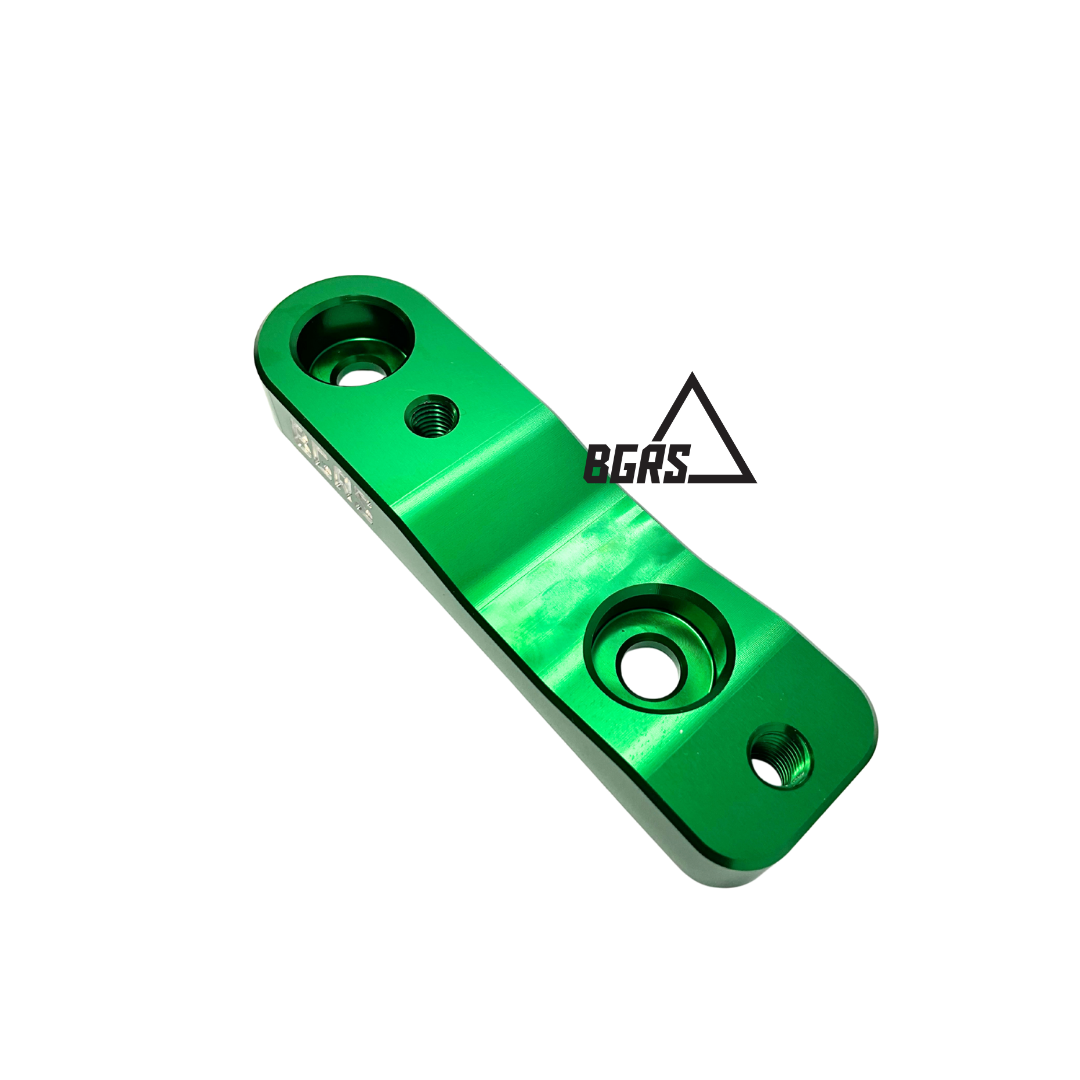

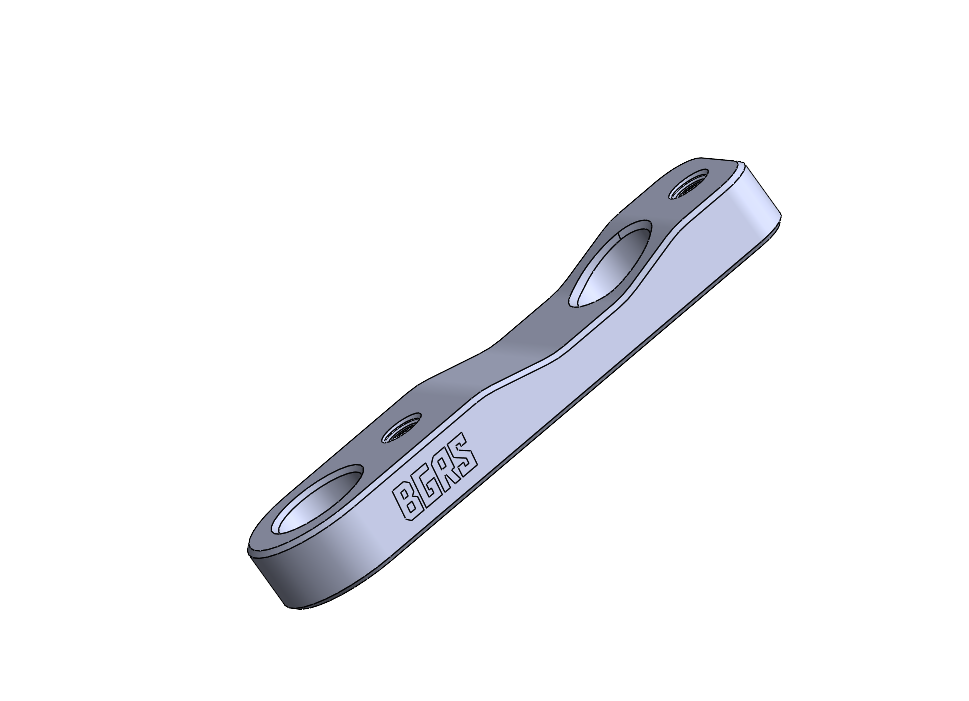

  • Precision-designed brackets for ZN6/Z8 chassis

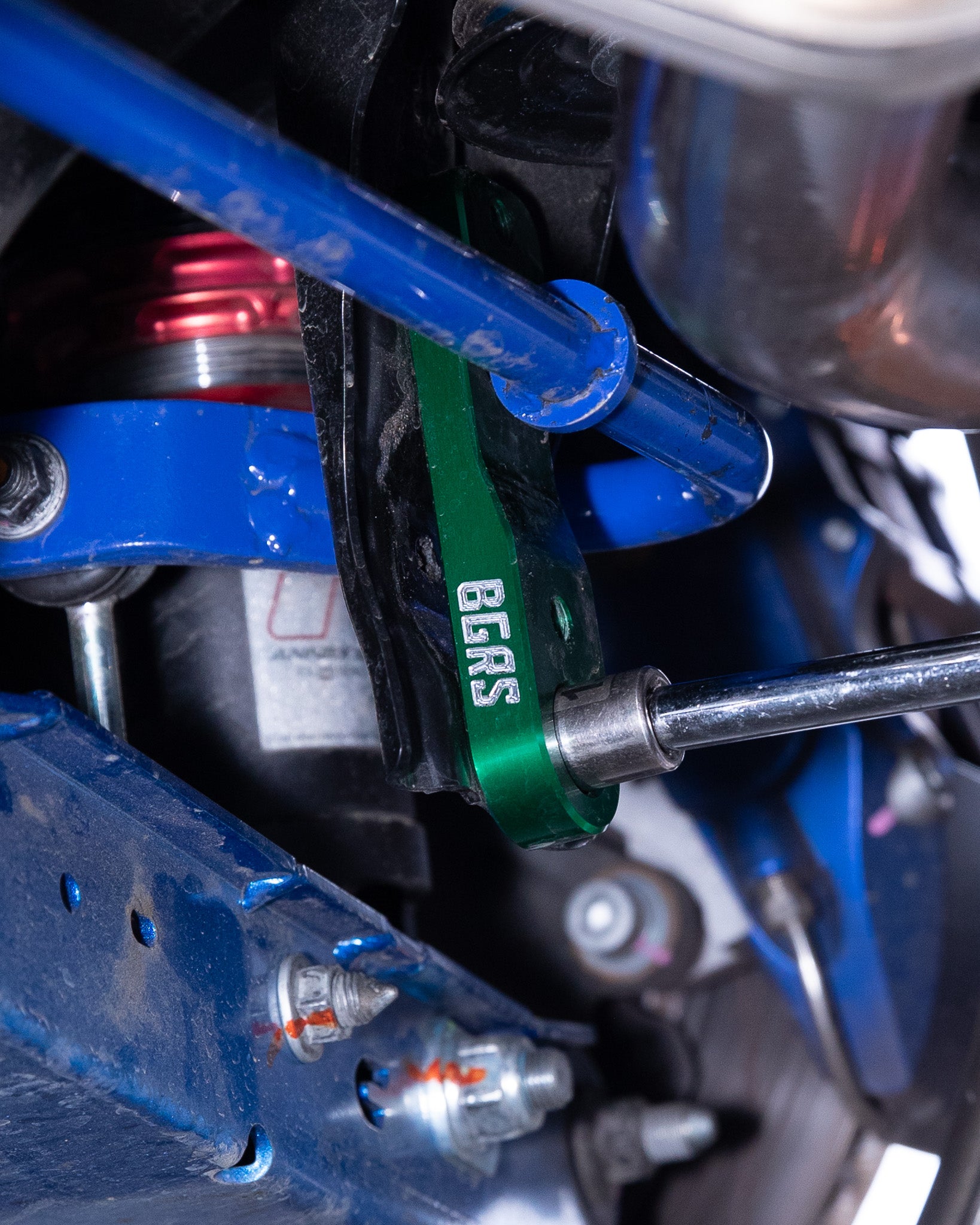

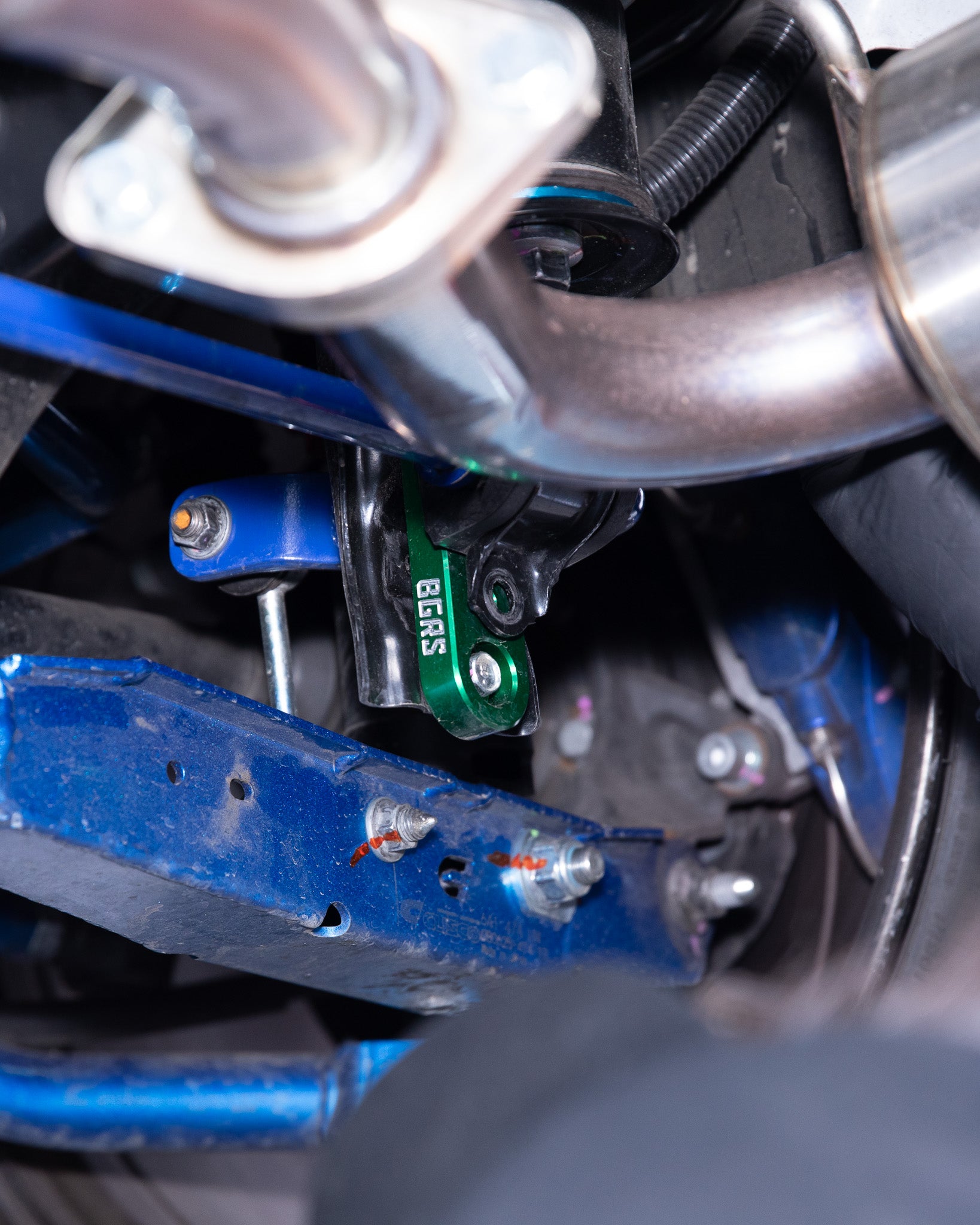

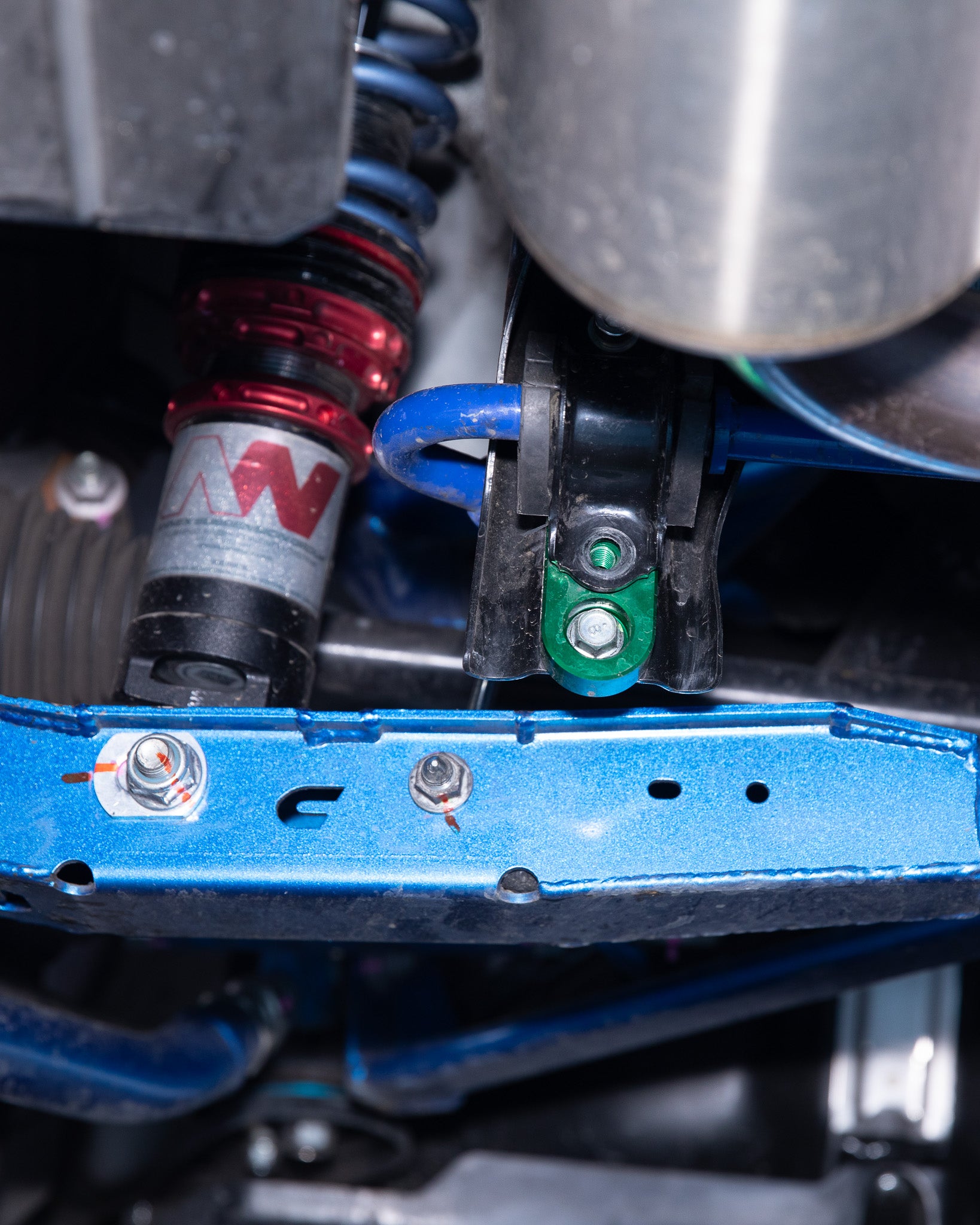

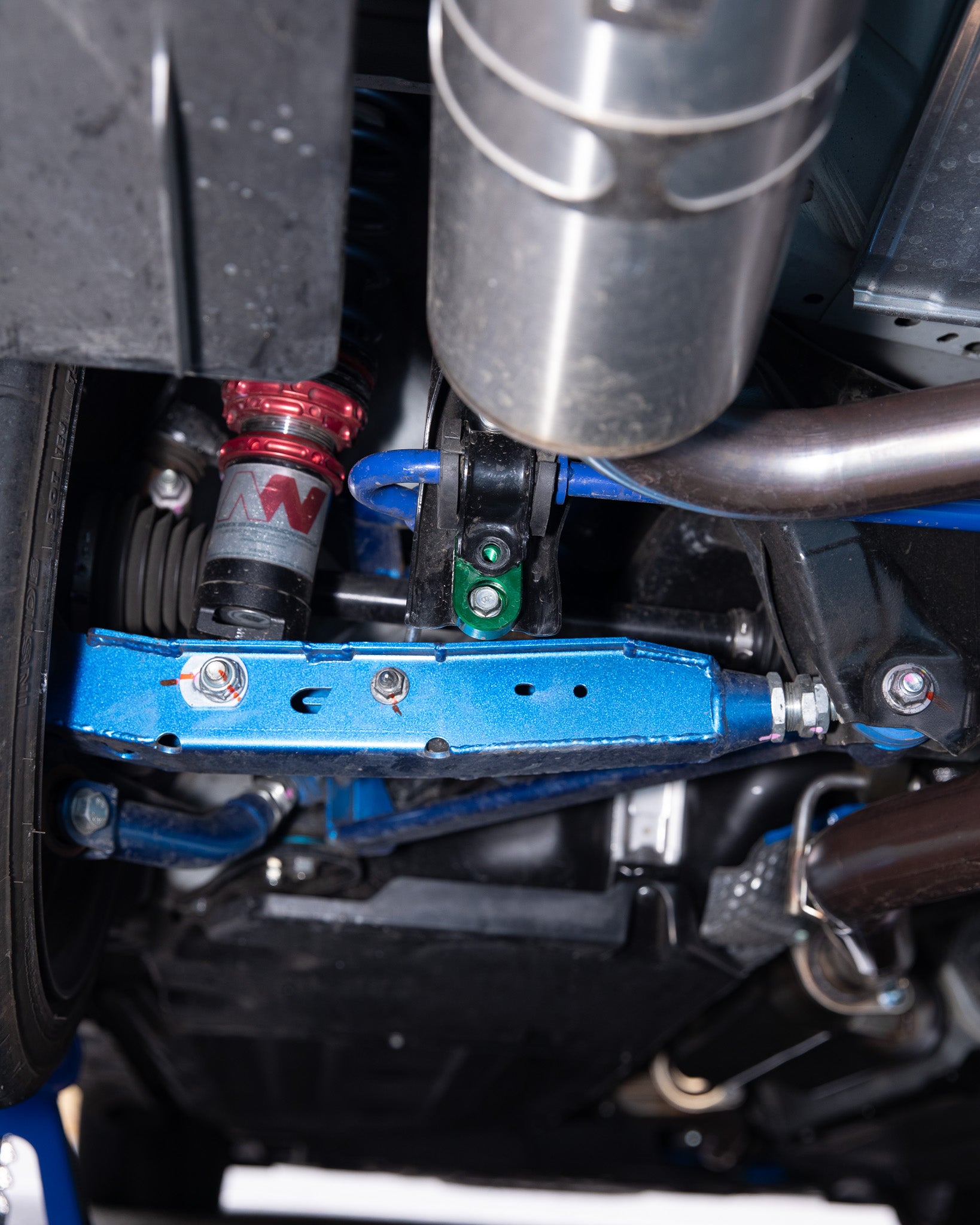

  • Lowers sway bar mounting point to correct bar angle and increase articulation
  • No permanent modification required
--------------------------------------------------------------

SCIENCE

The factory rear suspension geometry on the BRZ/GR86 chassis often forces the sway bar into a poor angle, especially on lowered cars. This can lead to binding under load, which limits suspension travel and reduces performance. The BGRS Swaybar Relocation Bracket corrects the sway bar’s orientation by raising its mounting point to a more level position. This adjustment allows the sway bar to operate in a more natural position, improving suspension articulation, reducing binding, and enhancing the car’s balance and responsiveness in corners. SCCA winner and BGRS test driver Tyler put it best: “Increases rear grip and rotation, car feels like it’s no longer fighting you during turns.

--------------------------------------------------------------

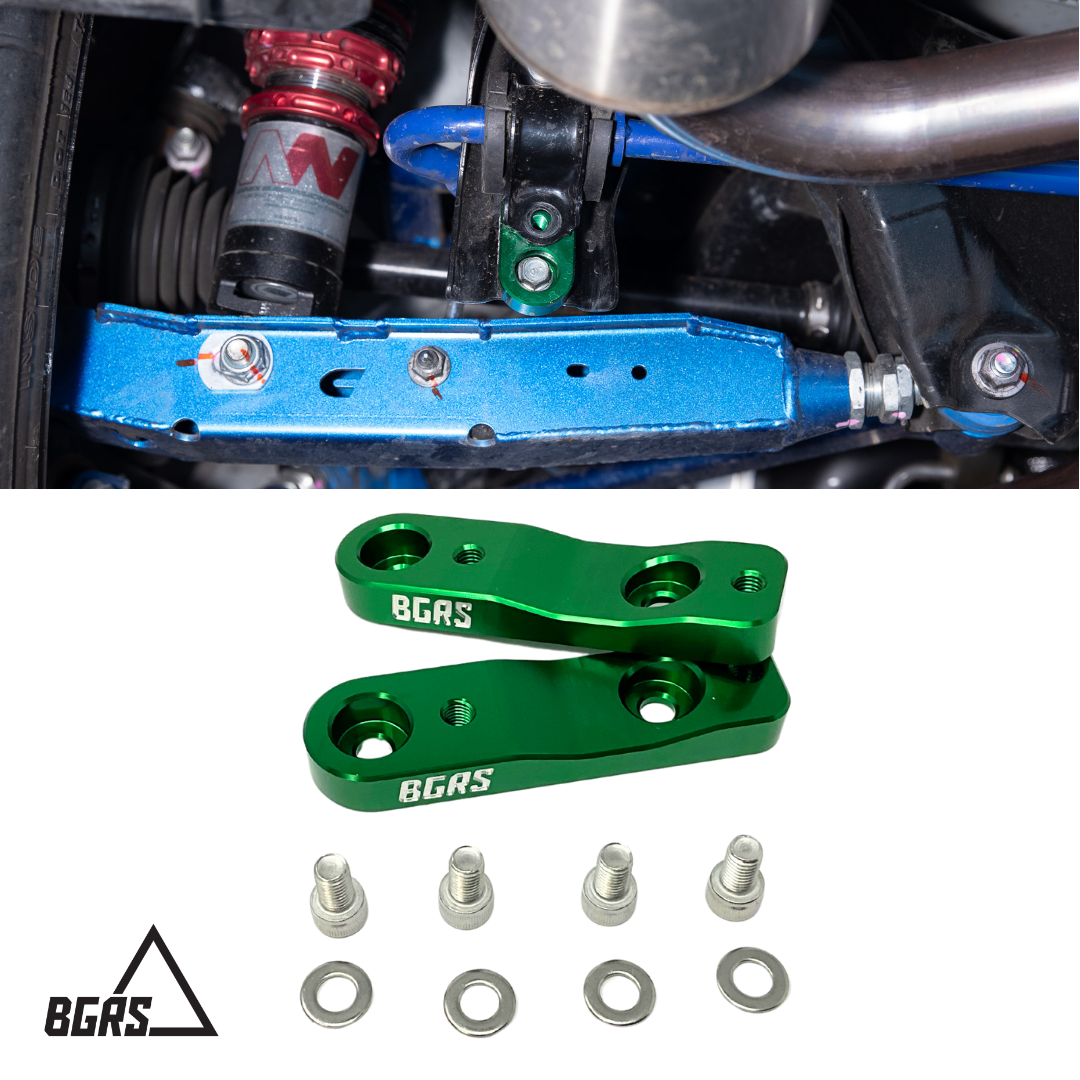

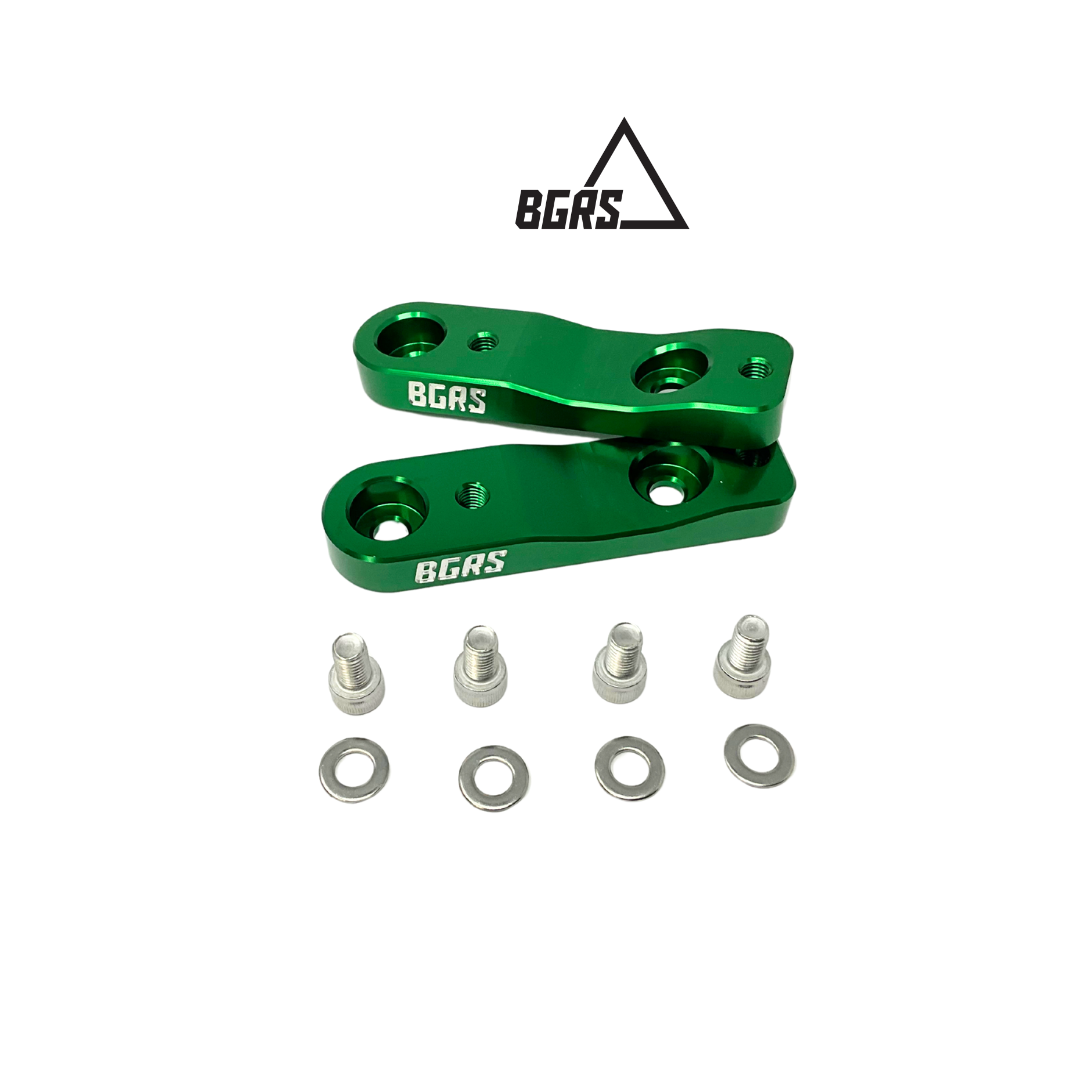

WHAT IS INCLUDED

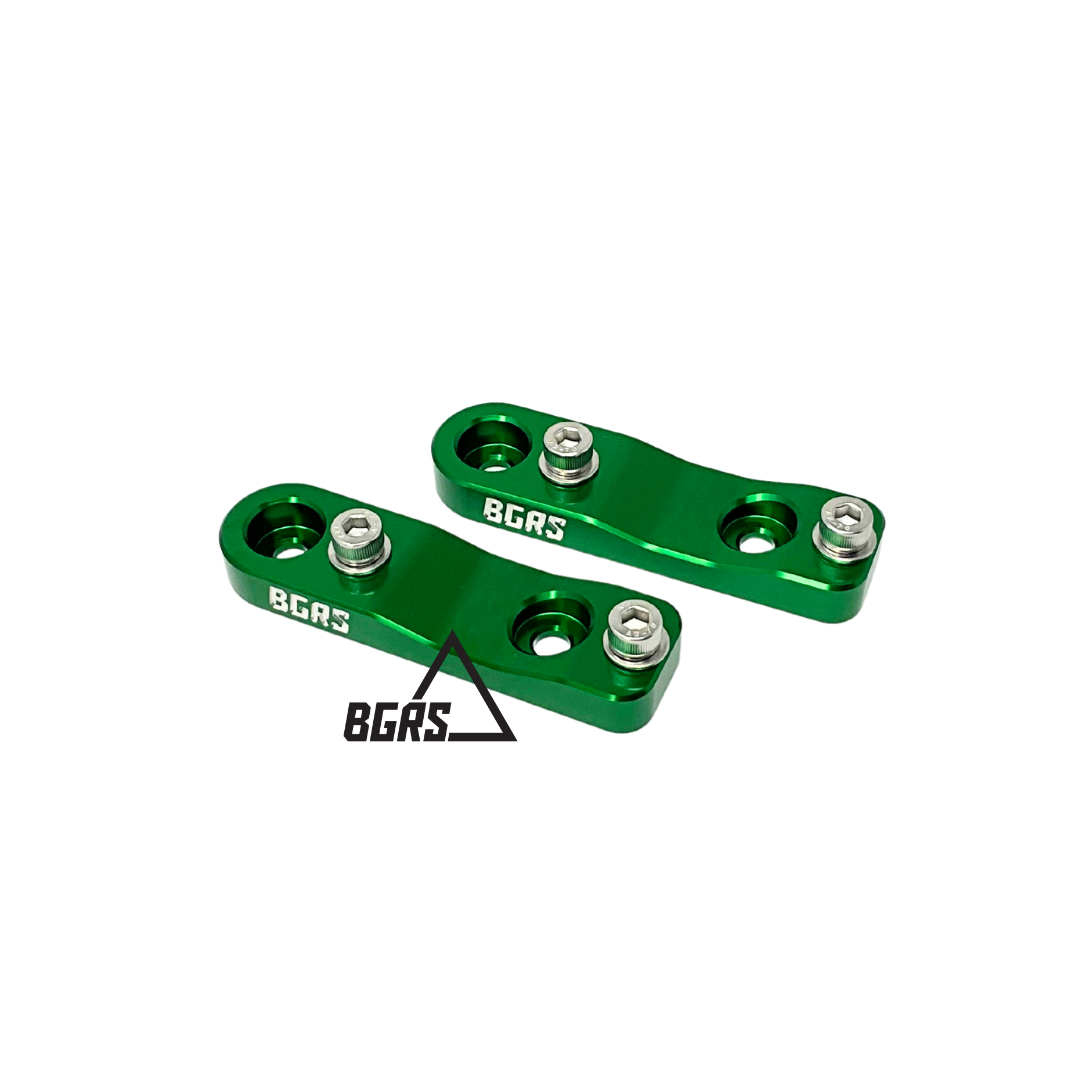

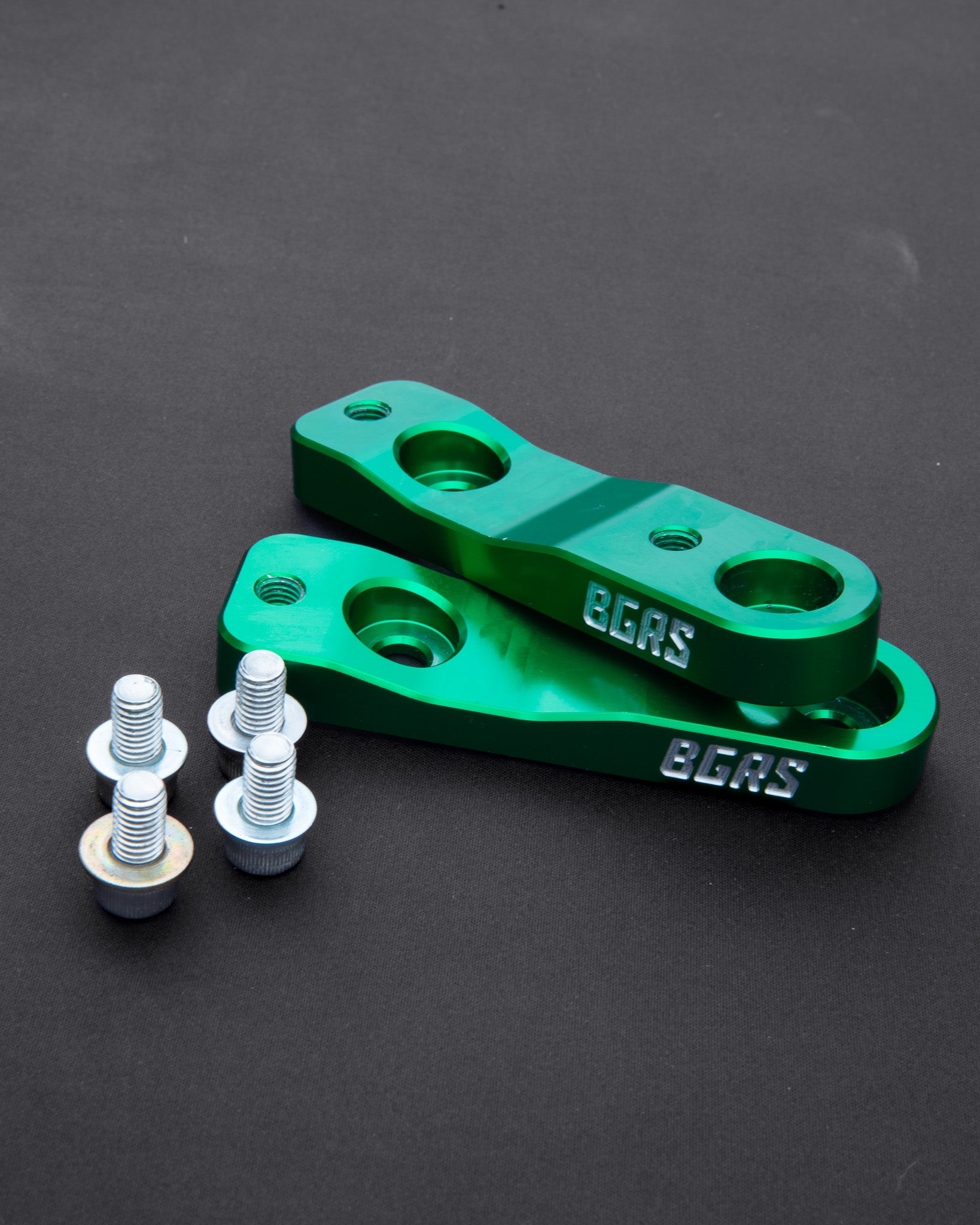

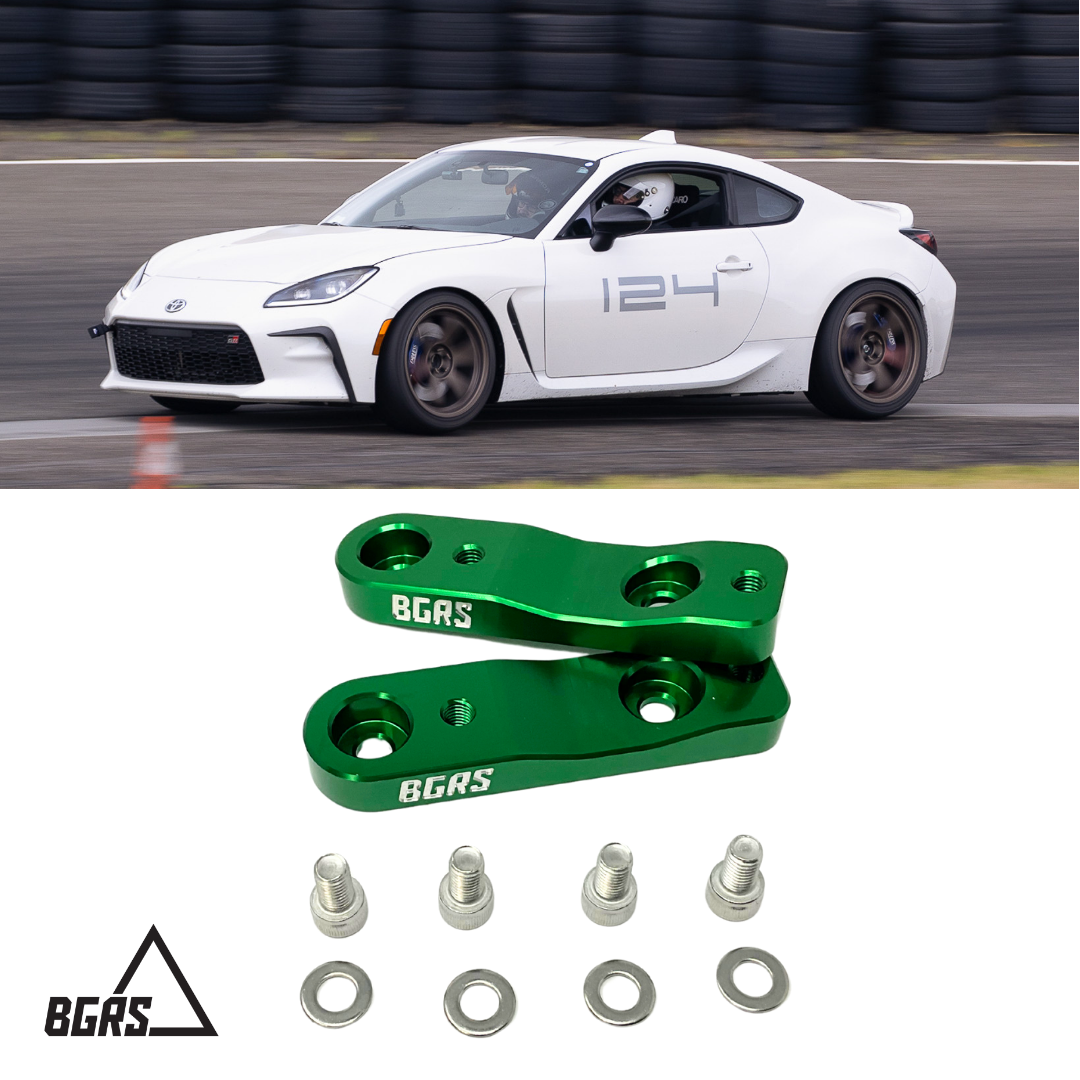

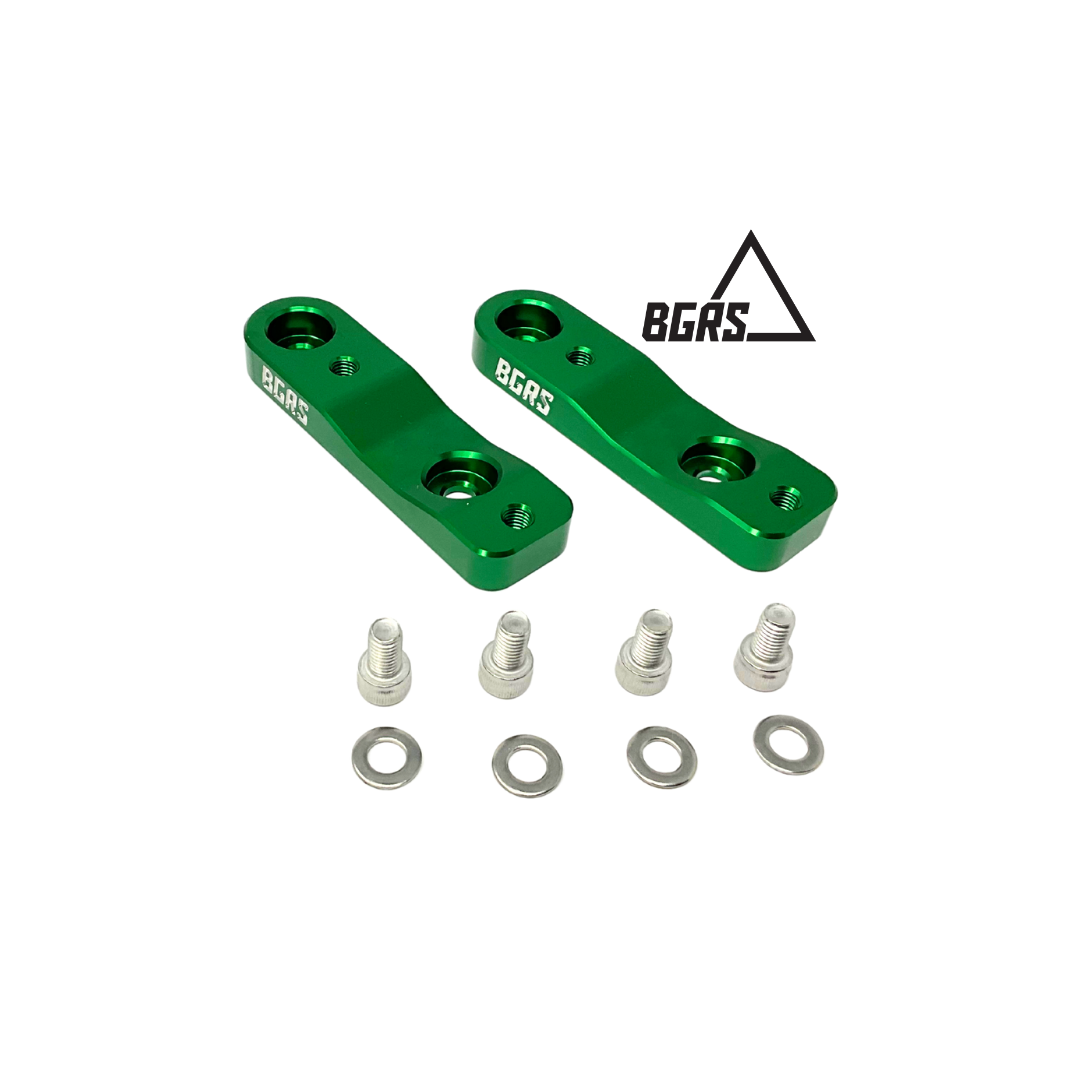

  • (2) Swaybar relocation brackets
  • Installation hardware
--------------------------------------------------------------

FITMENT

  • 2013-2017 Subaru BRZ
  • 2017-2021 Subaru BRZ (NEED TO CONFIRM FITMENT)
  • 2013+ Scion FR-S / Toyota 86
  • 2022+ Subaru BRZ (NEED TO CONFIRM FITMENT)
  • 2022+ Toyota GR86
