Ansix Auto 2022+ BRZ/GR86 Oil Pressure Sensor CANbus Kit

Regular price $275.00
Add OBDLink MX+:

Share this part with a friend in need!


--------------------------------------------------------------

OVERVIEW

Maintaining proper oil pressure is essential for the health and longevity of your FA24 engine. From the factory, the 2022+ Subaru BRZ and Toyota GR86 only come equipped with a basic pressure switch that illuminates the cluster light when oil pressure drops to zero—offering no real-time monitoring or advanced warning. The Ansix Auto Oil Pressure Sensor CANbus Kit solves this critical gap by providing both advanced oil pressure warnings and live oil pressure data logging, all without modifying OEM wiring. Installation takes just 15 minutes, and a genuine OEM oil pressure sensor is included.

RaceChrono configuration file

AIM Configuration file

--------------------------------------------------------------

FEATURES

  • Advanced oil pressure warning with FA24-specific engine speed–dependent limits
  • Oil pressure data displayed and logged via CANbus
  • Plug-and-play install—no cutting, splicing, or soldering required
  • Works with CANbus logging systems such as Race Capture, AIM, and OBDlink
  • Display data on a race dash or review post-session logs
  • Genuine stainless steel Japanese-made OEM 10 Bar (145 PSI) pressure sensor
  • Built-in OBD Port CAN adapter (no additional harness needed)
--------------------------------------------------------------

SPECIFICATIONS

  • Pressure Sensor Range: 0–10 Bar (145 PSI)
  • Sensor Type: OEM stainless steel, vibration- and heat-resistant
  • Data Output: Native CANbus integration
  • Install Time: ~15 minutes
  • No wiring modifications required
--------------------------------------------------------------

SCIENCE

The FA24 engine lacks a true oil pressure sensor, relying only on a pressure switch that provides zero early warning before damage can occur. The Ansix Auto kit uses real-world FA24 data to establish RPM-dependent oil pressure thresholds. If pressure falls below these values, the factory oil pressure warning light is triggered—alerting the driver before catastrophic failure. Simultaneously, the sensor sends precise oil pressure data to the CANbus network, enabling detailed post-session analysis and real-time monitoring via compatible devices.

--------------------------------------------------------------

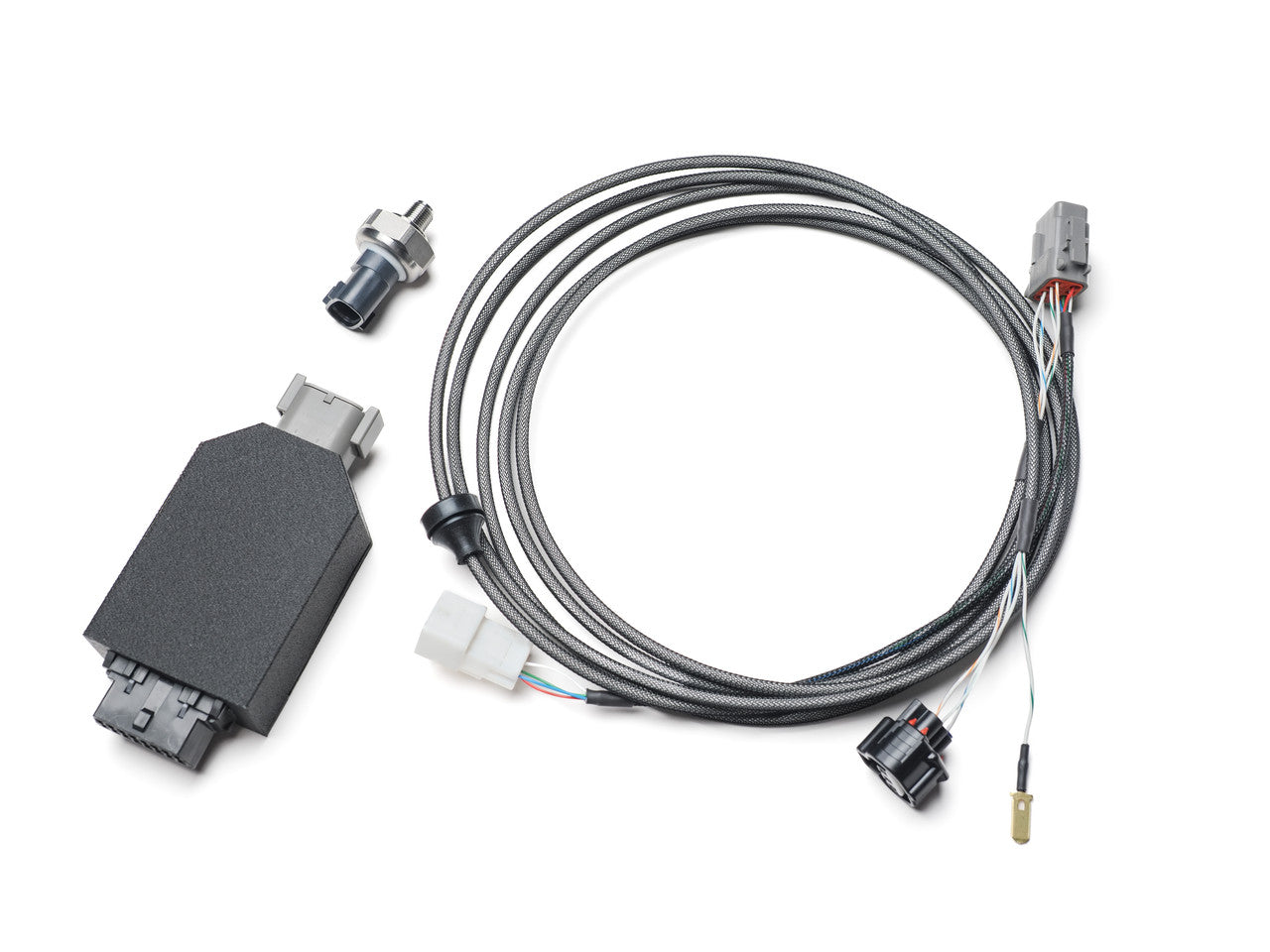

WHAT IS INCLUDED

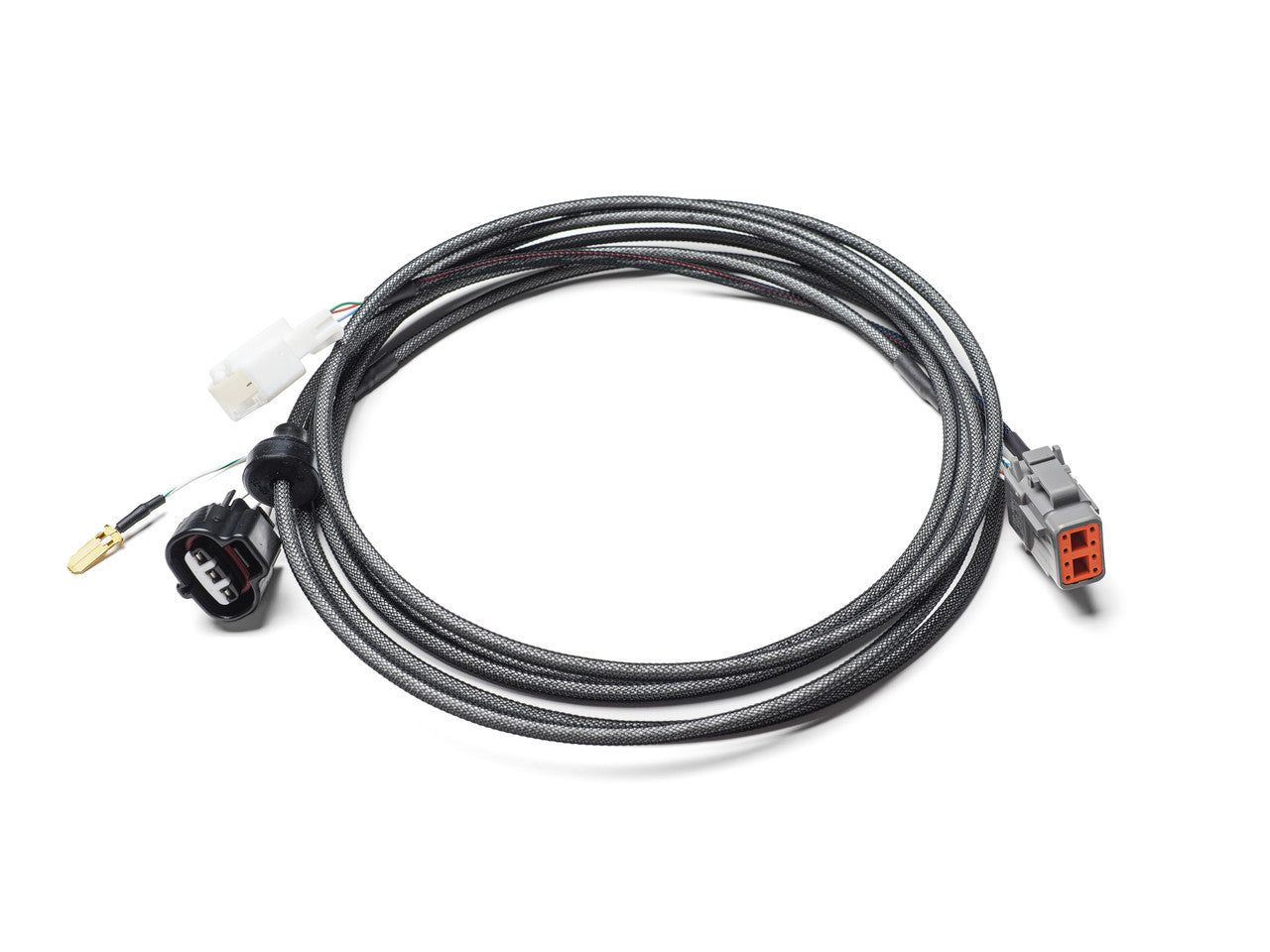

  • Ansix Auto Oil Pressure Sensor CANbus Kit

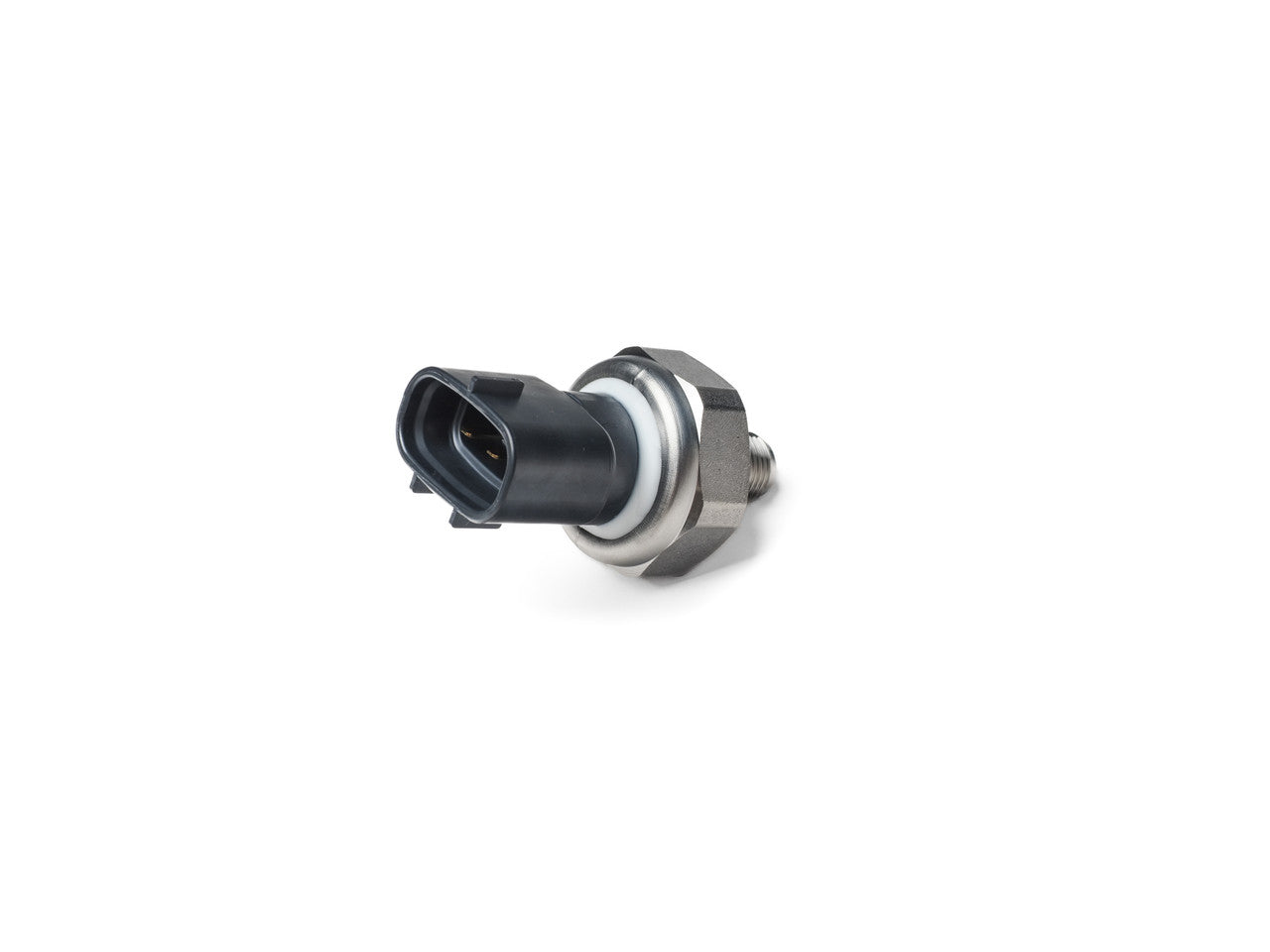

  • Genuine OEM stainless steel 10 Bar (145 PSI) oil pressure sensor

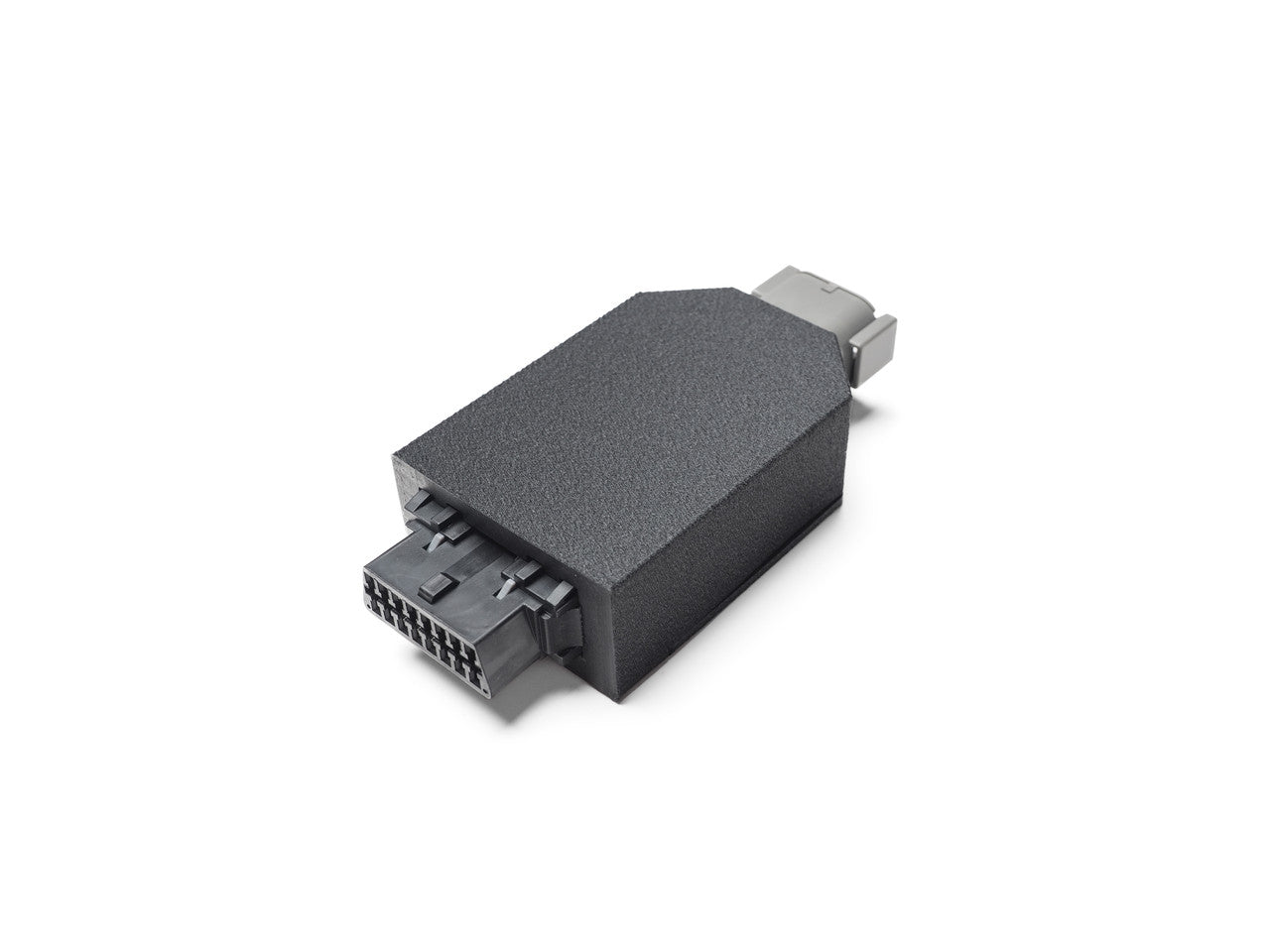

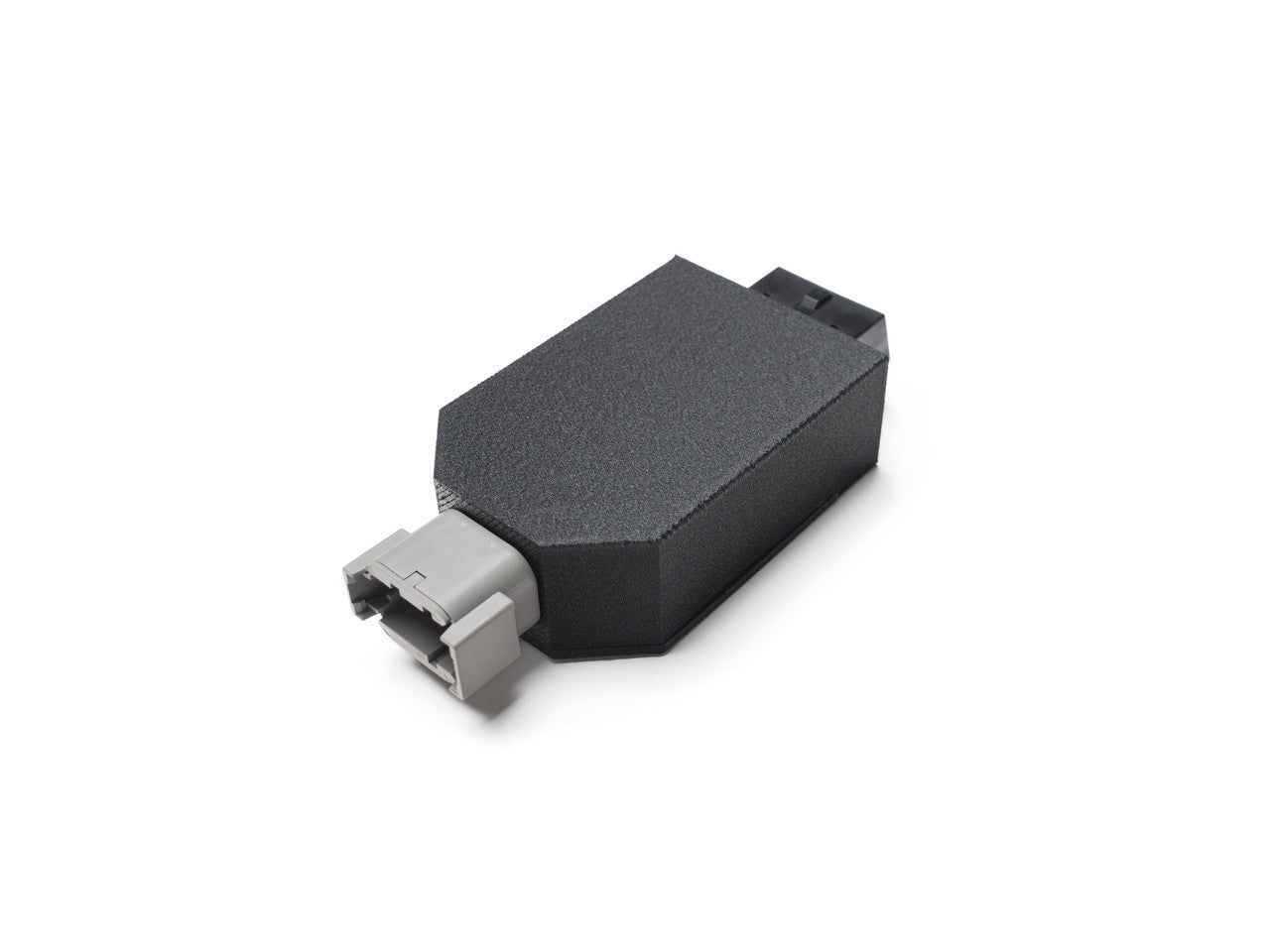

  • Integrated OBD Port CAN adapter
--------------------------------------------------------------

FITMENT

  • 2022+ Subaru BRZ (ZN8)
  • 2022+ Toyota GR86 (ZN8)
