Ansix Auto 2022+ BRZ/GR86 CANbus adapter

Regular price $60.00
Add OBDLink MX+:

Share this part with a friend in need!


--------------------------------------------------------------

OVERVIEW

The 2022+ BRZ and GR86 do not have CAN bus connected to the factory OBD2 port, limiting data acquisition capabilities. This CANbus Adapter solves that by teeing into the car’s CAN network behind the glovebox and providing a dedicated OBD2 port for fast, accurate telemetry data. Designed specifically for track enthusiasts, this adapter unlocks critical vehicle insights not available through the standard OBD2 protocol.

RaceChrono configuration file

AIM Configuration file

--------------------------------------------------------------

FEATURES

  • Adds a dedicated OBD2 connector inside the glovebox for data acquisition
  • Accesses CAN bus telemetry directly for faster, more accurate data than standard OBD2
  • Provides live inputs such as engine RPM, speed, steering angle, brake pressure, throttle position, and coolant temperature
  • Simple installation with one OEM screw and one self-tapping screw for a clean, stealthy fit
  • Does not interfere with other vehicle systems
  • Compatible with CAN-enabled devices like OBXLink MX+, RaceCapture, and similar
--------------------------------------------------------------

SPECIFICATIONS

  • Location: Connects to CAN network behind passenger-side glovebox module

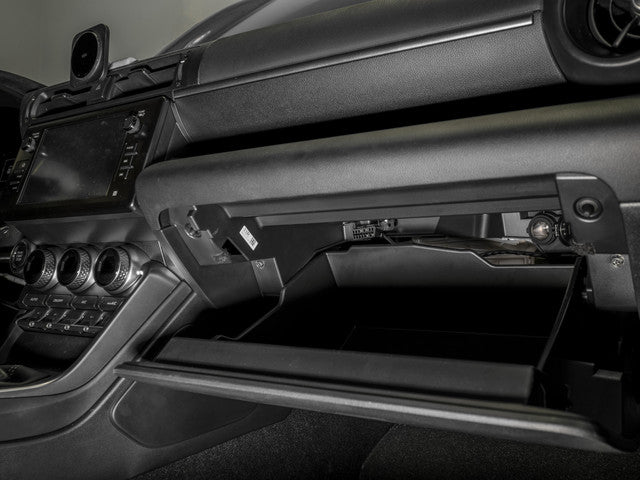

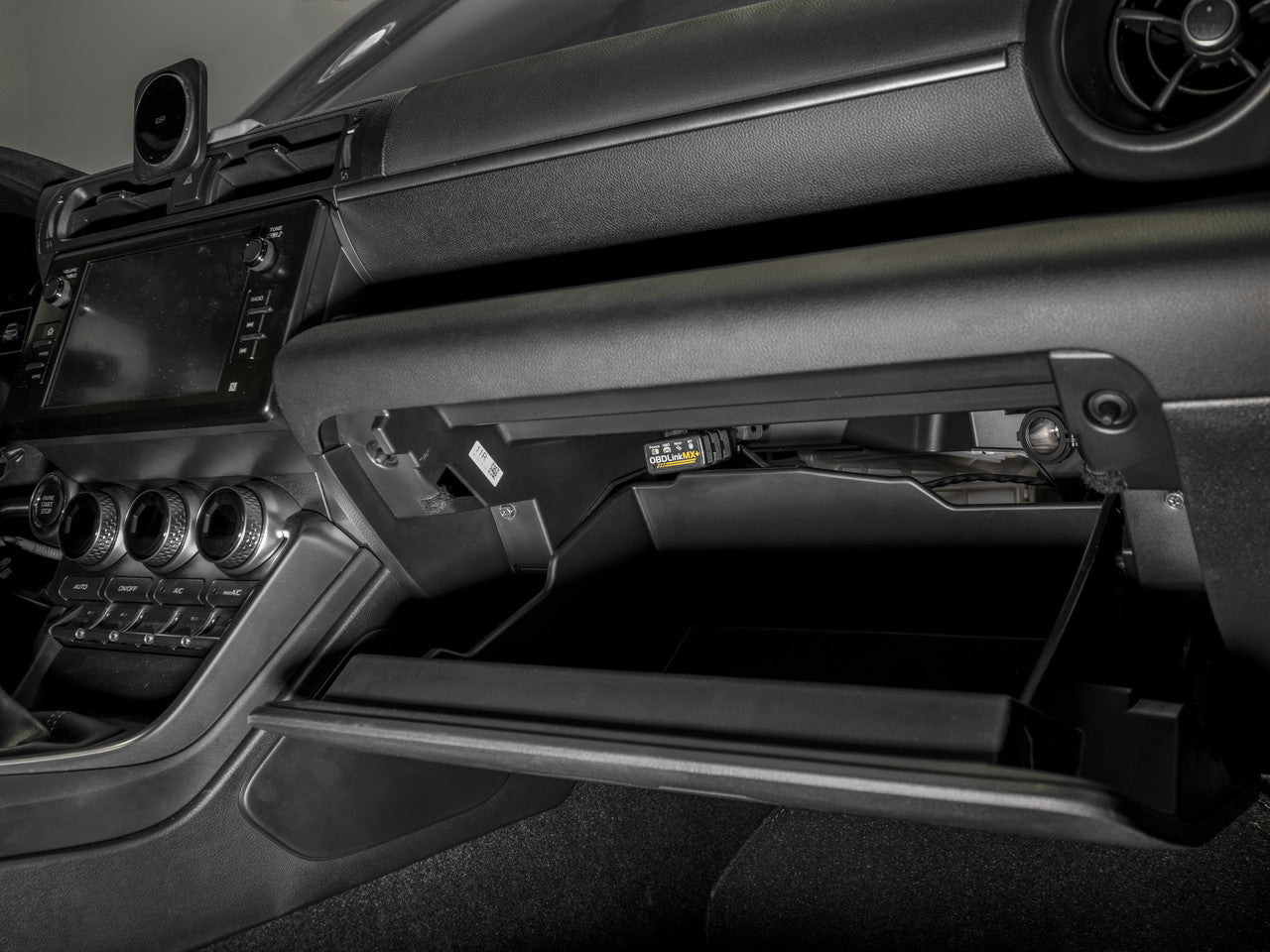

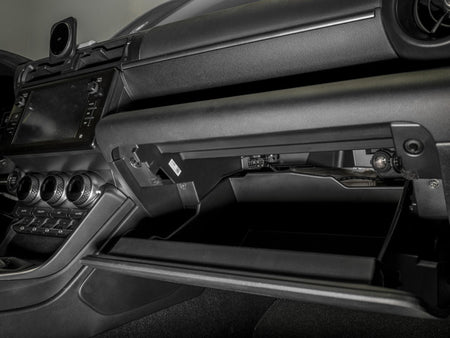

  • Connector: Dedicated OBD2 port (glovebox-mounted)
  • Protocol: CAN bus only (not standard OBD2)
  • Installation: Uses one OEM screw + one self-tapping screw
--------------------------------------------------------------

SCIENCE

Unlike the standard OBD2 port, which relies on slower protocols and misses key telemetry data, this adapter taps directly into the vehicle’s CAN bus. By accessing CAN data, you gain faster refresh rates and access to critical inputs such as steering angle and brake pressure—vital for high-resolution data logging and track analysis. The result is more accurate insights to help you optimize your driving and vehicle setup.

--------------------------------------------------------------

WHAT IS INCLUDED

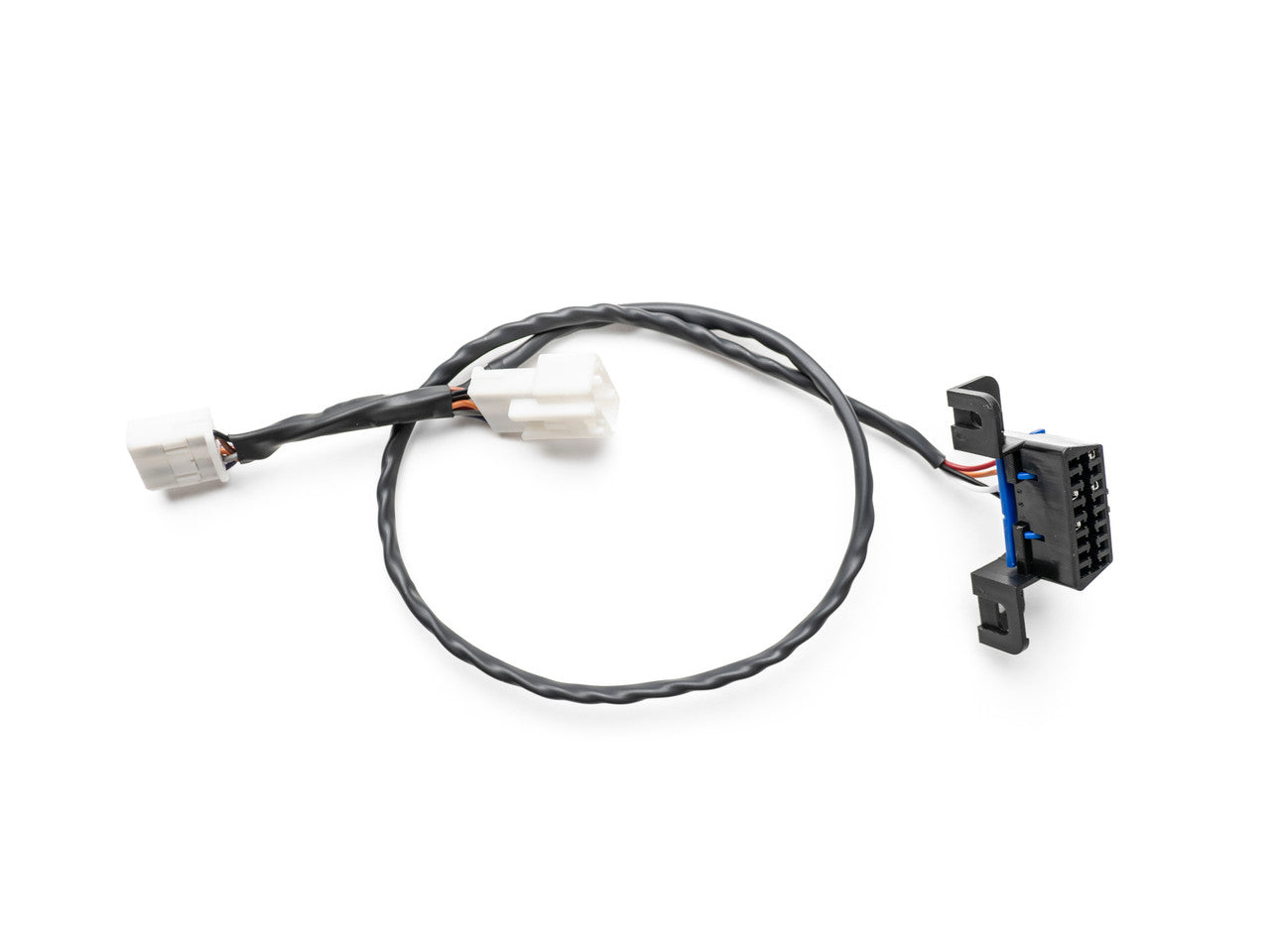

  • CANbus adapter harness
  • Mounting hardware (1x OEM screw, 1x self-tapping screw)
--------------------------------------------------------------

FITMENT

  • 2022+ Subaru BRZ (ZN8)
  • 2022+ Toyota GR86 (ZN8)
